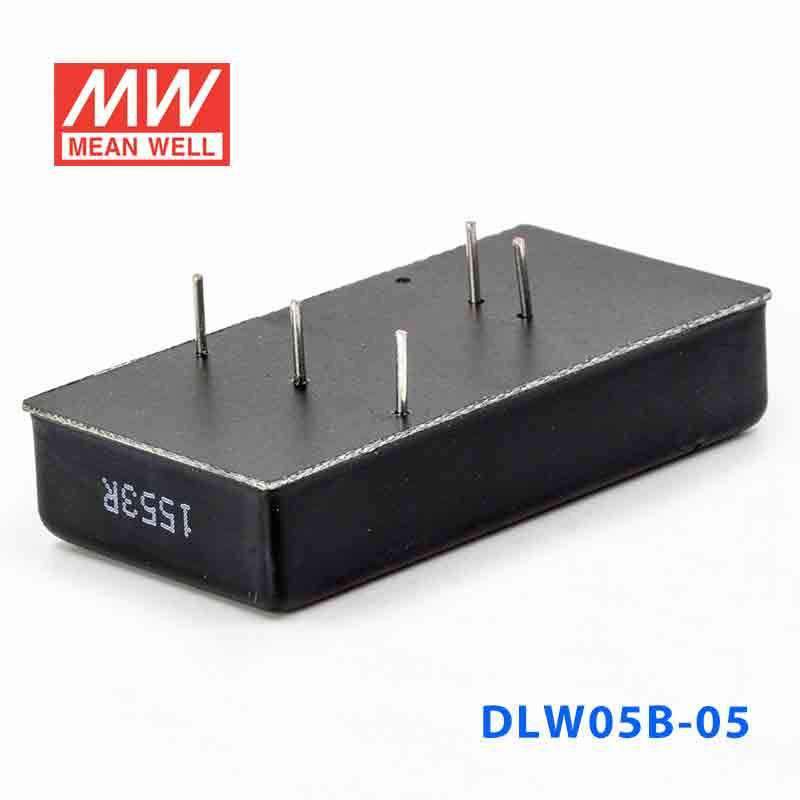

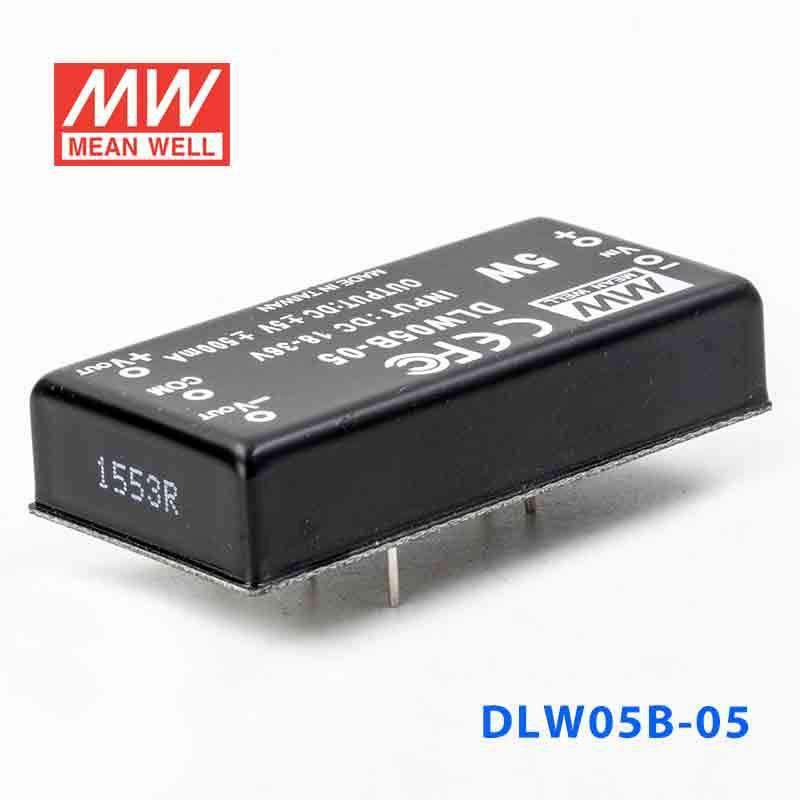

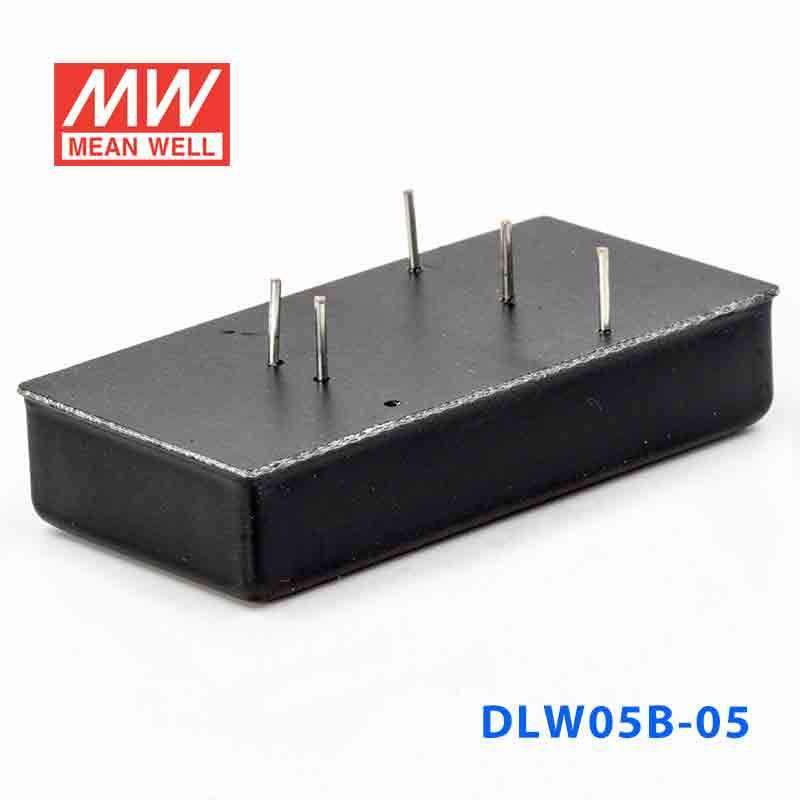

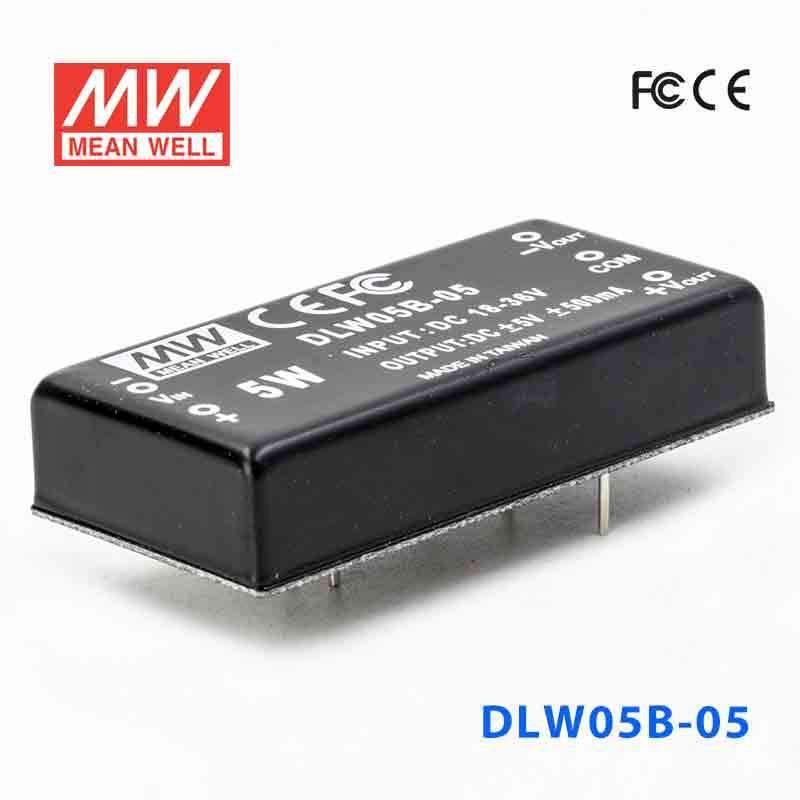

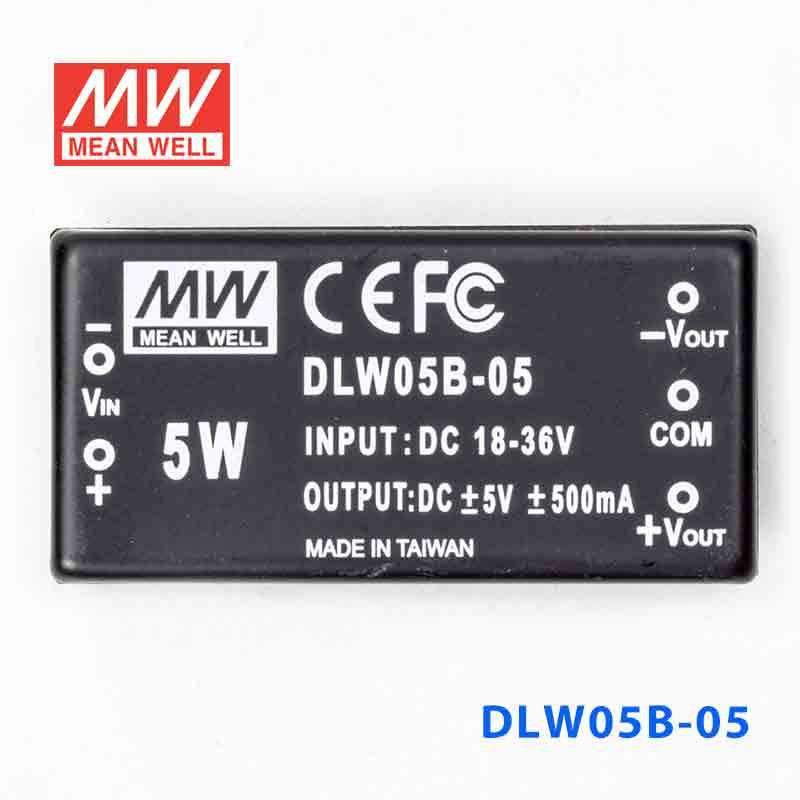

Mean Well DLW05B-05 DC-DC Converter - 5W - 18~36V in ±5V out
Description
Description
The DLW05B is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDLW Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current0.5 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DLW05B-05 in a 24V-class industrial cabinet to generate 5V for control electronics?
Yes, if the source presented to the converter is within 18-36VAC and the electronics need constant 5V output. With a 5W rating, it fits low-power control, monitoring, and interface electronics rather than heavier 5V loads.
Is the DLW05B-05 suitable for small embedded systems in automation equipment with higher AC input ranges?
It is a fit for embedded systems that need 5V constant voltage when the available input falls in the 18-36VAC range. The small 50.8 × 25.4 × 11.27 mm footprint helps when space is limited inside automation equipment.
Can this model be used for industrial monitoring nodes or interface boards that run on 5V?
Yes, when the monitoring node or interface board needs 5V constant voltage and stays within the 5W output rating. The broader 18-36VAC input range makes it more appropriate where the upstream AC source is higher than the A-series input range.
Can the DLW05B-05 be used in outdoor control boxes?
Its stated operating range is -25°C to +71°C, but the provided specifications do not give an IP rating. Without an IP rating, it is safer to treat it as suitable for protected indoor equipment or an enclosure that handles moisture and dust protection.
What changes across the DLW05B output options?
The DLW05B family keeps the same 5W power level, 18-36VAC input range, constant-voltage operation, 50.8 × 25.4 × 11.27 mm size, 0.032 kg weight, and -25°C to +71°C operating temperature. The output choices are DLW05B-05 at 5V and 500A, DLW05B-12 at 12V and 208A, and DLW05B-15 at 15V and 167A.
Other DLW05 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DLW05C-15 DC-DC Converter - 5W - 36~72V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05C-12 DC-DC Converter - 5W - 36~72V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05C-05 DC-DC Converter - 5W - 36~72V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05B-15 DC-DC Converter - 5W - 18~36V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05B-12 DC-DC Converter - 5W - 18~36V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05A-15 DC-DC Converter - 5W - 9~18V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05A-12 DC-DC Converter - 5W - 9~18V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05A-05 DC-DC Converter - 5W - 9~18V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
