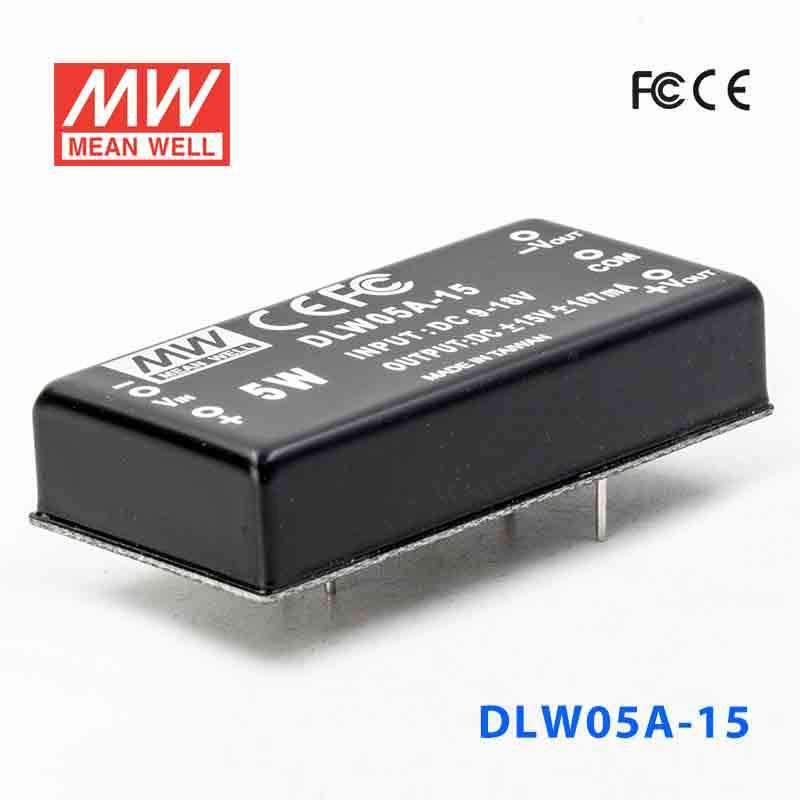

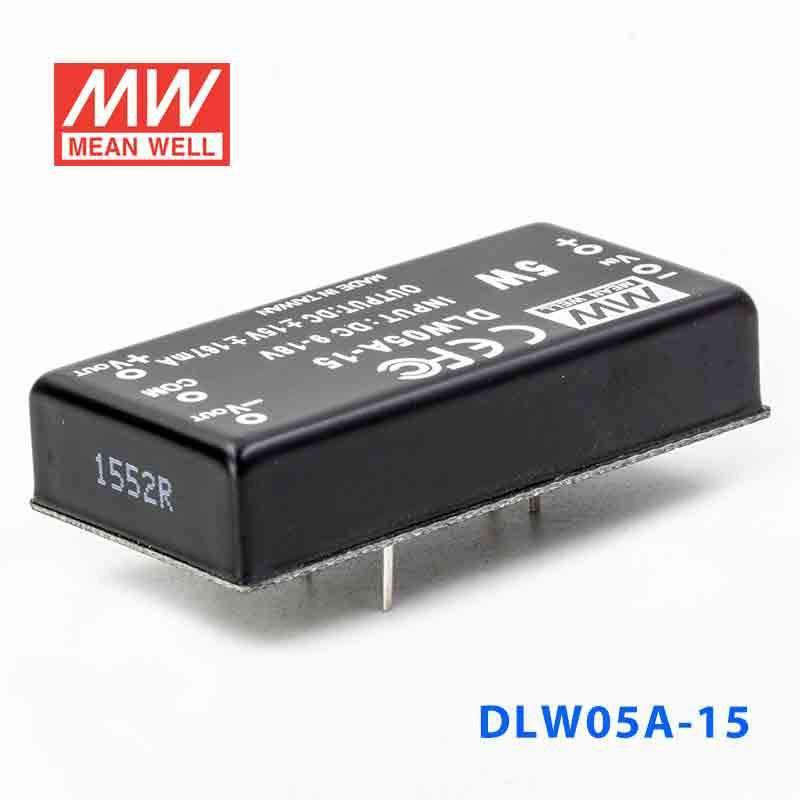

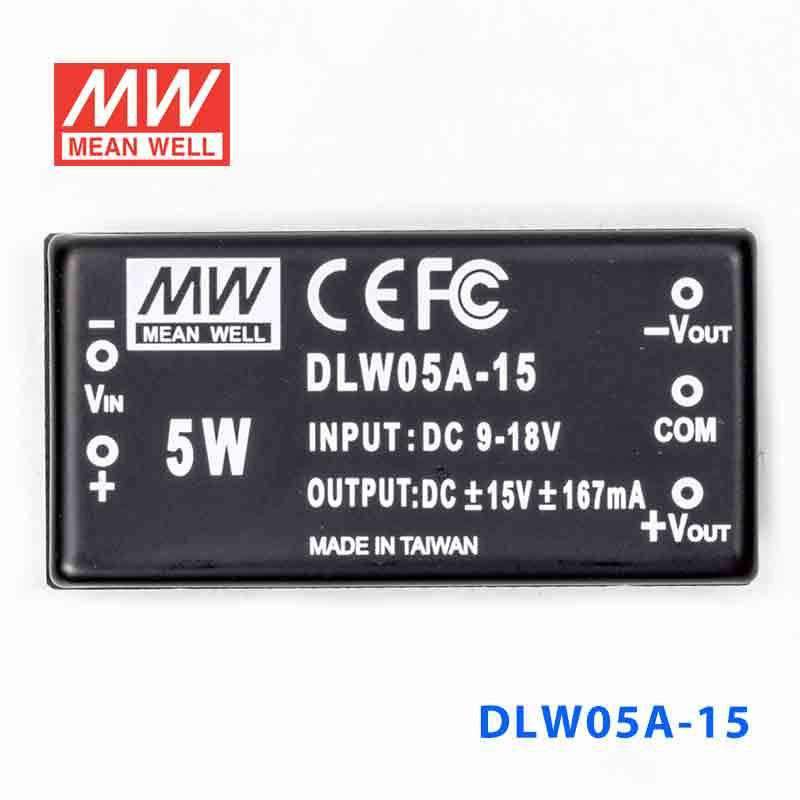

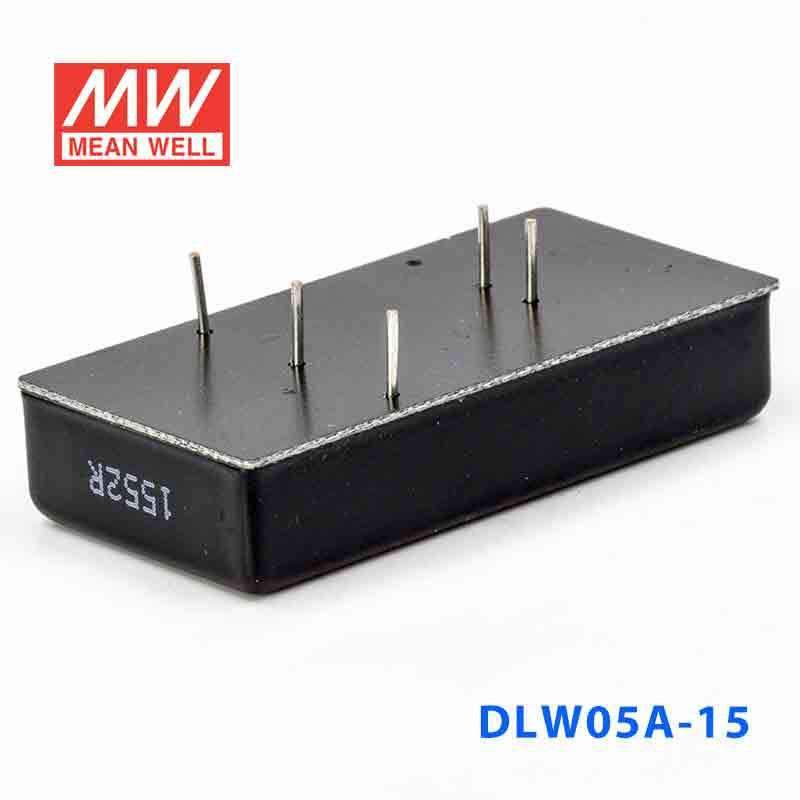

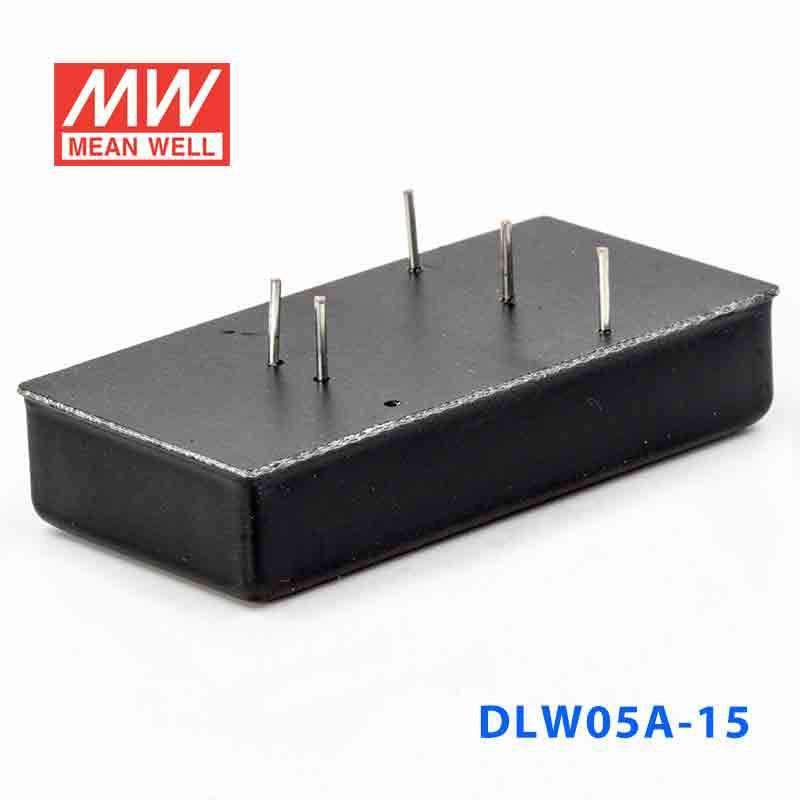

Mean Well DLW05A-15 DC-DC Converter - 5W - 9~18V in ±15V out
Description
Description
The DLW05A is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDLW Series
-
Power Rating5 Watt
-
Output Voltage15 Volt
-
Rated Current0.16 Ampere
-
Input Voltage9V~18V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DLW05A-15 for low-power analog or instrumentation circuits that need 15V?
Yes, if the circuit requires constant 15V output and the available source to the converter is within 9-18VAC. Its 5W rating makes it suitable for low-power analog, measurement, or interface electronics rather than larger 15V loads.
Is this a good option for 15V embedded or industrial test electronics inside equipment?
It can be, provided the electronics need 15V constant voltage and the total demand stays within 5W. The compact 50.8 × 25.4 × 11.27 mm package also helps in test fixtures or dense control assemblies.
Can the DLW05A-15 power small 15V control or sensing modules in automation hardware?
Yes, for small control or sensing modules that need a fixed 15V rail from a 9-18VAC source. This model is better matched to auxiliary electronics than to high-power 15V devices because its output is limited to 5W.
Is the DLW05A-15 suitable for exposed outdoor environments?
The temperature specification is -25°C to +71°C, but the listed data does not include any IP rating. That means it should be treated as a converter for protected indoor equipment or a housing that supplies the needed environmental protection.
How do I choose between DLW05A-05, DLW05A-12, and DLW05A-15?
All three share 5W output power, 9-18VAC input, constant-voltage operation, 50.8 × 25.4 × 11.27 mm dimensions, 0.032 kg weight, and a -25°C to +71°C operating range. The selection point is output rating: 5V and 500A on DLW05A-05, 12V and 208A on DLW05A-12, or 15V and 167A on DLW05A-15.
Other DLW05 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DLW05C-15 DC-DC Converter - 5W - 36~72V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05C-12 DC-DC Converter - 5W - 36~72V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05C-05 DC-DC Converter - 5W - 36~72V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05B-15 DC-DC Converter - 5W - 18~36V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05B-12 DC-DC Converter - 5W - 18~36V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05B-05 DC-DC Converter - 5W - 18~36V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05A-12 DC-DC Converter - 5W - 9~18V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05A-05 DC-DC Converter - 5W - 9~18V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
