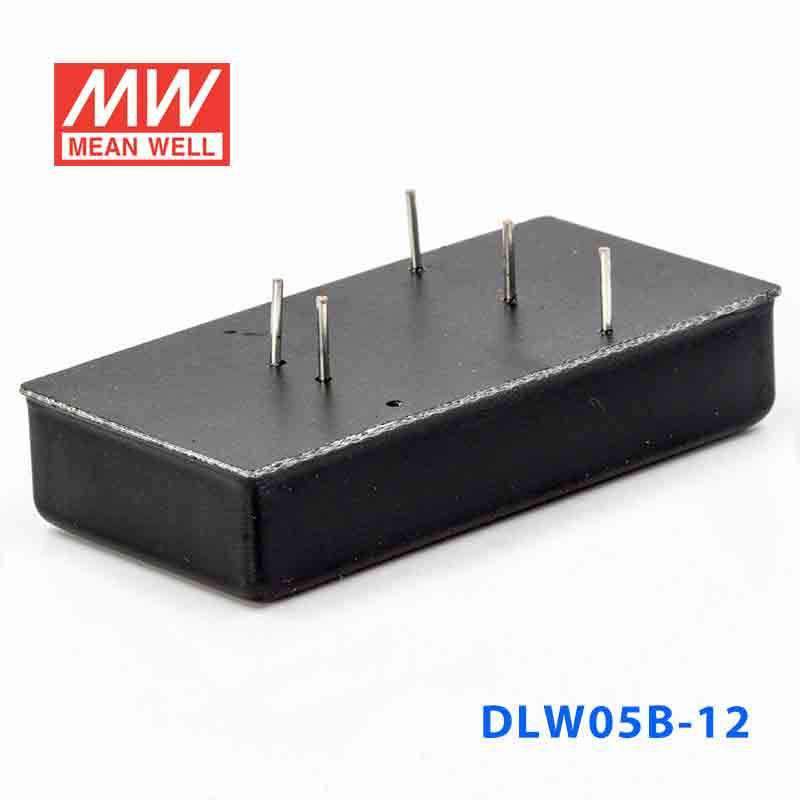

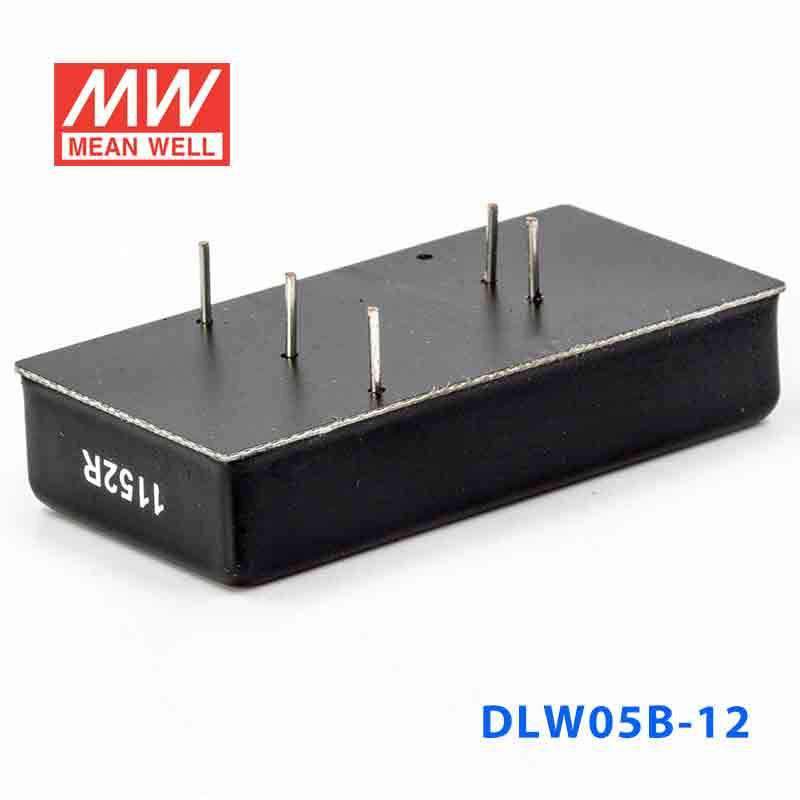

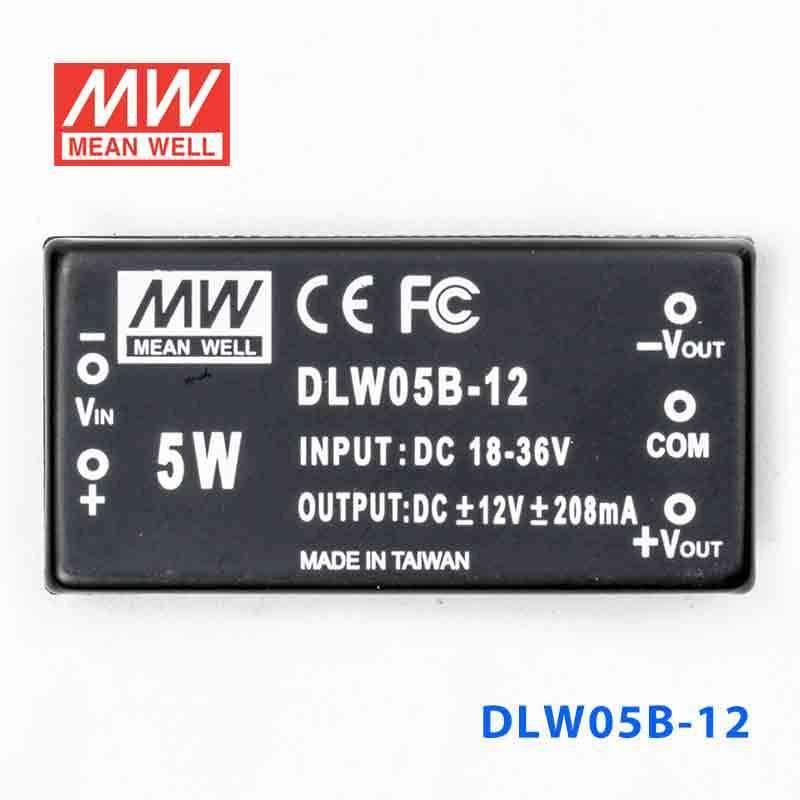

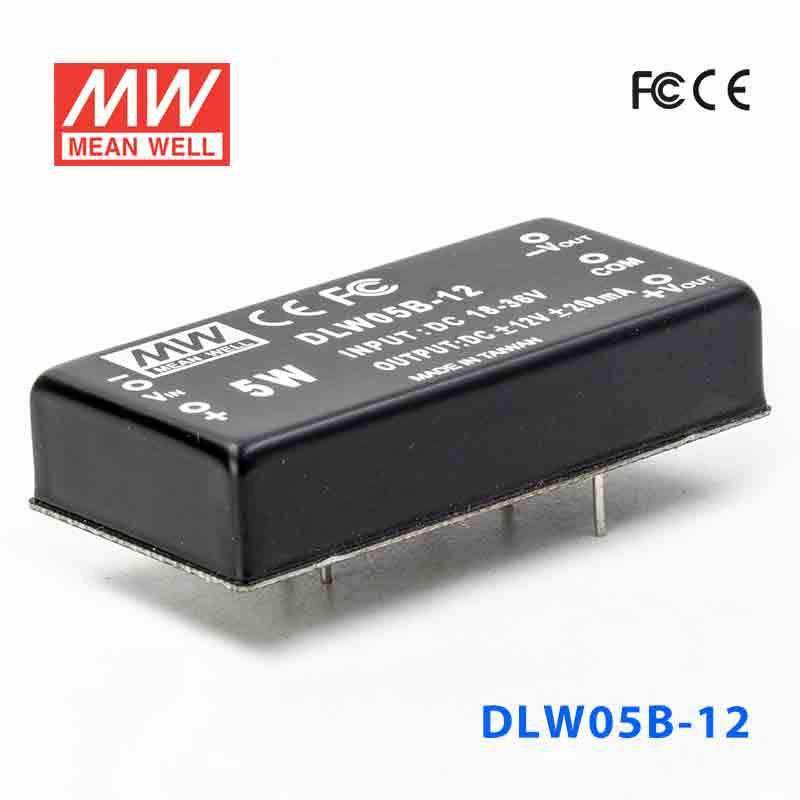

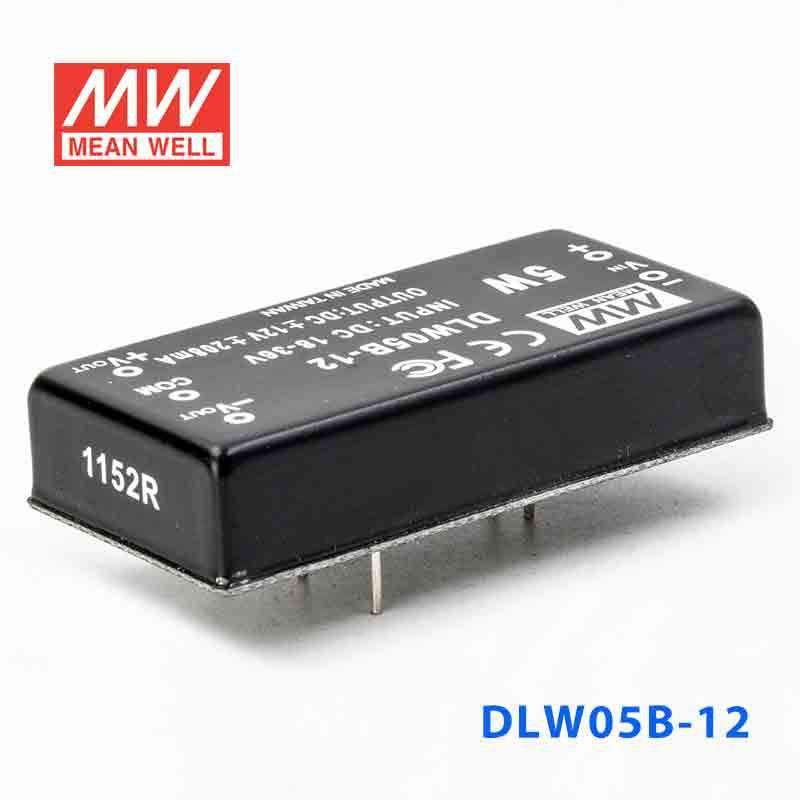

Mean Well DLW05B-12 DC-DC Converter - 5W - 18~36V in ±12V out
Description
Description
The DLW05B is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDLW Series
-
Power Rating5 Watt
-
Output Voltage12 Volt
-
Rated Current0.20 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DLW05B-12 for 12V signal, alarm, or interface electronics in a higher-input automation system?
Yes, if those electronics need constant 12V output and the source feeding the converter is within 18-36VAC. Its 5W rating makes it appropriate for lower-power interface and control functions rather than larger 12V loads.
Is the DLW05B-12 suitable for compact industrial instrumentation that expects a 12V rail?
It can be used for compact instrumentation or embedded electronics that require a regulated 12V output and stay within 5W. The 50.8 × 25.4 × 11.27 mm housing and 0.032 kg weight help when mechanical space is tight.
Can this converter support 12V auxiliary electronics in control equipment with 18-36VAC available?
Yes, that is the kind of operating window this model is built around, since its input range is 18-36VAC and its output mode is constant voltage at 12V. It is best applied to auxiliary electronics and low-power control sections that fit within 5W.
Is the DLW05B-12 designed for indoor or outdoor use?
The unit is specified for -25°C to +71°C operation, but no IP rating is included in the product data provided here. That points to use in protected indoor equipment or inside an enclosure rather than direct outdoor exposure.
How does the DLW05B-12 compare with DLW05B-05 and DLW05B-15?
All three B-series models share 5W output power, 18-36VAC input, constant-voltage operation, 50.8 × 25.4 × 11.27 mm dimensions, 0.032 kg weight, and a -25°C to +71°C operating range. The series outputs are 5V and 500A for DLW05B-05, 12V and 208A for DLW05B-12, and 15V and 167A for DLW05B-15.
Other DLW05 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DLW05C-15 DC-DC Converter - 5W - 36~72V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05C-12 DC-DC Converter - 5W - 36~72V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05C-05 DC-DC Converter - 5W - 36~72V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05B-15 DC-DC Converter - 5W - 18~36V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05B-05 DC-DC Converter - 5W - 18~36V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05A-15 DC-DC Converter - 5W - 9~18V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05A-12 DC-DC Converter - 5W - 9~18V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05A-05 DC-DC Converter - 5W - 9~18V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
