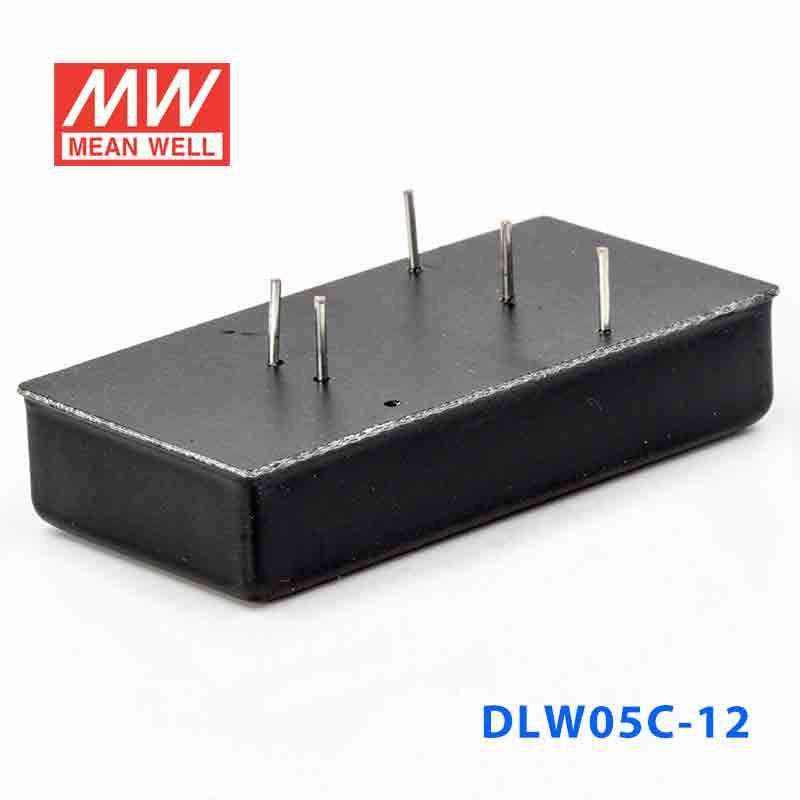

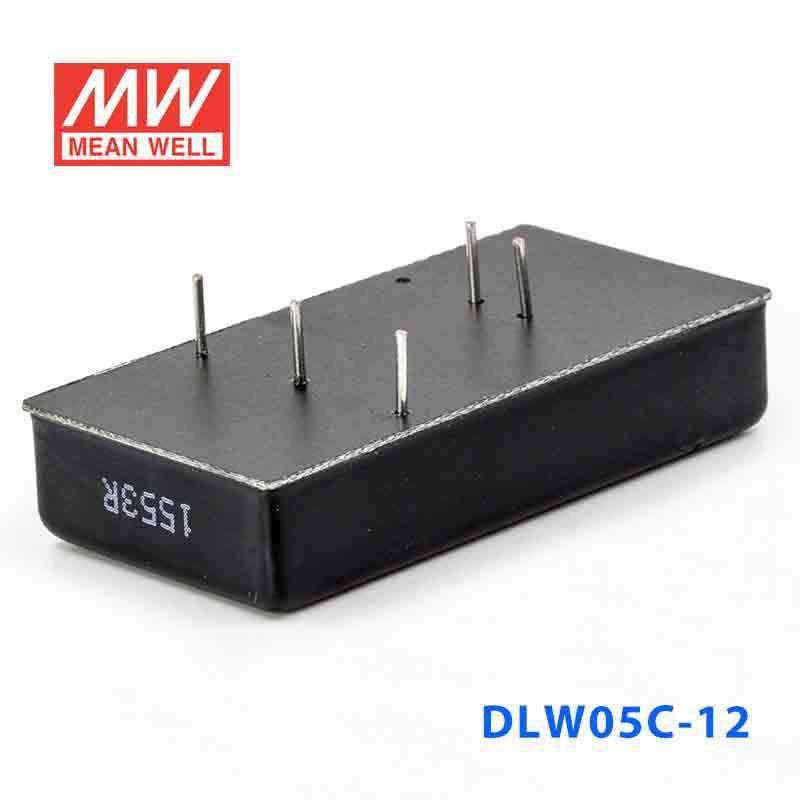

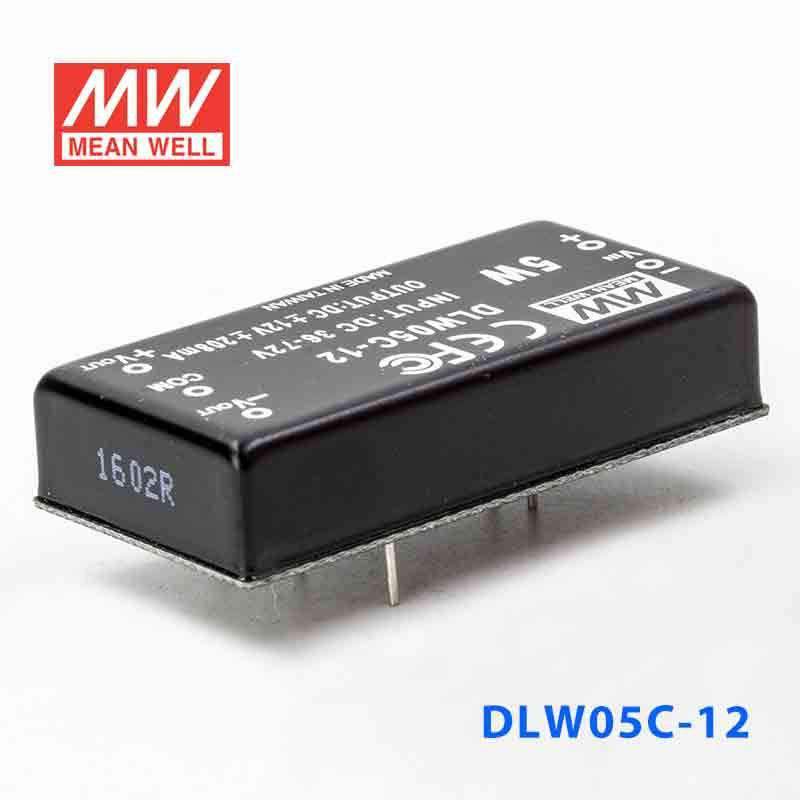

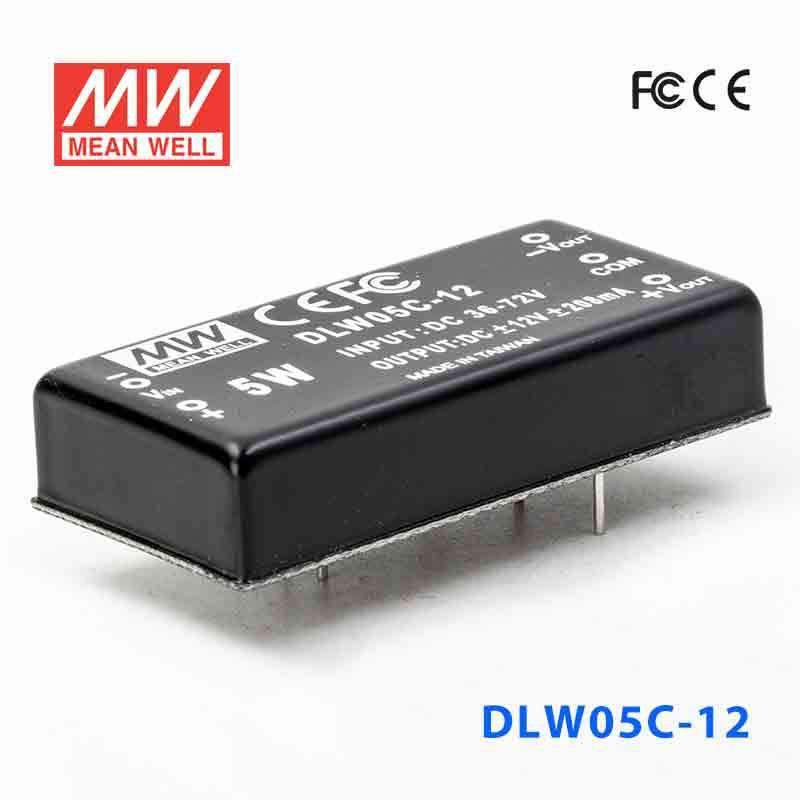

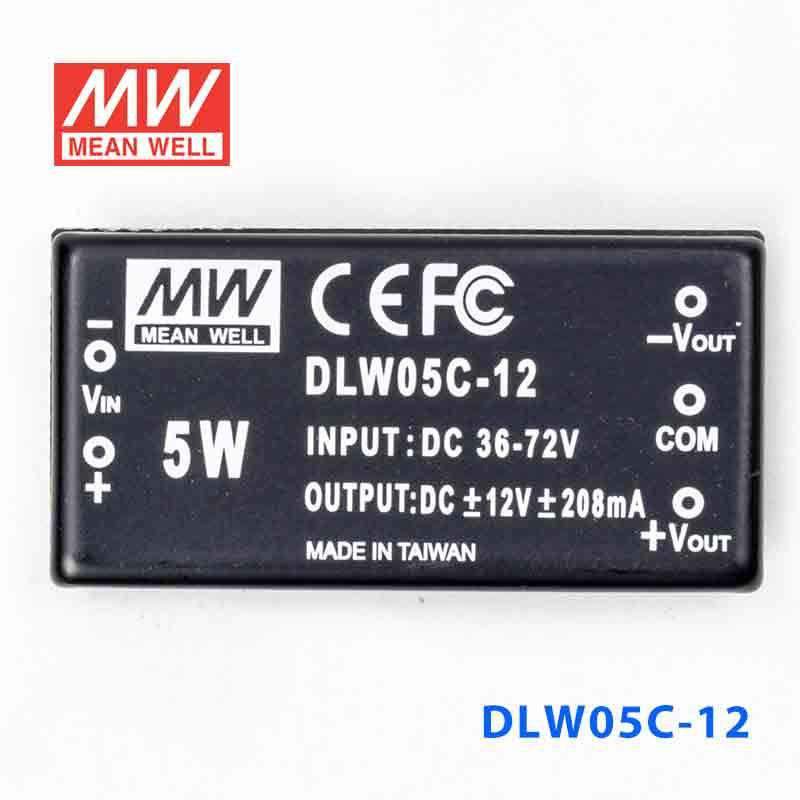

Mean Well DLW05C-12 DC-DC Converter - 5W - 36~72V in ±12V out
Description
Description
The DLW05C is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDLW Series
-
Power Rating5 Watt
-
Output Voltage12 Volt
-
Rated Current0.20 Ampere
-
Input Voltage36V~72V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DLW05C-12 in a 48V automation system that needs a 12V rail?
This model accepts 36-72VAC input and provides a constant 12V output at 5W. That makes it suitable for low-power automation electronics or interface modules that need 12V derived from a higher-voltage source in that input range.
Is the DLW05C-12 suitable for embedded 12V analog or control circuits?
It can be used where the design needs a constant 12V output and the upstream supply is within 36-72VAC. Because the rated power is 5W, it is better suited to compact control, sensing, or signal-processing sections than to larger 12V loads.
Would the DLW05C-12 fit a compact industrial electronics design?
Its dimensions are 50.8 × 25.4 × 11.27 mm and its weight is 0.032 kg, so it is built for compact integration. That physical format can work well in small embedded or industrial assemblies where a 12V rail is needed from a 36-72VAC input source.
Can this converter be used in uncontrolled indoor environments?
The operating temperature range is -25°C to +71°C, which supports a wide range of indoor equipment conditions. The specs do not list an IP rating, so the product data does not support claiming outdoor, sealed, or washdown use.
How does the DLW05C-12 differ from the other DLW05C outputs?
The series keeps the same 5W platform and 36-72VAC input while changing output options. The DLW05C-05 is 5V with 500A, the DLW05C-12 is 12V with 208A, and the DLW05C-15 is 15V with 167A.
Other DLW05 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DLW05C-15 DC-DC Converter - 5W - 36~72V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05C-05 DC-DC Converter - 5W - 36~72V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05B-15 DC-DC Converter - 5W - 18~36V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05B-12 DC-DC Converter - 5W - 18~36V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05B-05 DC-DC Converter - 5W - 18~36V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
| Mean Well DLW05A-15 DC-DC Converter - 5W - 9~18V in ±15V out | 5W | 15V | 0.16A | Indoor | $14.95 | View |
| Mean Well DLW05A-12 DC-DC Converter - 5W - 9~18V in ±12V out | 5W | 12V | 0.20A | Indoor | $14.95 | View |
| Mean Well DLW05A-05 DC-DC Converter - 5W - 9~18V in ±5V out | 5W | 5V | 0.5A | Indoor | $14.95 | View |
