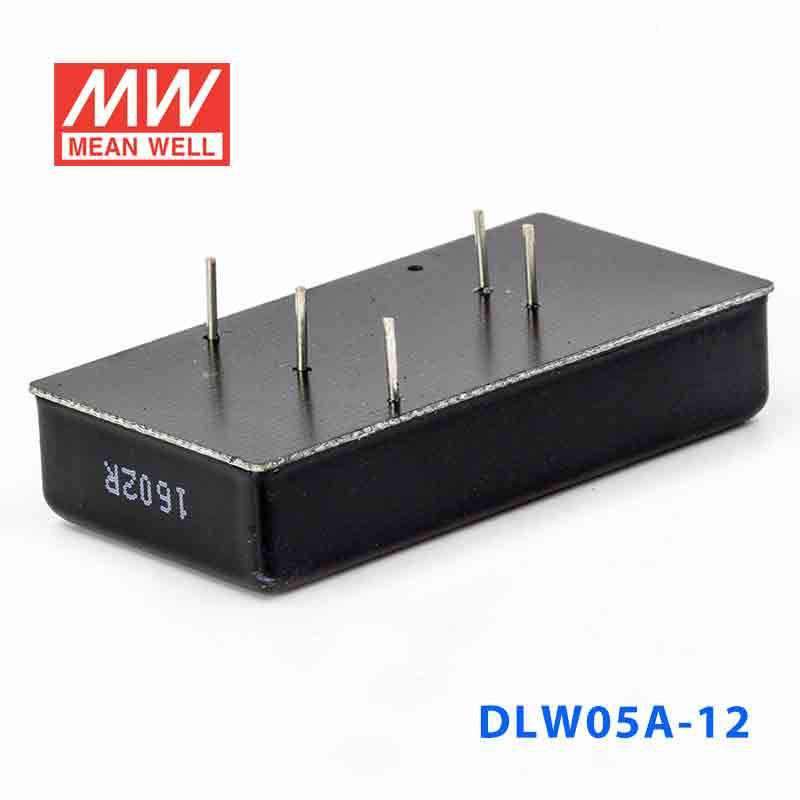

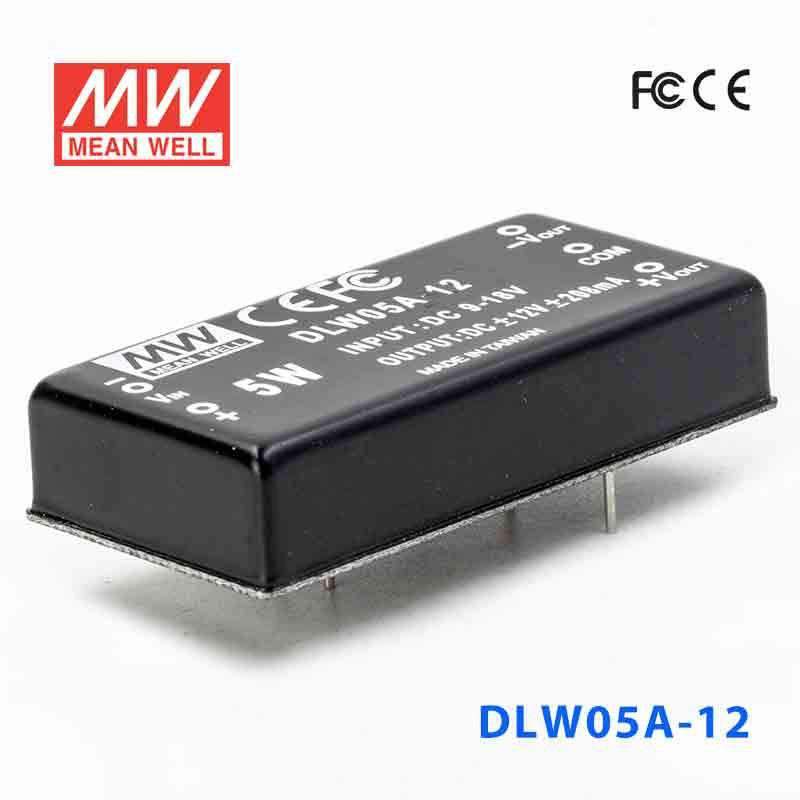

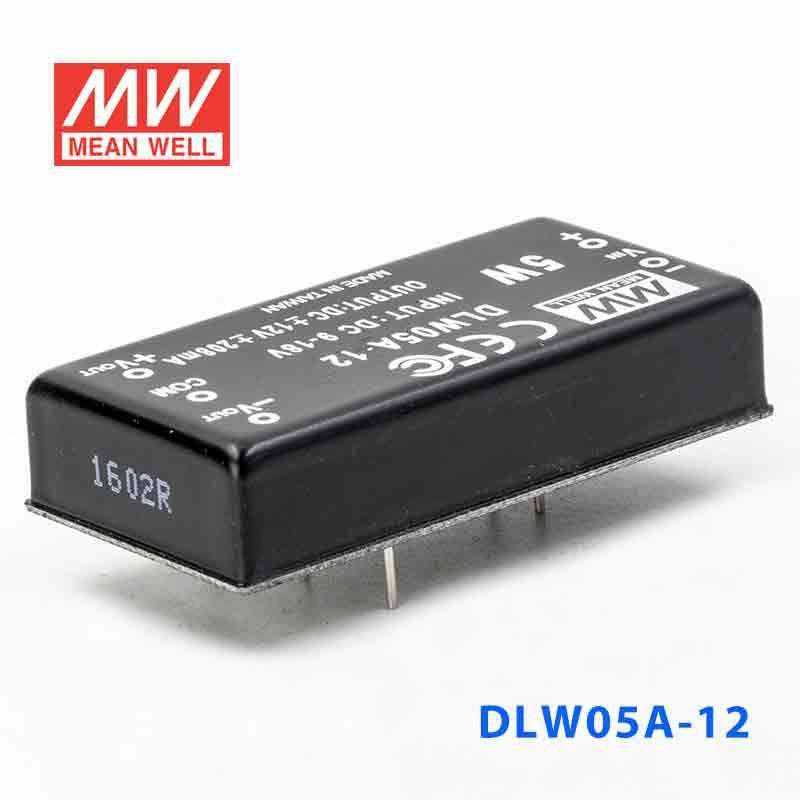

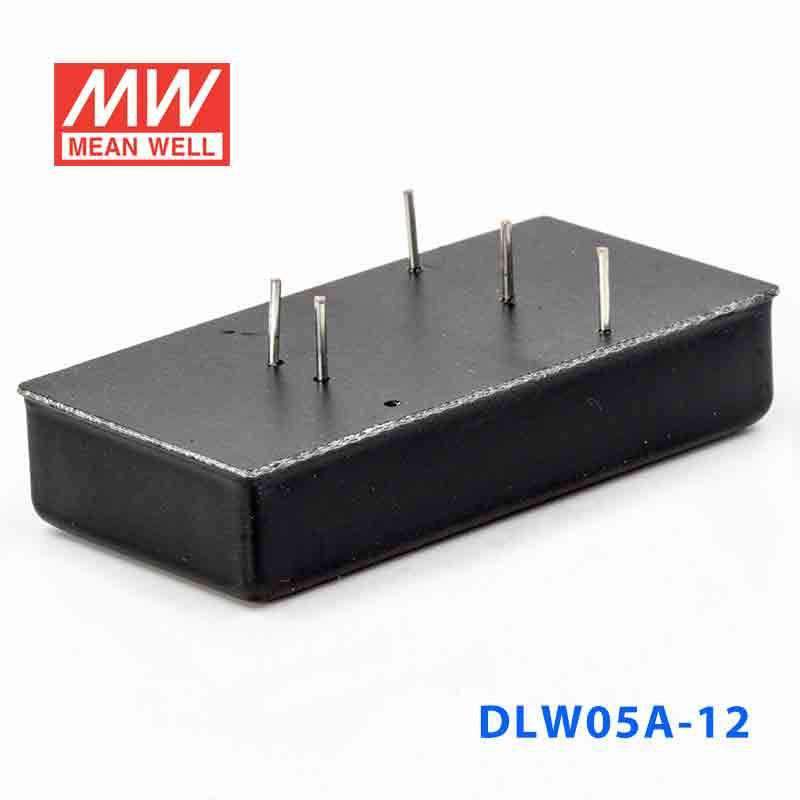

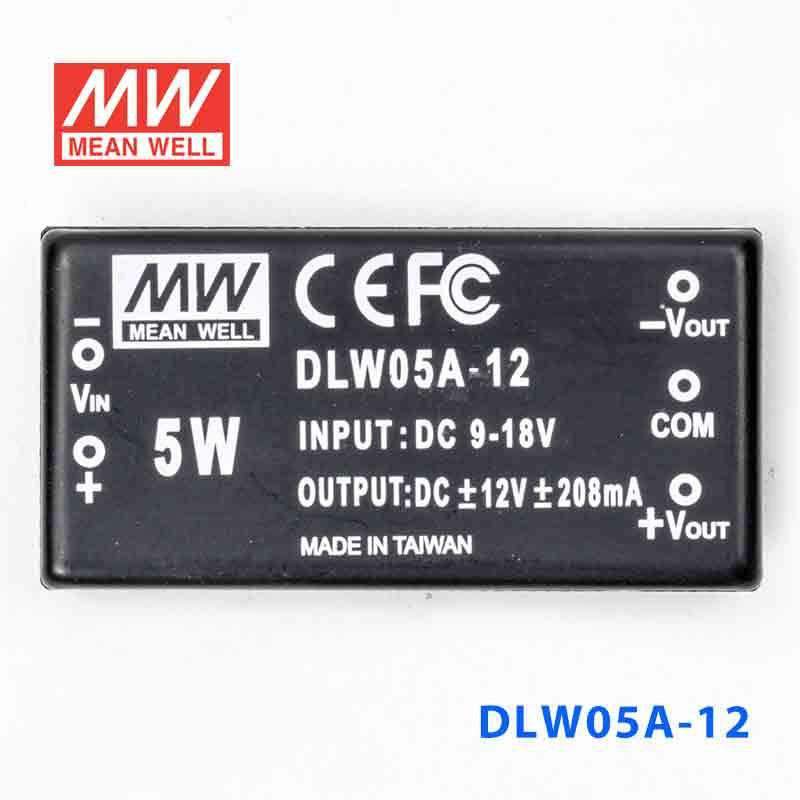

Mean Well DLW05A-12 DC-DC Converter - 5W - 9~18V in ±12V out
Description
Description
The DLW05A is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDLW Series
-
Power Rating5 Watt
-
Output Voltage12 Volt
-
Rated Current0.20 Ampere
-
Input Voltage9V~18V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DLW05A-12 for 12V industrial instrumentation or signal-conditioning modules?
Yes, if the module needs constant 12V output and the source available to the converter is within 9-18VAC. With a 5W rating, it suits lower-power instrumentation and interface sections rather than larger 12V loads.
Is the DLW05A-12 a fit for embedded controller accessories that run on 12V?
It is appropriate for embedded accessories or auxiliary boards that need a regulated 12V rail and stay within the 5W output limit. The constant-voltage design is aligned with electronics that expect a fixed 12V supply.
Can this model support 12V automation interface electronics in a compact machine build?
Yes, for low-power interface electronics that need 12V constant voltage from a 9-18VAC source. Its 50.8 × 25.4 × 11.27 mm body and 0.032 kg weight are useful when panel space is limited.
Can the DLW05A-12 be used where temperatures drop below freezing?
The specified operating range is -25°C to +71°C, so below-freezing environments are within the stated temperature range. The provided specs do not list an IP rating, so exposure to weather or washdown conditions should not be assumed.
What is the difference between the DLW05A-12 and the other DLW05A variants?
The DLW05A family keeps the same 5W rating, 9-18VAC input range, constant-voltage operation, 50.8 × 25.4 × 11.27 mm size, 0.032 kg weight, and -25°C to +71°C temperature range across the series. The difference is the output: DLW05A-05 is 5V at 500A, DLW05A-12 is 12V at 208A, and DLW05A-15 is 15V at 167A.
