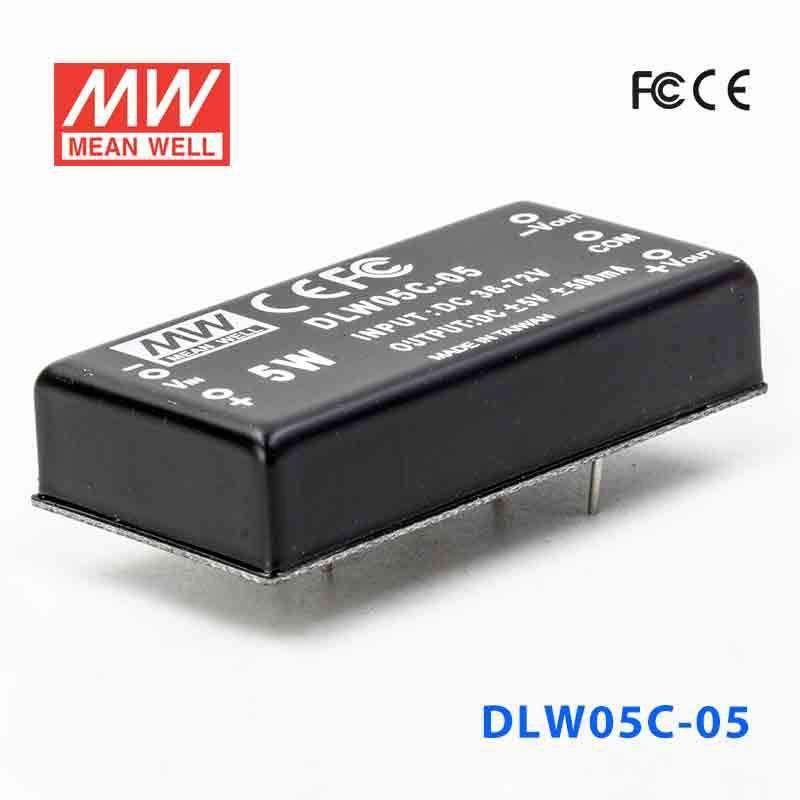

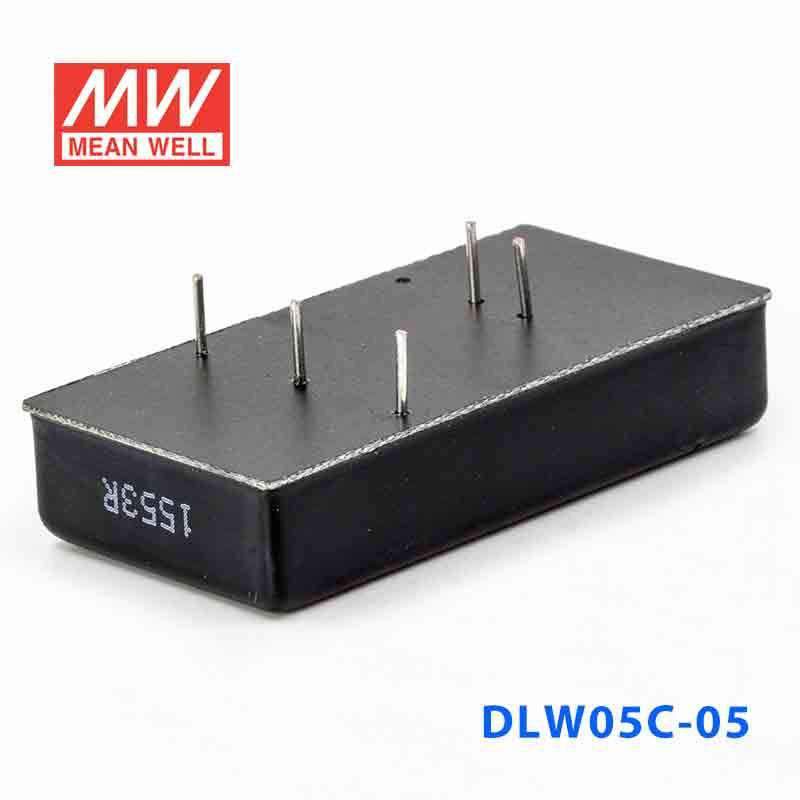

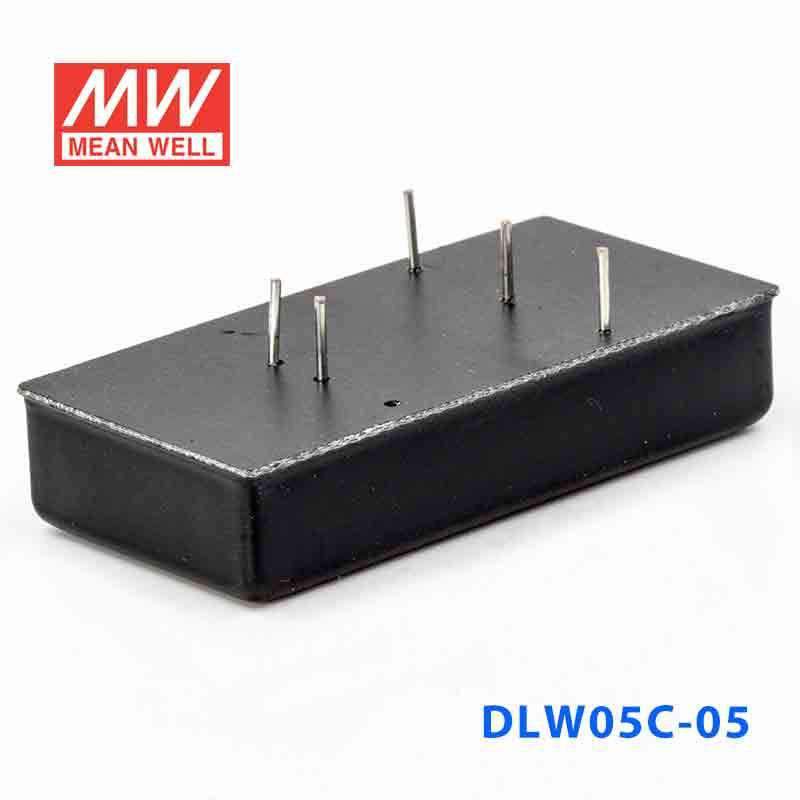

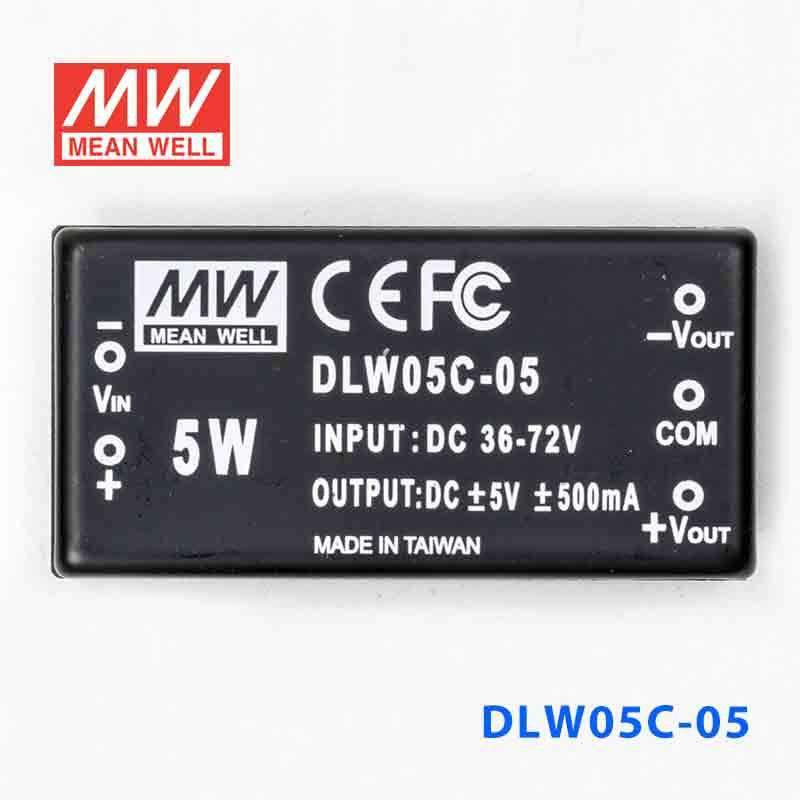

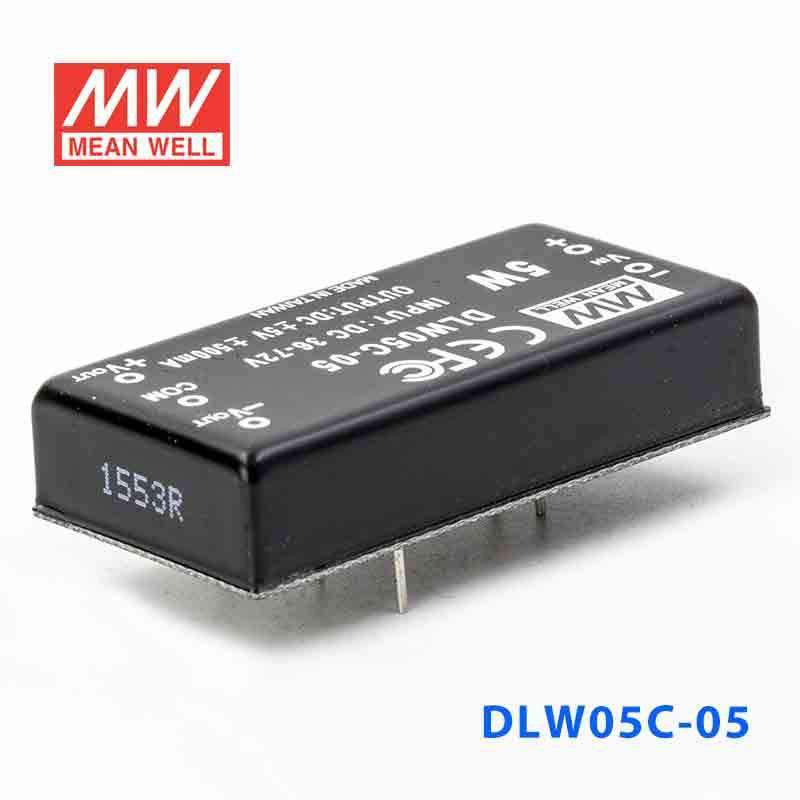

Mean Well DLW05C-05 DC-DC Converter - 5W - 36~72V in ±5V out
Description
Description
The DLW05C is a 5W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDLW Series
-
Power Rating5 Watt
-
Output Voltage5 Volt
-
Rated Current0.5 Ampere
-
Input Voltage36V~72V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~71°C
-
Warranty2 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DLW05C-05 in a 48V or 60V industrial control system that needs 5V power?
This converter is intended for 36-72VAC input and provides a constant 5V output at 5W. It is a reasonable fit for low-power logic or interface sections in equipment powered from a 36-72VAC range.
Is the DLW05C-05 suitable for powering embedded 5V control electronics from a higher-voltage bus?
Yes, it is built for 36-72VAC input and steps that range down to a constant 5V output. With a 5W rating, it is better matched to compact embedded electronics, monitoring circuits, or communication boards than to heavier 5V loads.
Can this model work for low-power PLC or automation interface circuits that run on 5V?
It can fit automation subsystems that need a regulated 5V rail, provided the available source is within 36-72VAC. The 5W rating and 50.8 × 25.4 × 11.27 mm size make it more appropriate for low-power interface functions than for large control loads.
Is the DLW05C-05 intended for outdoor or washdown environments?
The temperature range is -25°C to +71°C, so it can handle a broad operating range from cold to warm equipment conditions. However, no IP rating is listed, so the specs do not indicate protection for outdoor exposure, washdown, or dust-tight use.
What is the difference between the DLW05C-05, DLW05C-12, and DLW05C-15?
All three are 5W models in the DLW05C series with 36-72VAC input. The DLW05C-05 is 5V with 500A, the DLW05C-12 is 12V with 208A, and the DLW05C-15 is 15V with 167A.
