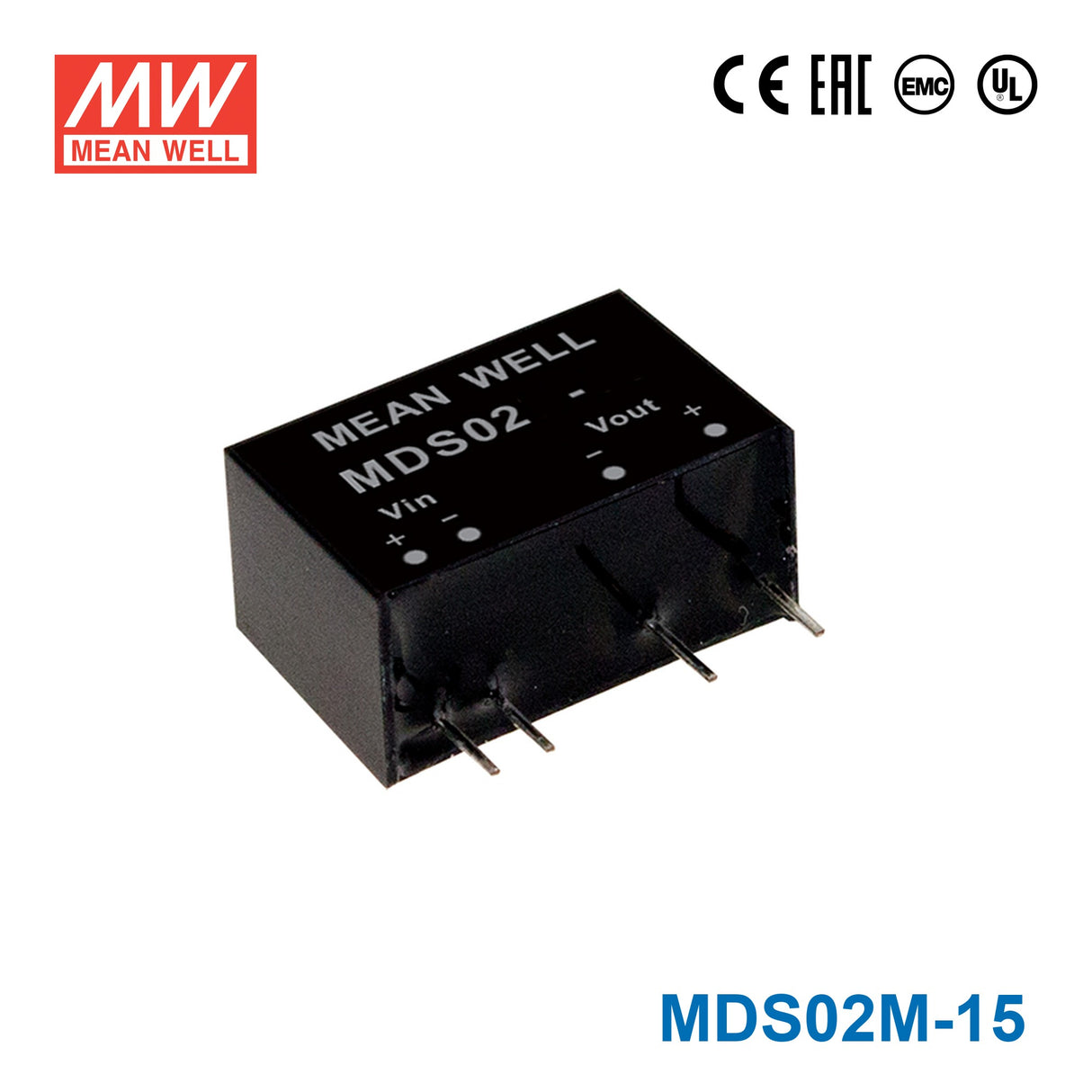

Mean Well MDS02M-15 DC-DC Converter - 2W - 10.8~13.2V in 15V out

$6.01 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

SI7 package with international standard pinout
Operating temperature range -40~+85℃
Medical safety approved(1xMOPP/2xMOPP) according to ANSI/AAMI ES60601-1
Low patient leakage current <2µA
Protections: Short circuit(3 second max)/Overload
6KVDC or 4.2KVAC high I/O isolation(Reinforced isolation)
Low cost
3 years warranty

General Specification

Voltage accuracy ±5.0%
Efficiency 85%
Short circuit protection 3-second max
Working temperature -40°C to +85°C
EMC Compliance to EN55011 class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient 0.02% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm) 19.5*9.8*12.5mm

Specifications

  • Brand
    Mean Well
  • Series
    MDS Series
  • Power Rating
    2 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.13 Ampere
  • Input Voltage
    10.8V~13.2V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EAC,EMC,LVD,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    0.77 in
  • Width
    0.49 in
  • Height
    0.39 in
  • Weight
    0.01 lb

File Downloads

::specification::
