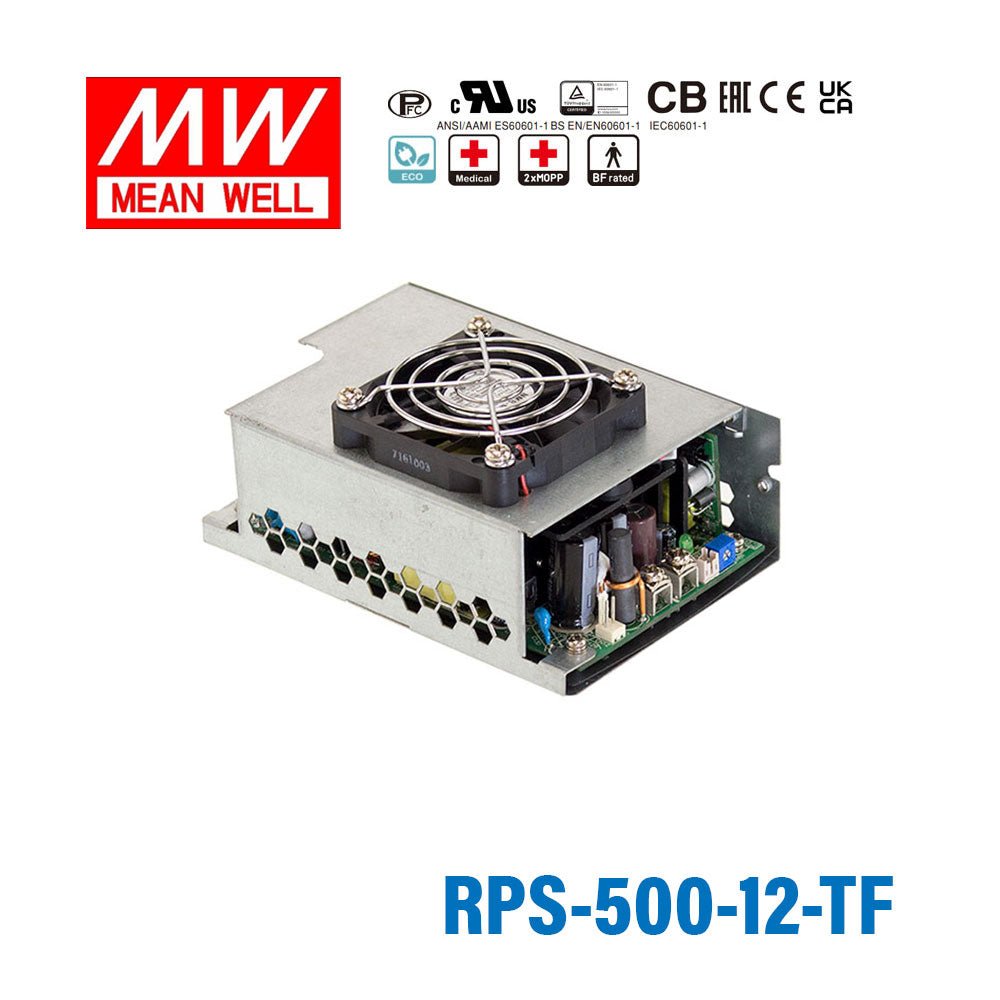

Mean Well RPS-500-12-TF Green Power Supply W 12V 41.6A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-12-TF Green Power Supply W 12V 41.6A - Medical Po...
The RPS-500-12 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating499.2 Watt
-
Output Voltage12 Volt
-
Rated Current41.6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5.12 in
-
Width3.39 in
-
Height2.62 in
-
Weight1.28 lb
::specification::
Frequently Asked Questions
Can the RPS-500-12-TF be used for a 12V automation system with heavier current demand?
Yes, it delivers constant-voltage 12V output at up to 41.6A and 499.2W. That makes it suitable for larger 12V automation systems that need more current headroom than the 25.8A or 26.7A 12V versions.
Is this a good option for a 12V embedded platform or industrial computer with expansion devices?
It can support a 12V embedded platform when the total load stays within 41.6A and 499.2W. Compared with smaller 12V RPS models, this version is intended for higher-power 12V systems with more demanding current requirements.
Can the RPS-500-12-TF power medical equipment that needs a 12V rail?
This model is medical safety approved and uses constant-voltage 12V output. It fits 12V medical subsystems up to 41.6A and 499.2W, and its listed features include extreme low leakage current.
Does the RPS-500-12-TF work in cold or hot equipment environments?
The specified operating range is -30°C to +70°C, so it is designed for wide-temperature operation. Since no IP rating is listed, that temperature capability does not make it an exposed outdoor product by itself.
What are the main differences between this unit and other 12V RPS models?
Across the 12V RPS family, listed outputs are 30W 2.5A, 45.6W 3.8A, 60W 5A, 65W 5.42A, 75.6W 6.3A, 84W 10A, 112.2W 9.1A, 114W 9.5A, 140.4W 11.7A, 200W 16.67A, 249.6W 20.8A, 309.6W 25.8A, 320.4W 26.7A, and 499.2W 41.6A. The TF version sits at the maximum listed 12V output level and shares that 499.2W 41.6A rating with the SF version.
