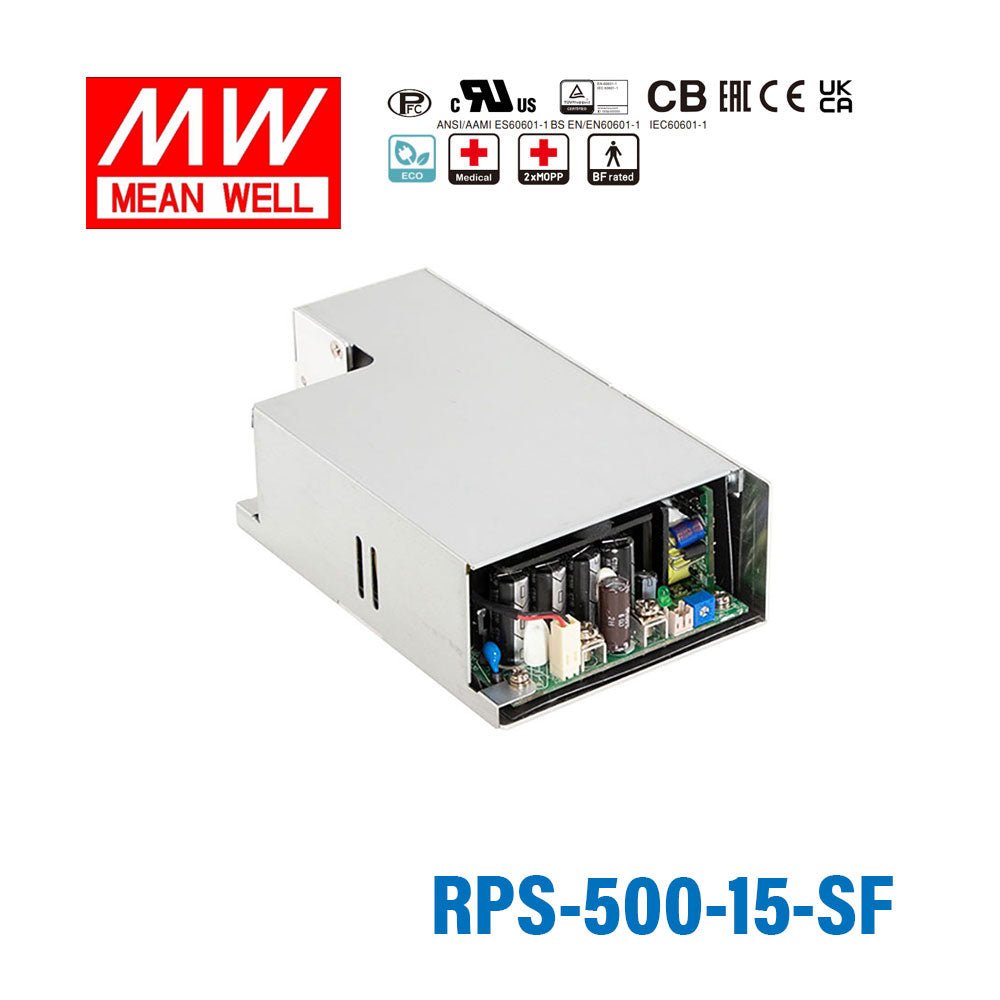

Mean Well RPS-500-15-SF Green Power Supply W 15V 33.3A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RPS-500-15-SF Green Power Supply W 15V 33.3A - Medical Po...
The RPS-500-15 is a 500W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC60601-1, TUV EN60601-1, UL ANSI / AAMI ES60601-1 (3.1 version),EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating499.5 Watt
-
Output Voltage15 Volt
-
Rated Current33.3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.3 in
-
Width3.39 in
-
Height1.69 in
-
Weight1.41 lb
::specification::
Frequently Asked Questions
Can I use the RPS-500-15-SF for a 15V industrial controller or automation panel with a heavy DC load?
Yes, if the equipment is designed for a 15V constant-voltage input and the total load stays within 33.3A and 499.5W. The wide 80-264VAC input also suits installations where the available AC supply may vary within that range.
Is this power supply suitable for a 15V embedded or test system that draws high current?
It can be a fit for embedded or test equipment that needs a regulated 15V output with up to 33.3A available. This model is a constant-voltage supply, so the load should be intended for a 15V source rather than a constant-current driver.
Can this model power a 15V medical or laboratory device?
It is intended for 15V equipment that benefits from medical safety approval and extreme low leakage current. Capacity is up to 499.5W and 33.3A, so the device must be designed for a 15V constant-voltage supply within those limits.
Would the RPS-500-15-SF work for a 15V HMI, IPC, or industrial display system?
It can, provided the system requires 15V DC and does not exceed 33.3A or 499.5W. The compact 160.0 x 86.0 x 43.0 mm size can also matter where panel space is limited.
How does the RPS-500-15-SF compare with other RPS 15V models?
Within the 15V family, the listed siblings are RPS-30-15 at 30W and 2A, RPS-45-15 at 45W and 3A, RPS-60-15 at 60W and 4A, RPS-65-15 at 65.1W and 4.34A, RPS-75-15 at 75W and 5A, RPS-120-15 and RPS-120-15-C at 84W and 8A, RPS-120S-15 at 114W and 7.6A, RPS-160-15 at 112.5W and 7.3A, RPS-200-15 and RPS-200-15-C at 141W and 9.4A, RPS-300-15 and RPS-300-15-C at 200W and 13.33A, RPS-400-15, RPS-400-15-C, RPS-400-15-SF, and RPS-400-15-TF at 250.5W and 16.7A, RPS-500-15 at 319.5W and 21.3A, RPS-500-15-C at 310.5W and 20.7A, and RPS-500-15-TF at 499.5W and 33.3A. The RPS-500-15-SF is one of the highest-capacity 15V options listed at 499.5W and 33.3A.
Is the RPS-500-15-SF suitable for outdoor or harsh-temperature use?
The listed operating temperature is -30°C to +70°C, so the temperature range is broad. No IP rating is listed in the provided specs, so these specs alone do not identify it as an outdoor-rated unit.
