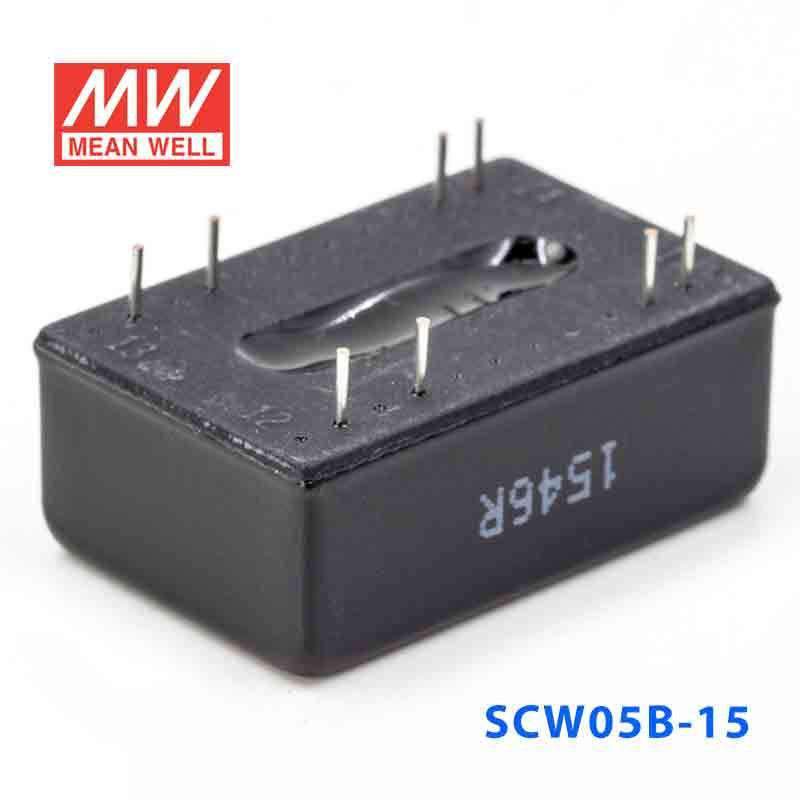

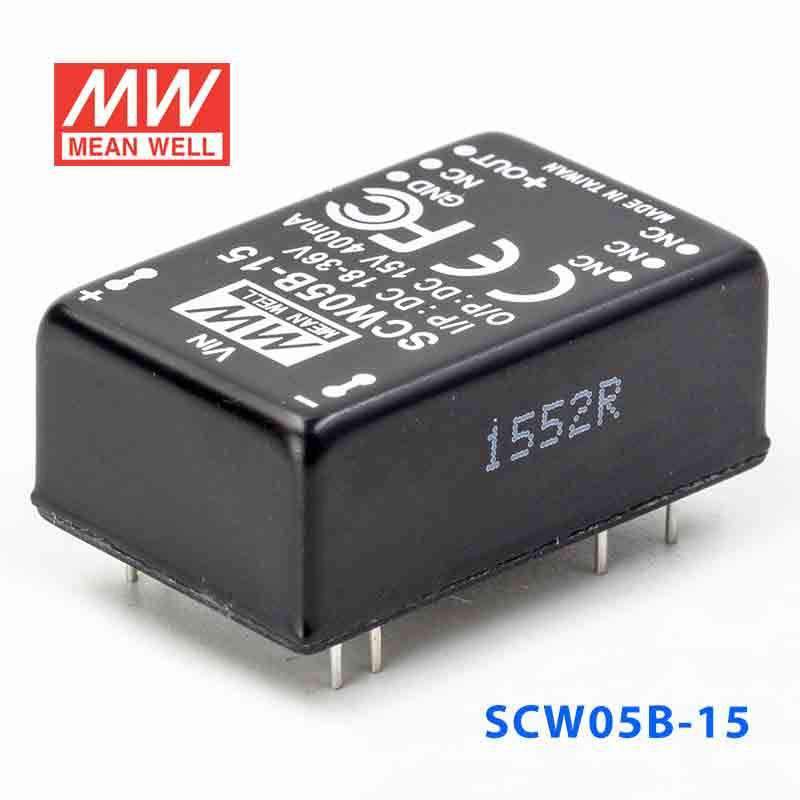

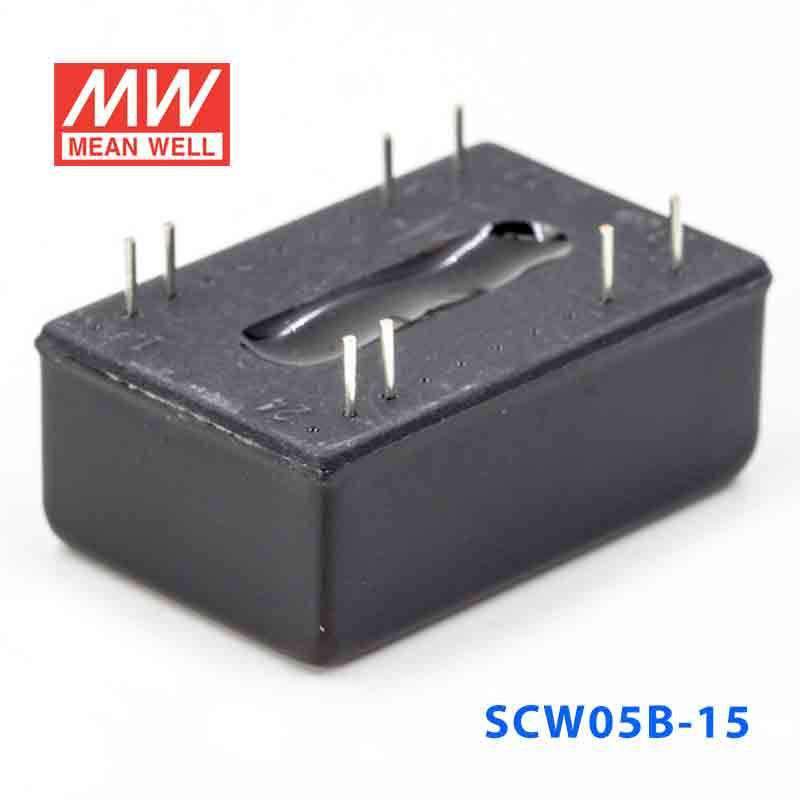

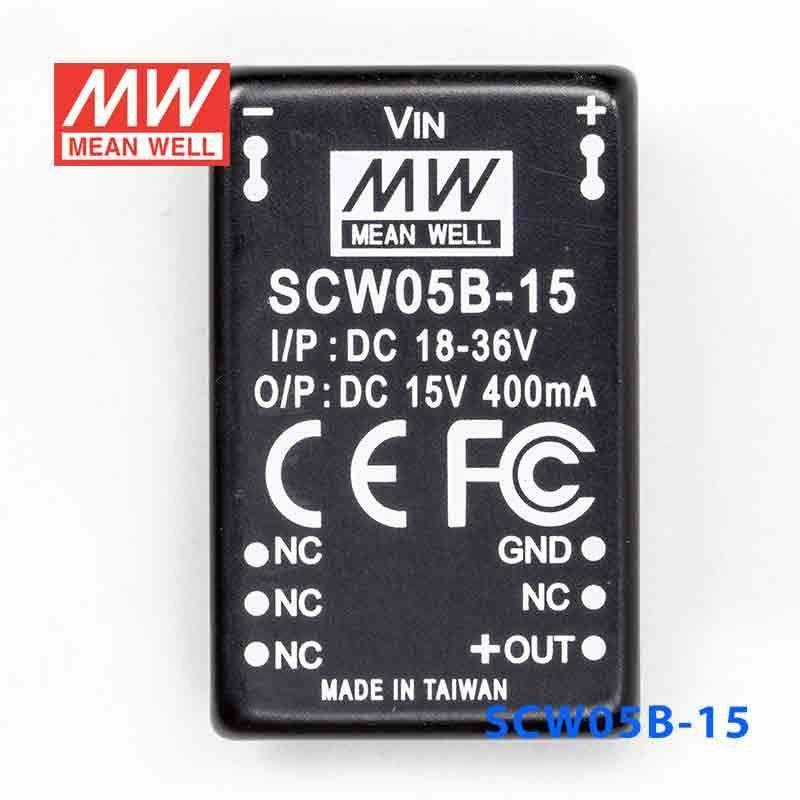

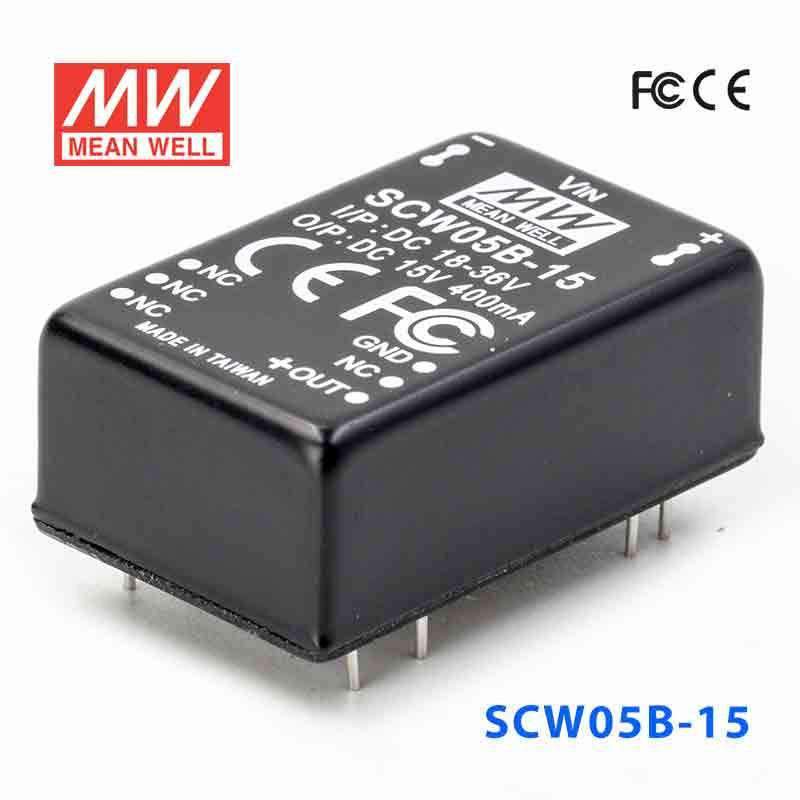

Mean Well SCW05B-15 DC-DC Converter - 5W 18~36V DC in 15V out
Description
Description
The SCW05B is a 5W Mean Well power converter (input range: 9~18VDC).
Key Features
- ✓ Input voltage range: 9~18VDC
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage18V~36V
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key electrical ratings of the Mean Well SCW05B-15?
The SCW05B-15 is a 5W DC-DC converter with a nominal 15V DC output. It is rated for 0.4A output current and accepts an 18 to 36V DC input range. This model is intended for regulated DC power conversion in compact equipment.
What types of applications is the SCW05B-15 typically used in?
This model is suited to embedded and industrial electronic equipment that needs a compact 15V DC rail from a higher DC source. Its modular DC-DC format, metal case, and high-reliability design make it a practical option for OEM and B2B applications. Buyers often consider it where space, stable output, and isolated conversion are important.
Is the SCW05B-15 designed for demanding temperature environments?
Yes. The specified operating temperature range is -40°C to 71°C, which supports use in a wide range of industrial and enclosed equipment environments. That makes it more flexible than converters limited to standard room-temperature operation.
How does the SCW05B-15 support reliability in industrial use?
Mean Well lists built-in EMI filtering, short circuit protection, overload protection, and 100% full-load burn-in testing for this model. The product description also highlights a five-sided shield metal case and high-reliability positioning. These features are relevant for buyers evaluating durability and consistency in long-term equipment use.
Does the SCW05B-15 provide isolation between input and output?
Yes. The product description specifies 1000VDC input-to-output isolation for this model family, with a higher-isolation option noted separately. Isolation can be important in designs that need separation between DC source and output circuitry.
What physical and commercial details should buyers know about this model?
The listed weight for the SCW05B-15 is 0.015 kg, supporting use in compact, lightweight assemblies. Mean Well also lists a 2-year warranty period for this model. For buyers comparing small DC-DC modules, these details can help with packaging and lifecycle planning.
