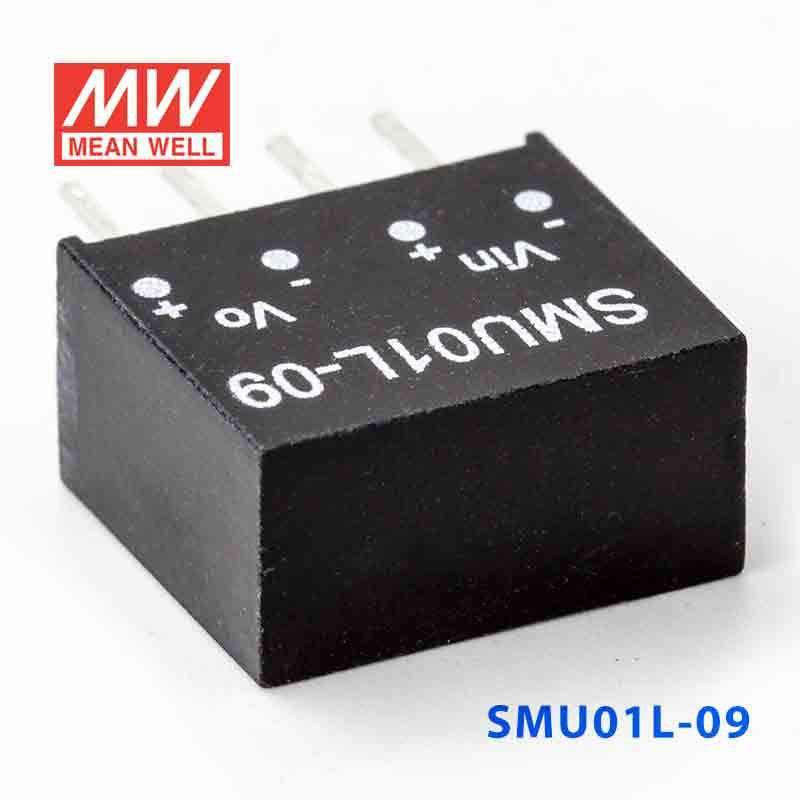

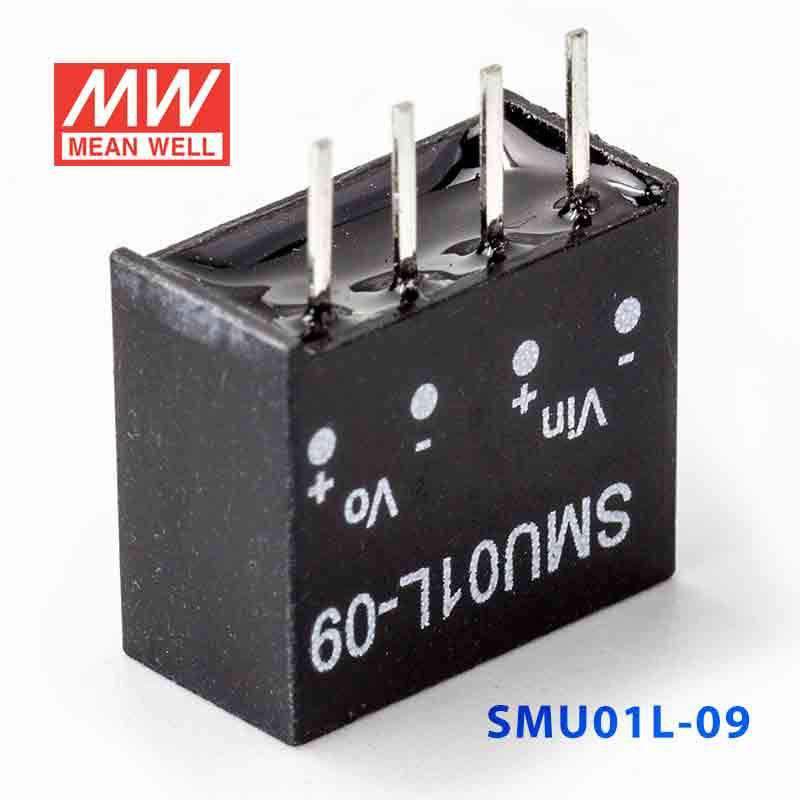

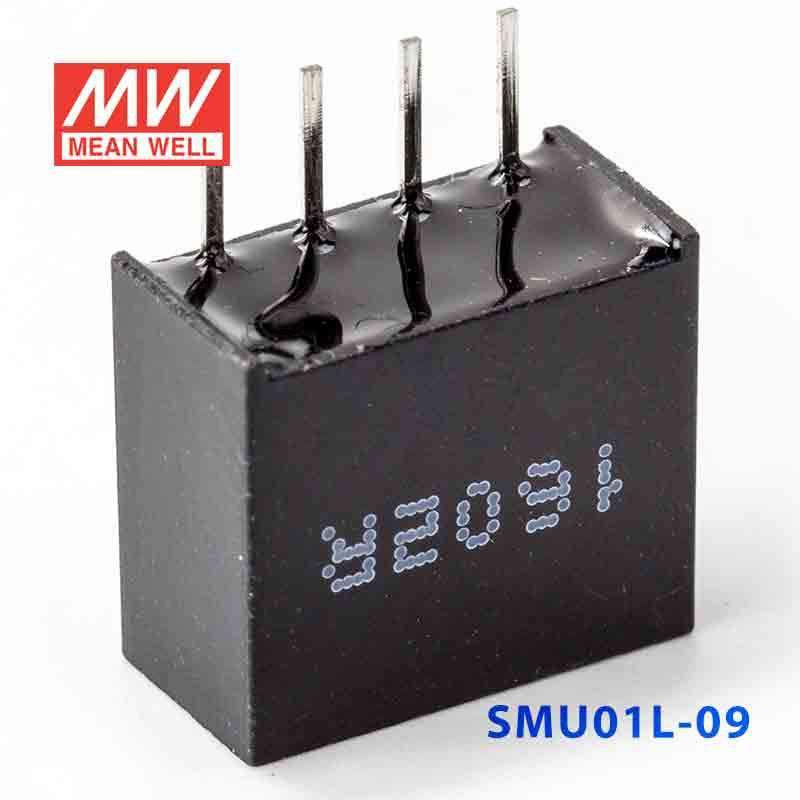

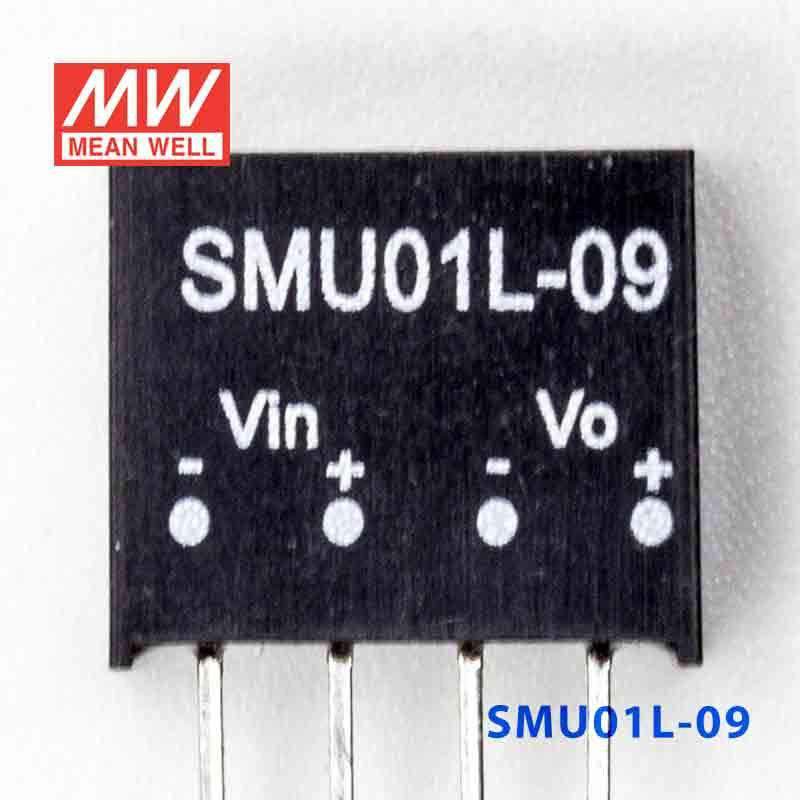

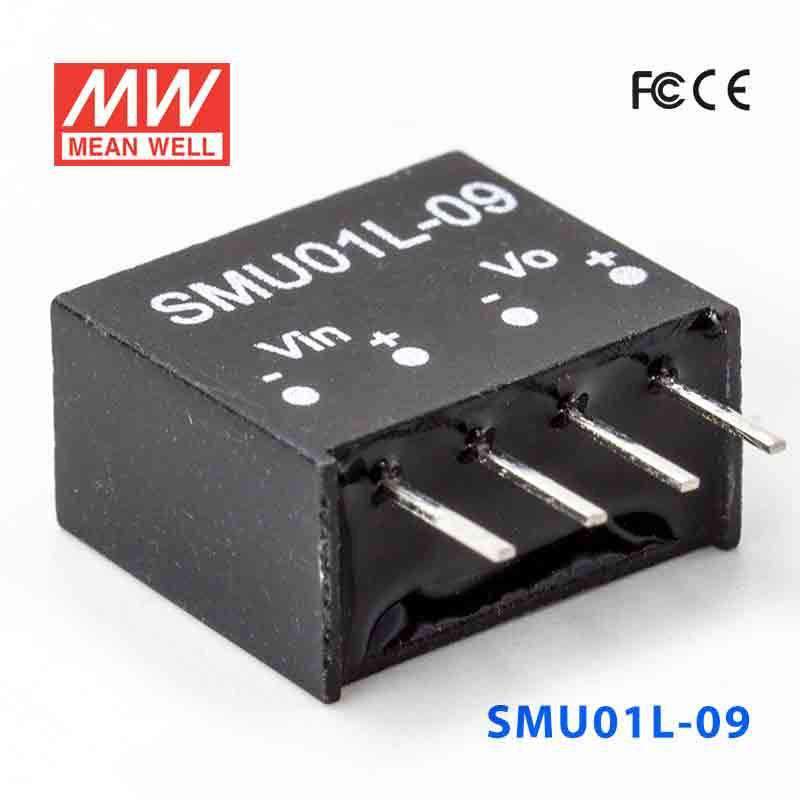

Mean Well SMU01L-09 DC-DC Converter - 1W - 4.5~5.5V in 9V out
Description
Description
The SMU01L is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSMU Series
-
Power Rating1 Watt
-
Output Voltage9 Volt
-
Rated Current0.11 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.46 in
-
Width0.4 in
-
Height0.24 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SMU01L-09 for a low-power 9V rail in embedded control electronics?
Yes, it can suit low-power embedded control sections that need a 9V constant voltage output and remain within the converter's 1W rating. This model is specified at 9V output with 110A output current.
Is the SMU01L-09 suitable when my available input is around 5V but my circuit needs 9V?
This converter is intended for a 4.5~5.5V input range and provides a 9V constant voltage output. That makes it relevant for low-power electronics that need a 9V rail from a near-5V source range.
Can the SMU01L-09 be used in compact instrumentation or automation modules?
It can fit compact instrumentation or automation electronics where space is limited and the required output power is 1W. The dimensions are 11.6 × 10.14 × 6.1 mm and the weight is 0.0013 kg.
Will the SMU01L-09 work in cold or hot operating environments?
The specified operating temperature range is -40°C to +90°C, which supports use in equipment exposed to large temperature variation. No IP rating is provided in the supplied data, so enclosure sealing or direct outdoor exposure is not defined by these specs.
What is the difference between the SMU01L-09 and the other SMU01L options?
All listed SMU01L variants are rated at 1W. The available siblings shown are 5V with 200A for SMU01L-05, 9V with 110A for SMU01L-09, 12V with 0.08A for SMU01L-12, and 15V with 0.07A for SMU01L-15.
