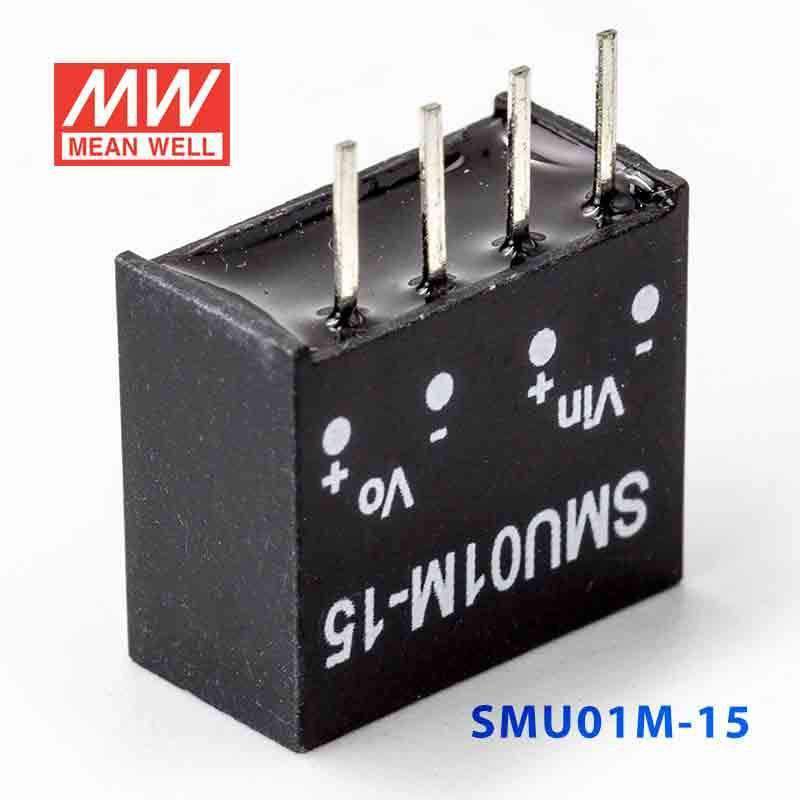

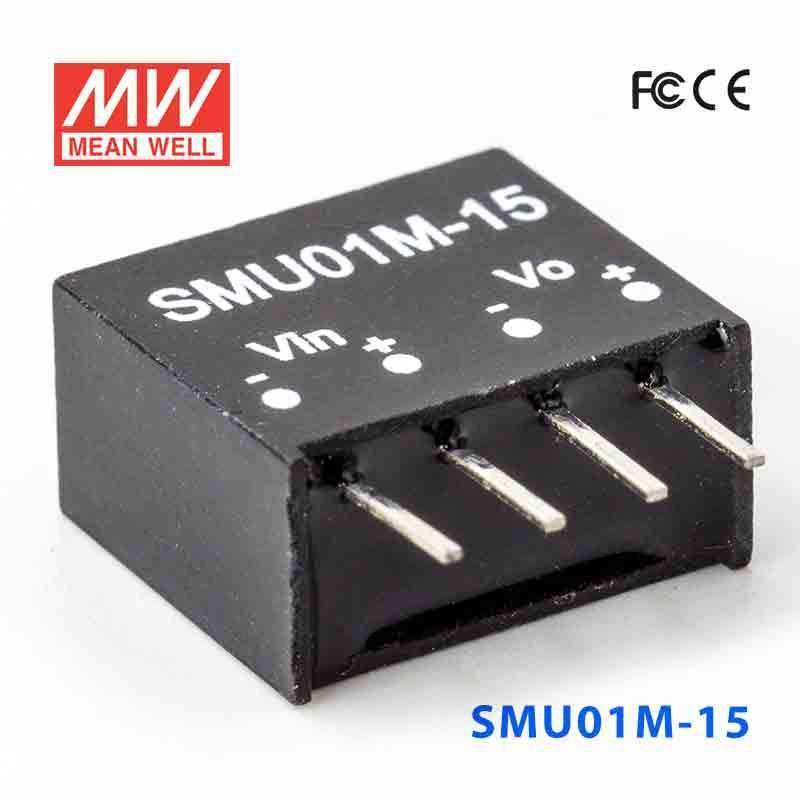

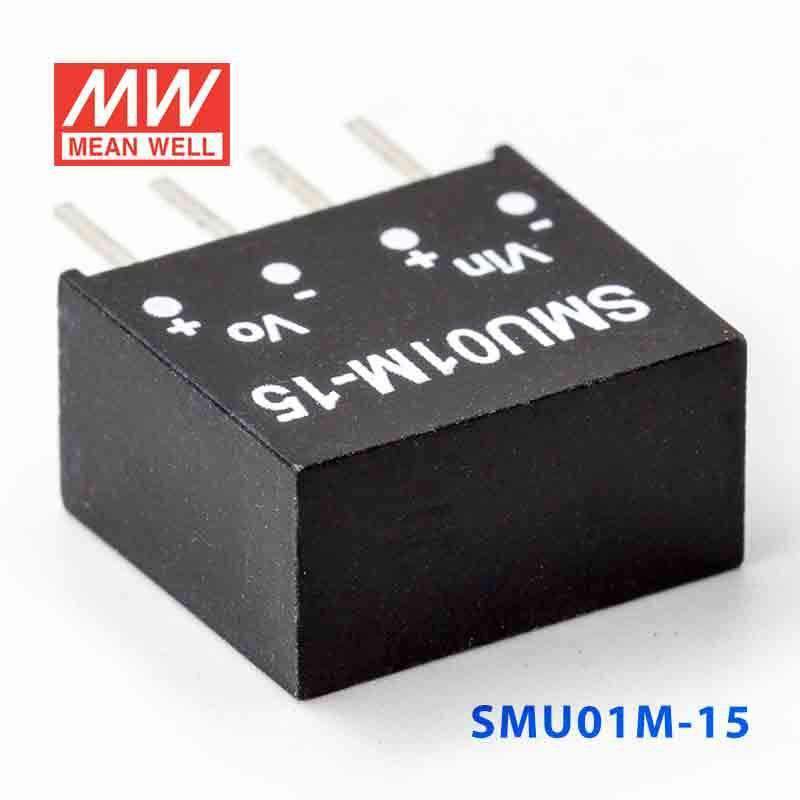

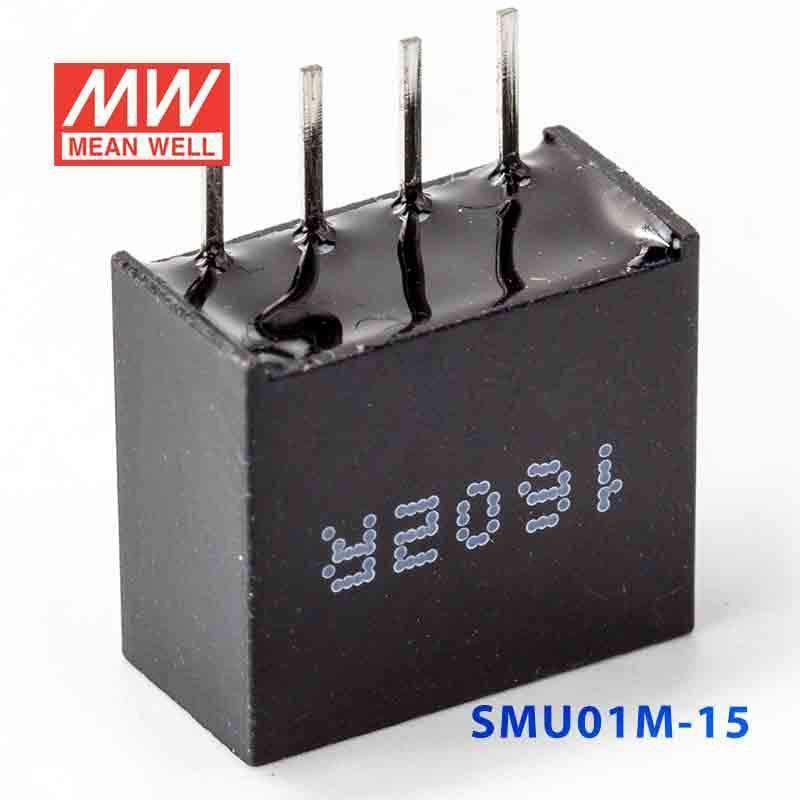

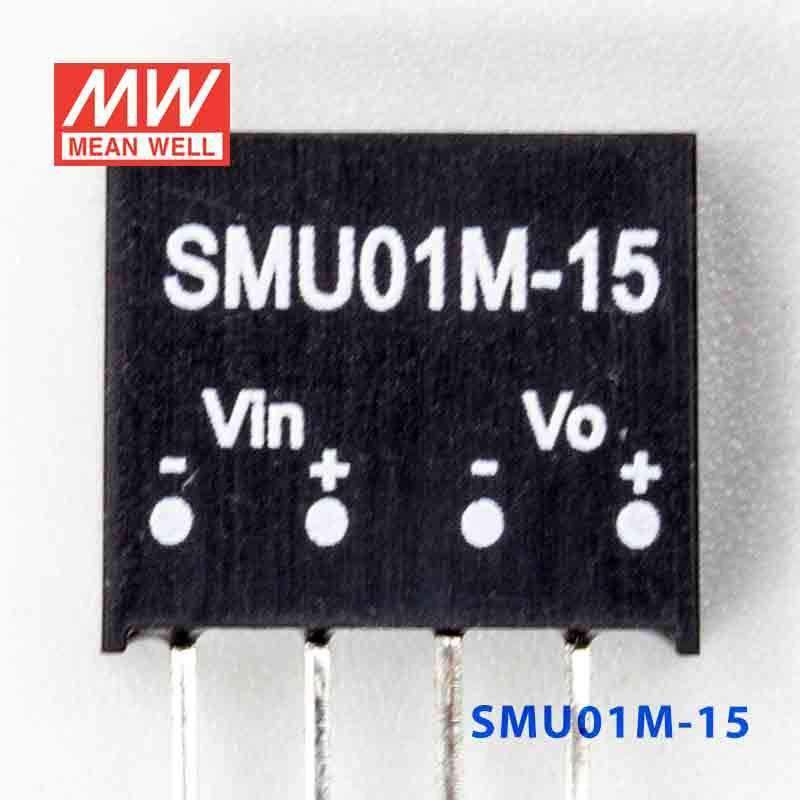

Mean Well SMU01M-15 DC-DC Converter - 1W - 10.8~13.2V in 15V out
Description
Description
The SMU01M is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSMU Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.46 in
-
Width0.4 in
-
Height0.24 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the SMU01M-15 be used for a low-power 15V rail in automation equipment?
Yes, it is intended for low-power automation electronics that need a constant 15V output from a 10.8~13.2VAC input. With a 1W rating and 0.07A output current, it is suited to light auxiliary functions rather than larger loads.
Is the SMU01M-15 suitable for embedded analog or signal interface sections that require 15V?
It can fit embedded analog or interface sections where a regulated 15V rail is needed and the load stays within 0.07A. The compact 11.6 × 10.14 × 6.1 mm body helps in dense industrial or embedded layouts.
Would this model work in compact IT or instrumentation hardware with strict size limits?
Yes, its 11.6 × 10.14 × 6.1 mm dimensions and 0.0013 kg weight make it practical where board area and mass are limited. Application suitability still depends on the system needing 15V constant voltage and staying within the 1W output rating.
How does SMU01M-15 differ from the other output options in the SMU01M series?
All listed SMU01M variants are 1W converters with the same 10.8~13.2VAC input family. The series is offered in 5V, 9V, 12V, and 15V versions, and the listed output currents are 200A for SMU01M-05, 110A for SMU01M-09, 0.08A for SMU01M-12, and 0.07A for SMU01M-15.
Is the SMU01M-15 designed for outdoor use or wide operating temperatures?
The converter is specified for operation from -40°C to +90°C, so the temperature rating covers a wide range. No IP rating is provided in the product data, so outdoor exposure protection is not defined and the unit should be evaluated as a protected internal component.
