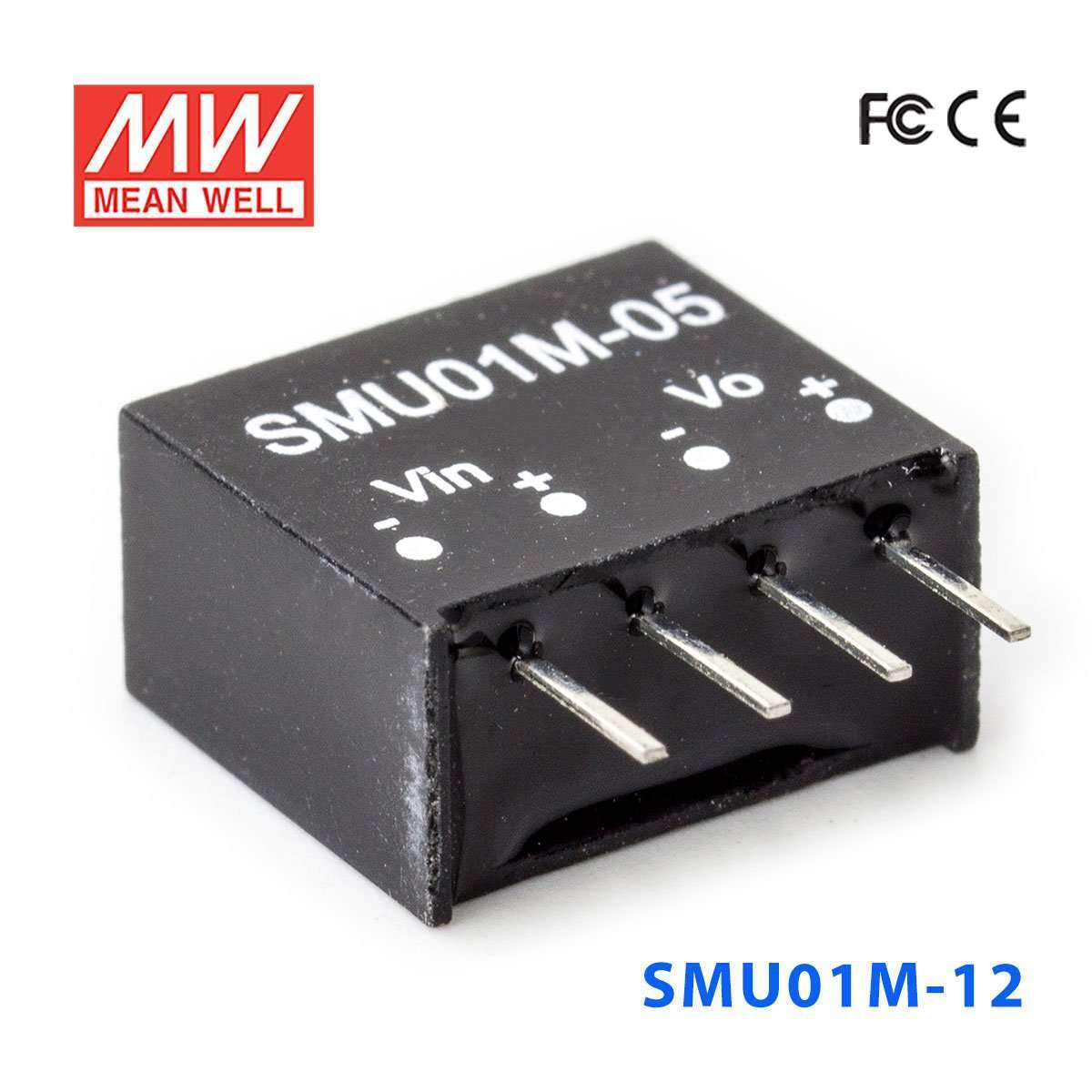

Mean Well SMU01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out
Description
Description
The SMU01M is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSMU Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.46 in
-
Width0.4 in
-
Height0.24 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SMU01M-12 for a small 12V rail in industrial control electronics?
Yes, this model is suited to low-power industrial control electronics that need a constant 12V output from a 10.8~13.2VAC source. Its 1W rating and 0.08A output current make it appropriate for light-duty auxiliary circuits.
Is the SMU01M-12 appropriate for embedded modules that need local 12V regulation?
It can be used in embedded modules where the available input is within 10.8~13.2VAC and the load fits within 12V at 0.08A. The compact 11.6 × 10.14 × 6.1 mm package supports use on tightly packed boards.
Would the SMU01M-12 fit low-power automation or instrumentation subcircuits?
Yes, it is a reasonable choice for low-power automation and instrumentation subcircuits that need a regulated 12V rail. The converter is constant voltage and limited to 1W, so it should be selected for small support functions rather than higher-power sections.
What are the factual differences between SMU01M-12 and the other SMU01M models?
The SMU01M family uses the same 1W class and 10.8~13.2VAC input range across the listed siblings. The output choices are 5V, 9V, 12V, and 15V, with the corresponding listed output currents of 200A, 110A, 0.08A, and 0.07A for SMU01M-05, SMU01M-09, SMU01M-12, and SMU01M-15.
Can the SMU01M-12 be considered for outdoor cabinets or temperature-challenging environments?
The operating temperature specification is -40°C to +90°C, which supports use across a broad temperature window. Since no IP rating is listed, the product specs do not state outdoor ingress protection, so it is best treated as an internal component in a suitable enclosure.
