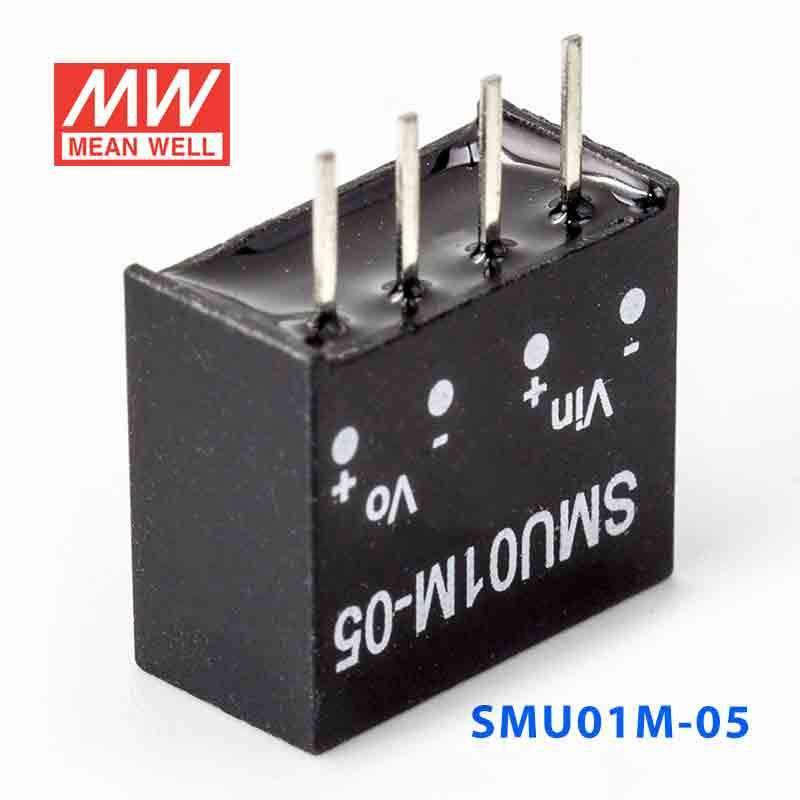

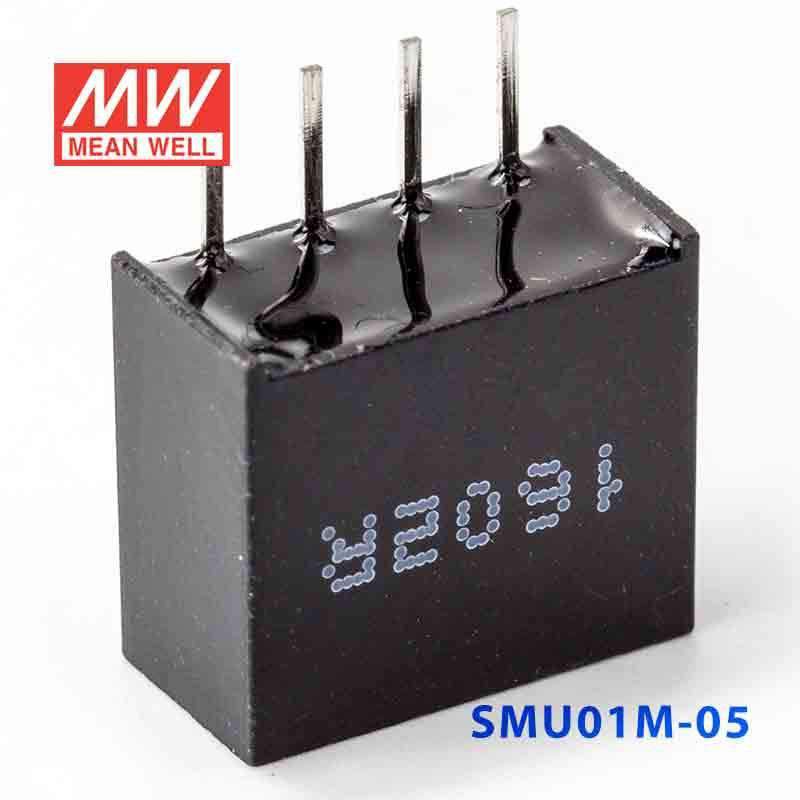

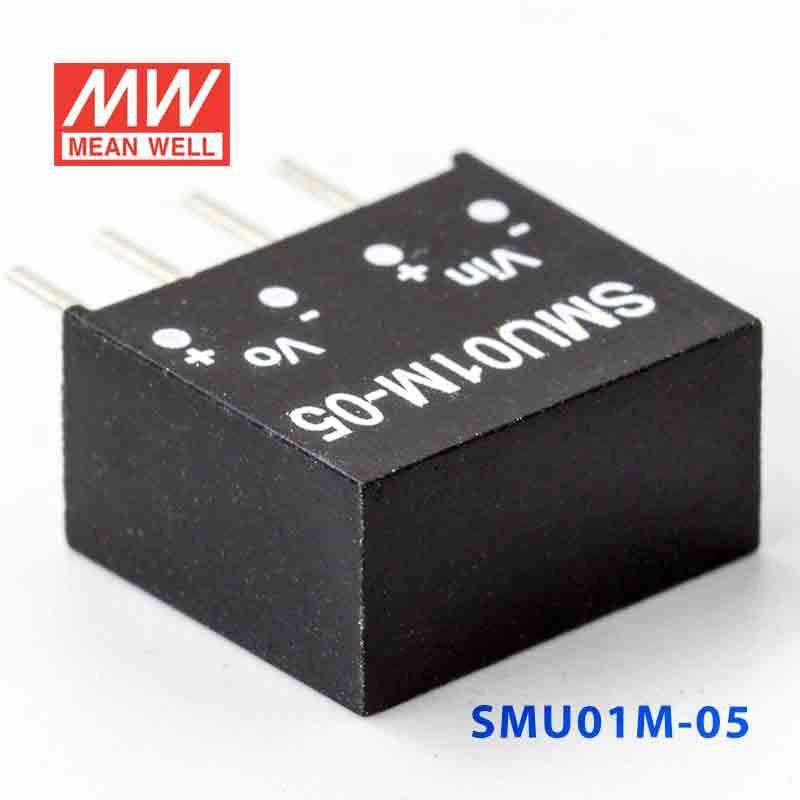

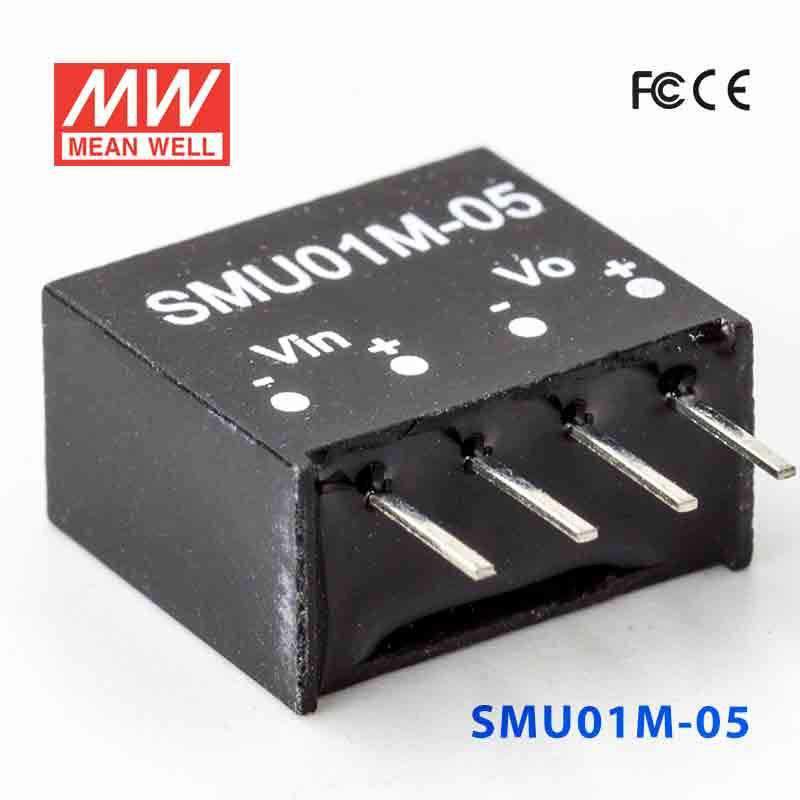

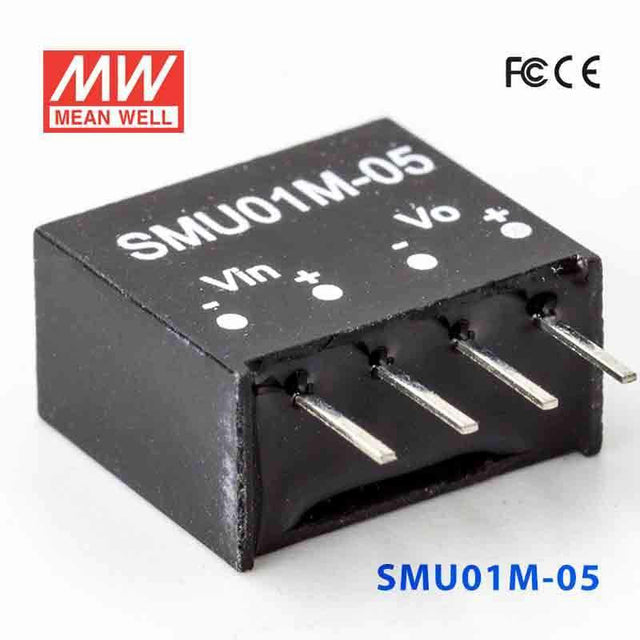

Mean Well SMU01M-05 DC-DC Converter - 1W - 10.8~13.2V in 5V out
Description
Description
The SMU01M is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSMU Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.46 in
-
Width0.4 in
-
Height0.24 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SMU01M-05 to derive a 5V rail inside a 12V-class control system?
Yes, this converter is designed for a 10.8~13.2VAC input and provides a constant 5V output. Its 1W rating means it fits low-power control, monitoring, or logic functions rather than larger loads.
Is the SMU01M-05 a fit for embedded monitoring boards in industrial equipment?
It can be used on embedded monitoring boards where the available source stays within 10.8~13.2VAC and the downstream load matches the 5V constant-voltage output. The 11.6 × 10.14 × 6.1 mm body is also useful for dense board layouts.
Would the SMU01M-05 work for low-power automation logic or microcontroller support circuits?
Yes, this model suits low-power automation electronics that need a regulated 5V rail from a 10.8~13.2VAC source. Selection should still be based on the 1W limit and the listed 200A output current for this SKU.
What is the difference between SMU01M-05 and the other SMU01M outputs?
The SMU01M series shares the same 1W platform and input range of 10.8~13.2VAC. The listed output options are 5V on SMU01M-05, 9V on SMU01M-09, 12V on SMU01M-12, and 15V on SMU01M-15, with output currents of 200A, 110A, 0.08A, and 0.07A respectively.
Can the SMU01M-05 be used in outdoor equipment cabinets or wide-temperature enclosures?
Its operating temperature range is -40°C to +90°C, which supports use in equipment exposed to broad temperature variation. No IP rating is provided in the specs, so the product page does not identify it as an outdoor-exposed part and it should be treated as a protected internal component.
