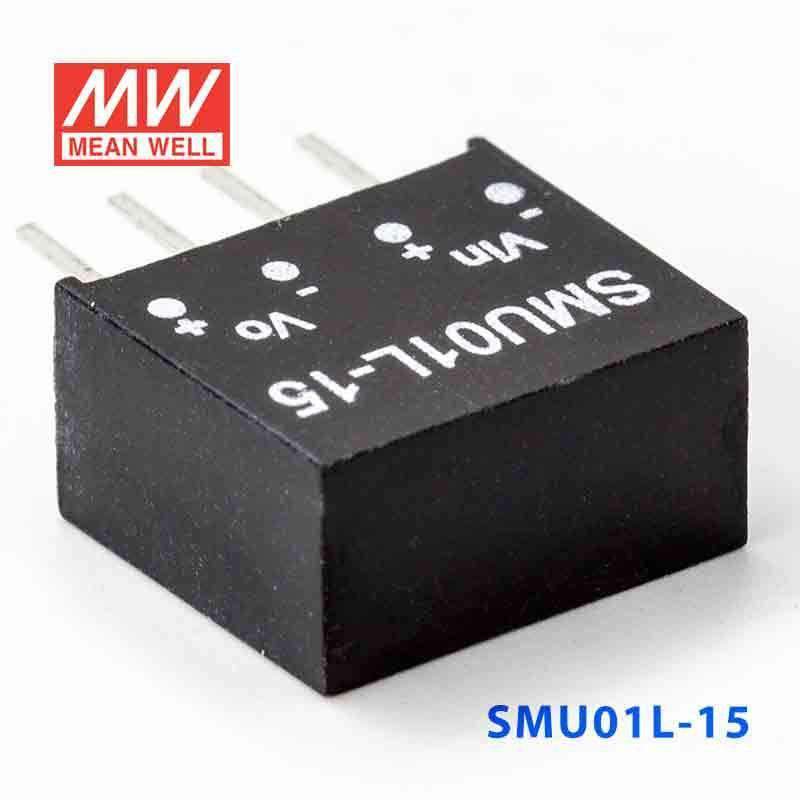

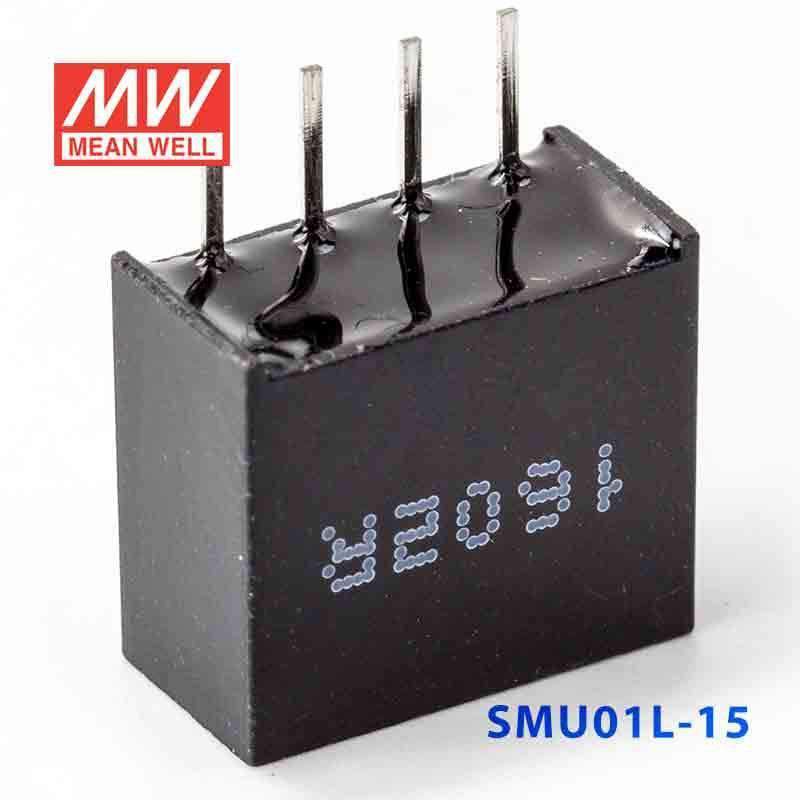

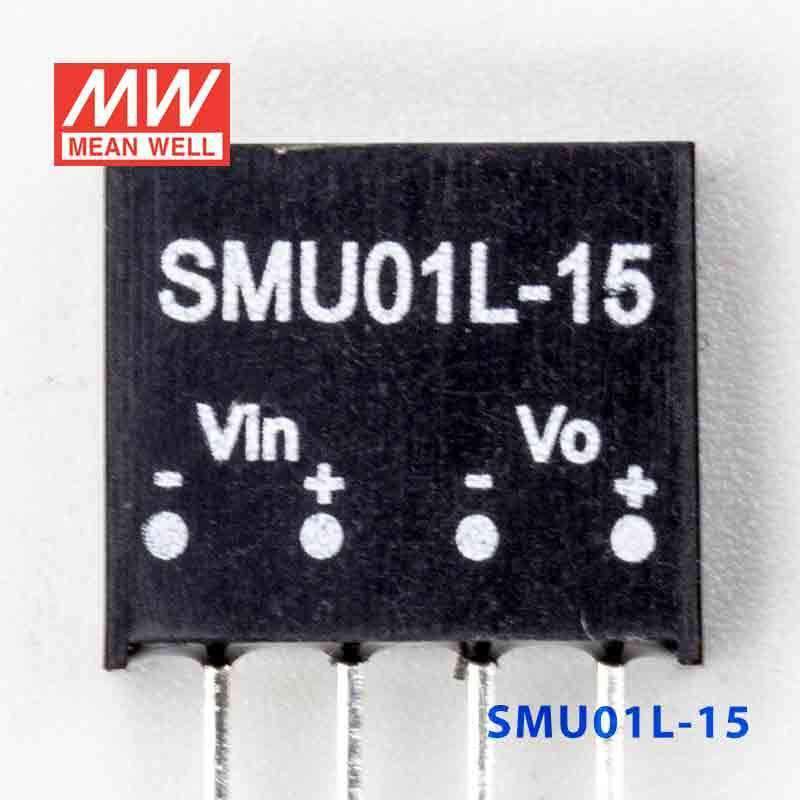

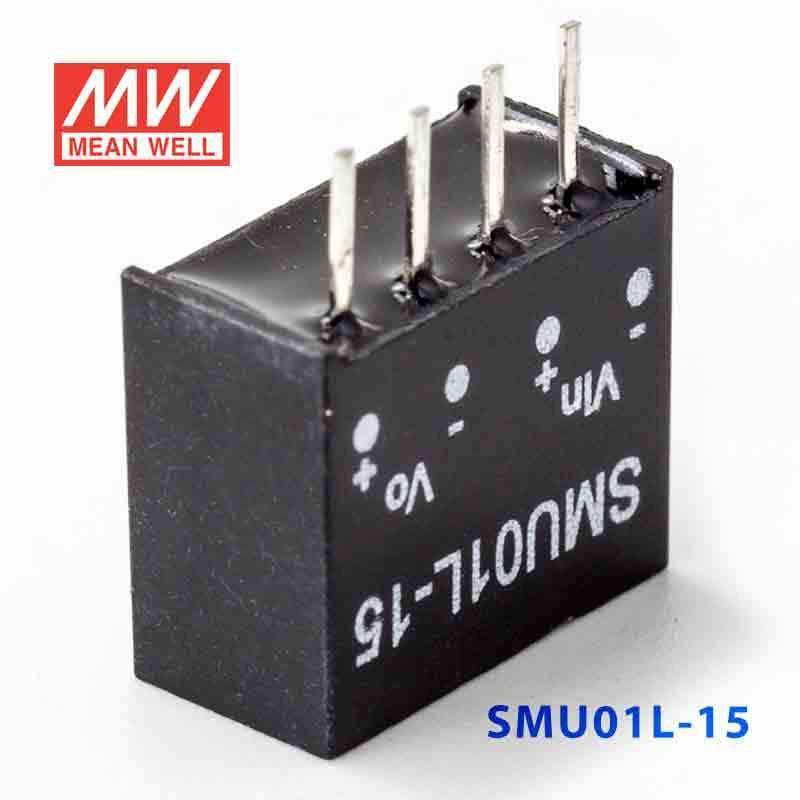

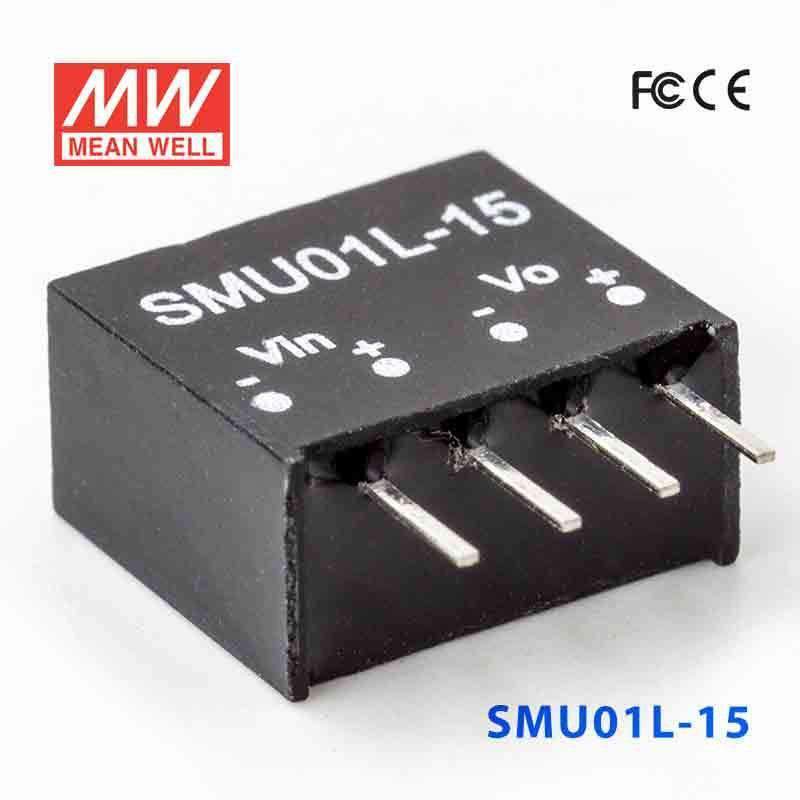

Mean Well SMU01L-15 DC-DC Converter - 1W - 4.5~5.5V in 15V out

SKU:
SMU01L-15

$5.01 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

1500VDC I/O isolation
Internal SMD technology
Operating temperature range -40~85oC without derating
Built-in EMI filter
Protection: Short circuit
Cooling by free air convection
Non-conductive plastic case
100% full load burn-in test
Low cost, high reliability
Dual in line package for SMA01
Industry standard pinout
2 years warranty

General Specification

Voltage set point accuracy ±2% (max.)
Line regulation ±1.2% (max.) for 1% input variation
Load regulation ±8% (max.)@20~100% load
Input reflected ripple 100mVp-p
Efficiency 80% (typical)
Short circuit protection Momentary
Switching frequency 100kHz (min.)
I/O isolation voltage 1500VDC (min.)
I/O isolation resistance 100MQ(min.)@500DC
Working temperature -40°C to +85°C
Storage temperature -55°C to +125°C
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Isolation capacitance 80pF (max.)
Dimension (LxWxH) (mm) 0.46""x 0.24""x 0.4""; 0.5""x 0.4""x 0.28""
Safety standards UL60950-1 approved

Specifications

  • Brand
    Mean Well
  • Series
    SMU Series
  • Power Rating
    1 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.06 Ampere
  • Input Voltage
    4.5V~5.5V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EMC,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    2 Year
  • Length
    0.46 in
  • Width
    0.4 in
  • Height
    0.24 in
  • Weight
    0 lb
