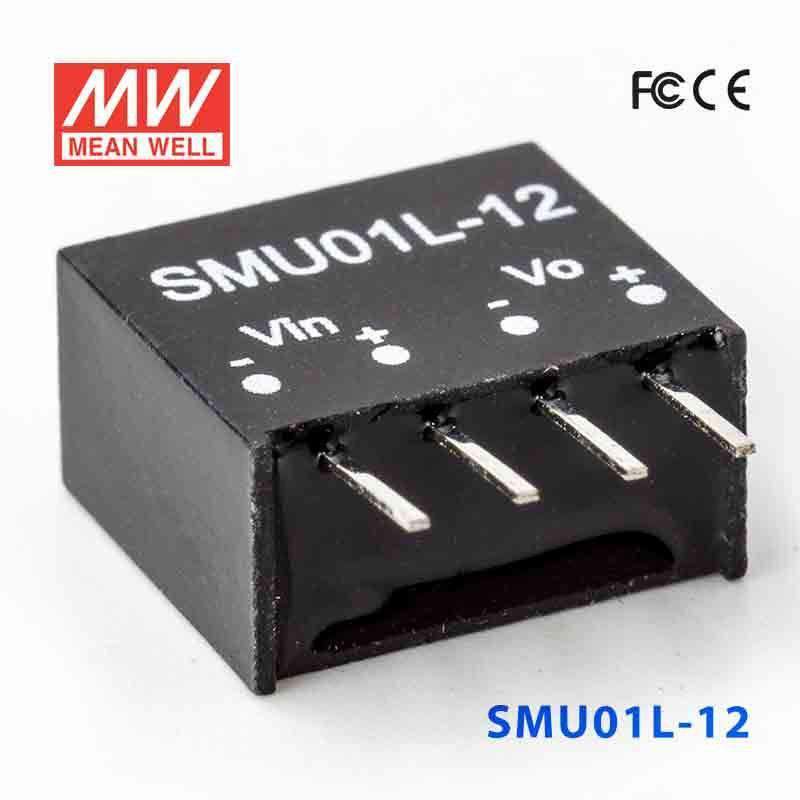

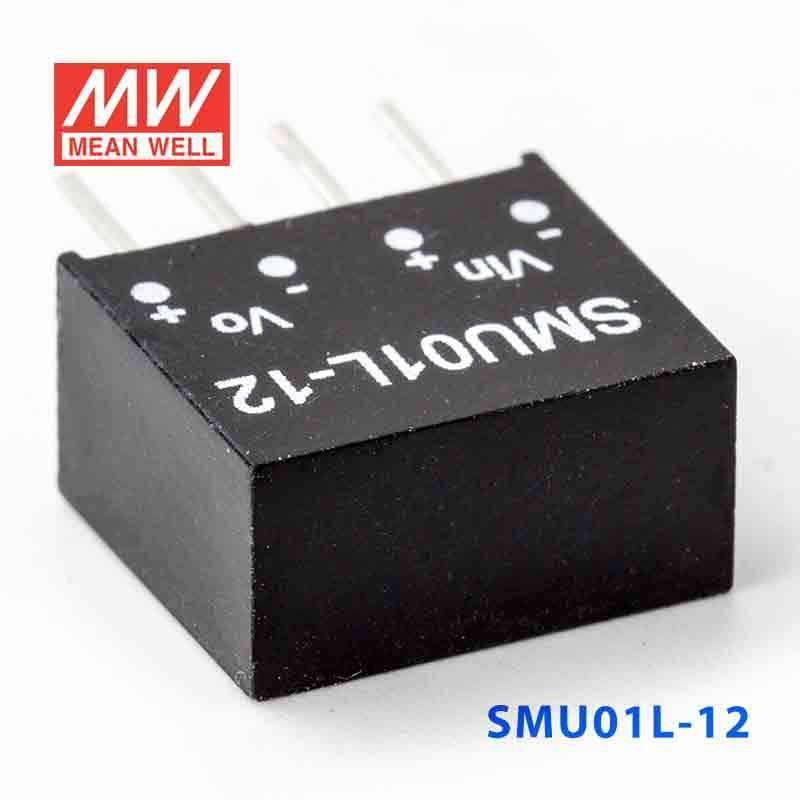

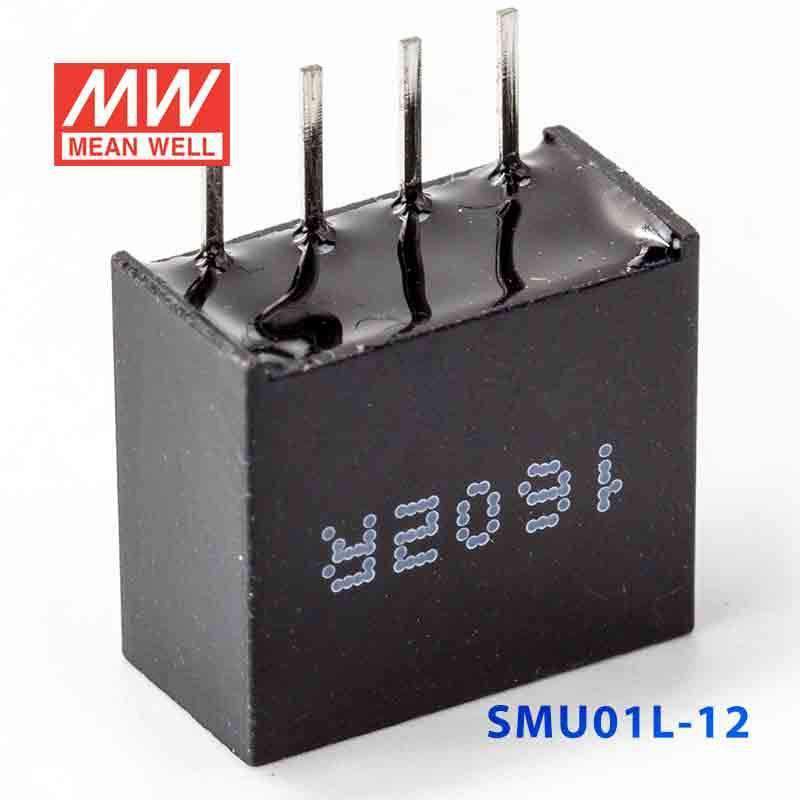

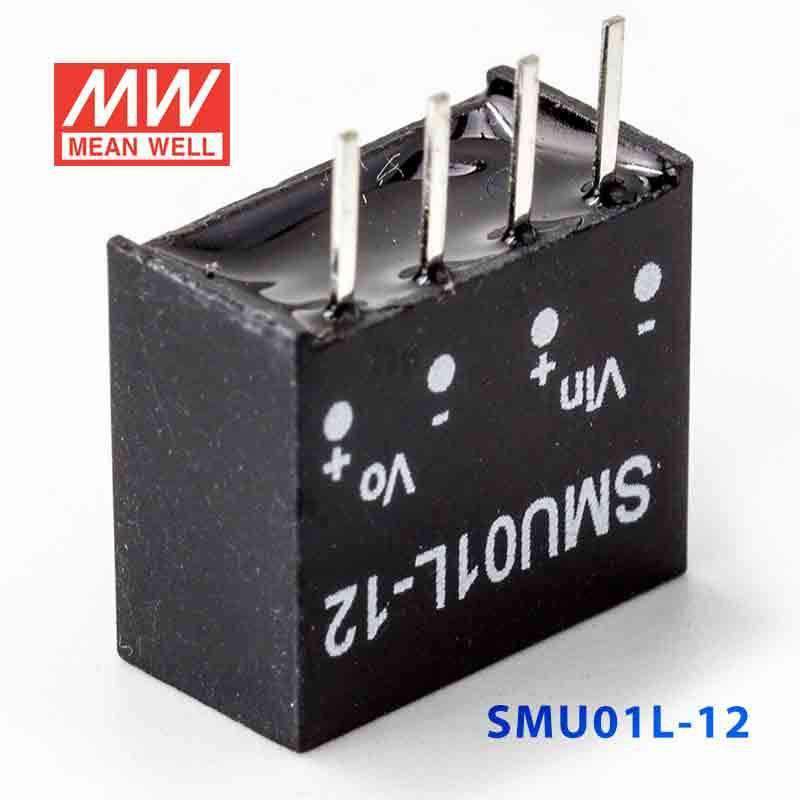

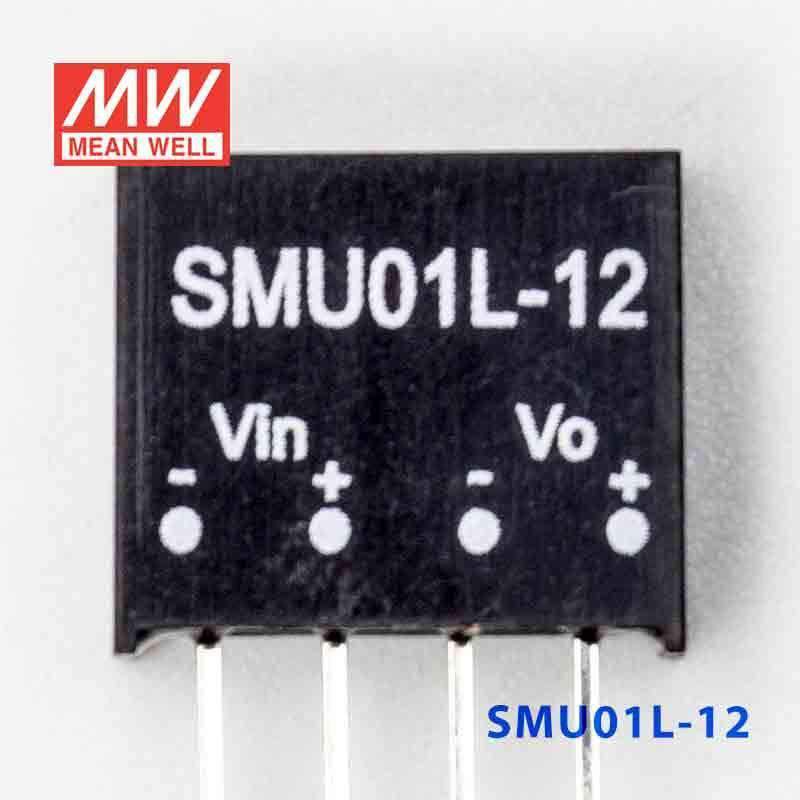

Mean Well SMU01L-12 DC-DC Converter - 1W - 4.5~5.5V in 12V out
Description
Description
The SMU01L is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSMU Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.46 in
-
Width0.4 in
-
Height0.24 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SMU01L-12 to power a small 12V control or sensing circuit from a near-5V source?
Yes, it is suited to low-power 12V control or sensing sections that need constant voltage output within the converter's 1W rating. The output is specified as 12V at 0.08A.
Is the SMU01L-12 appropriate for embedded electronics that need 12V from a 4.5~5.5V input range?
This model is intended for applications where the input is within 4.5~5.5V and the required output is 12V constant voltage. It is designed for low-power use, with a total power rating of 1W.
Can the SMU01L-12 fit compact industrial or IT hardware with limited PCB space?
It can be a good fit in compact hardware because the body measures 11.6 × 10.14 × 6.1 mm and weighs 0.0013 kg. Those dimensions support use in small embedded or control assemblies where only a light 12V rail is needed.
Is the SMU01L-12 suitable for outdoor or high-temperature environments?
The operating temperature range is -40°C to +90°C, so the temperature spec is broad enough for demanding equipment conditions. The product data provided does not list an IP rating, so direct outdoor, wet, or dust-exposed suitability is not specified.
How does the SMU01L-12 compare with the other SMU01L family members?
The listed SMU01L series options are all 1W converters. The siblings shown are SMU01L-05 at 5V and 200A, SMU01L-09 at 9V and 110A, SMU01L-12 at 12V and 0.08A, and SMU01L-15 at 15V and 0.07A.
