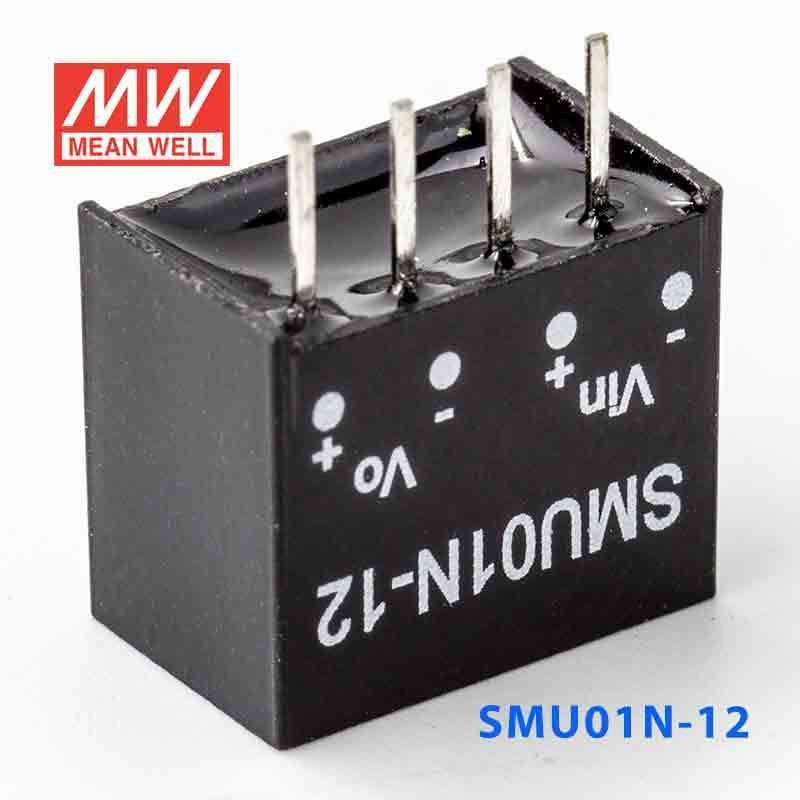

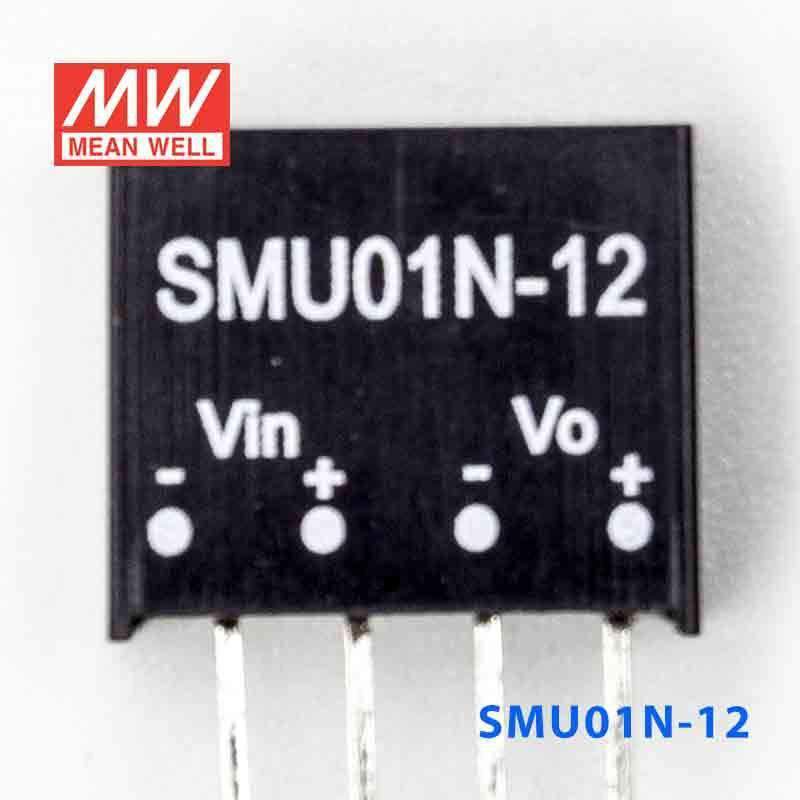

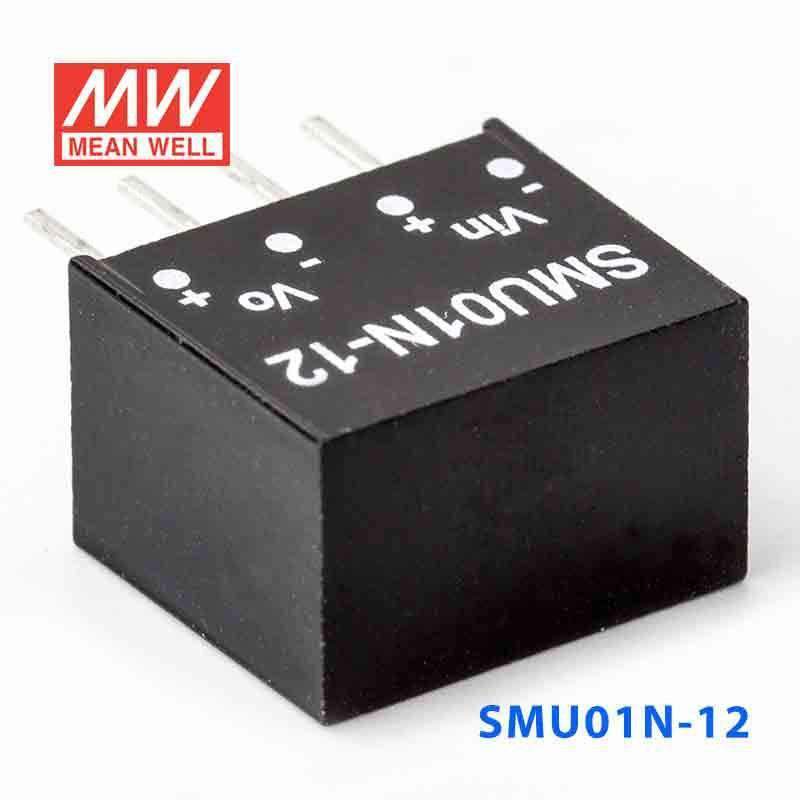

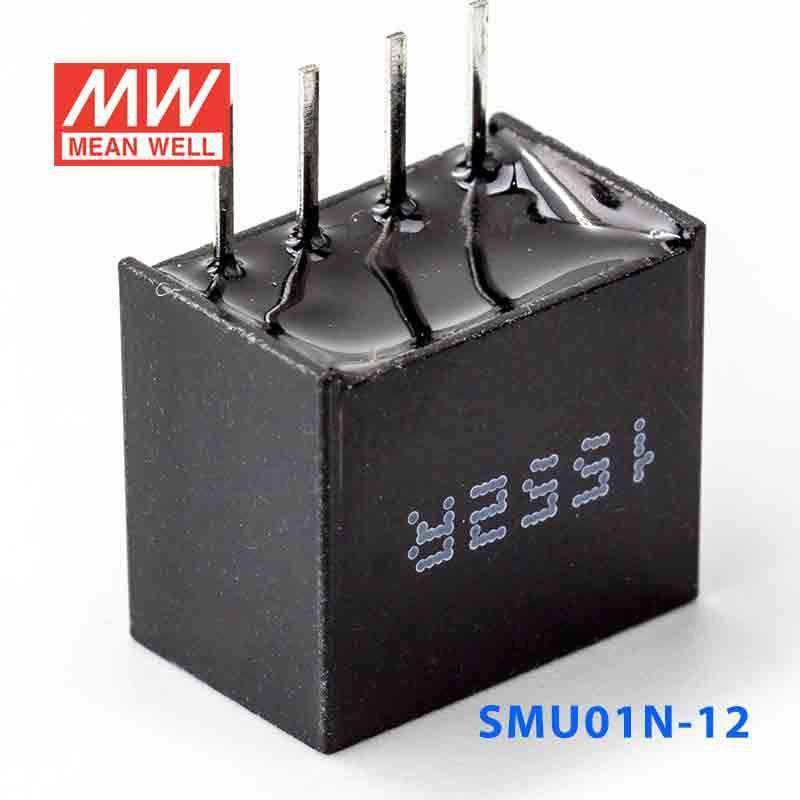

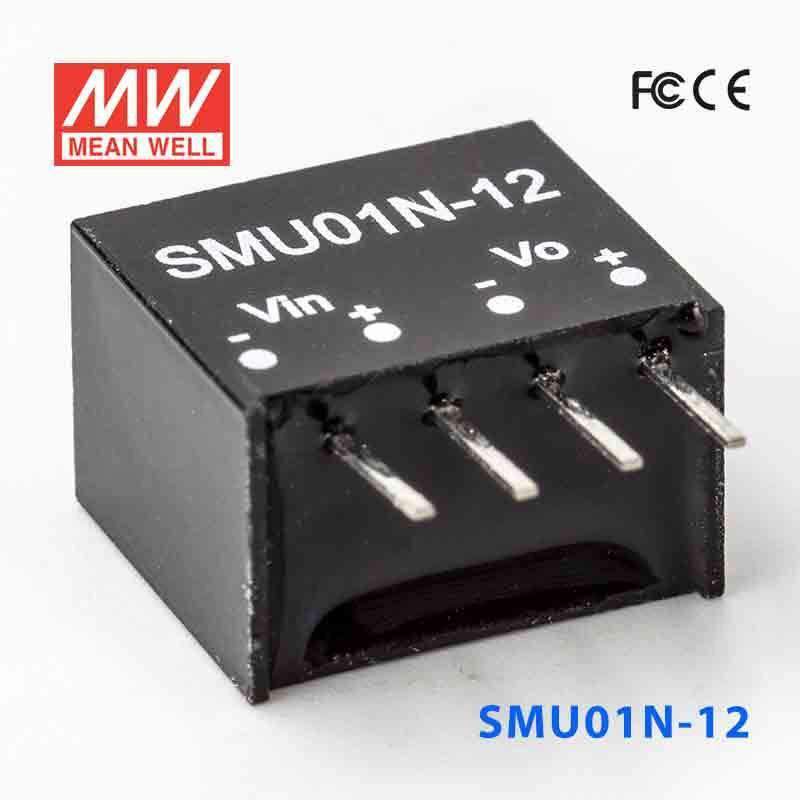

Mean Well SMU01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out

$5.01 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

1500VDC I/O isolation
Internal SMD technology
Operating temperature range -40~85oC without derating
Built-in EMI filter
Protection: Short circuit
Cooling by free air convection
Non-conductive plastic case
100% full load burn-in test
Low cost, high reliability
Dual in line package for SMA01
Industry standard pinout
2 years warranty

General Specification

Voltage set point accuracy ±2% (max.)
Line regulation ±1.2% (max.) for 1% input variation
Load regulation ±8% (max.)@20~100% load
Input reflected ripple 100mVp-p
Efficiency 80% (typical)
Short circuit protection Momentary
Switching frequency 100kHz (min.)
I/O isolation voltage 1500VDC (min.)
I/O isolation resistance 100MQ(min.)@500DC
Working temperature -40°C to +85°C
Storage temperature -55°C to +125°C
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Isolation capacitance 80pF (max.)
Dimension (LxWxH) (mm) 0.46""x 0.24""x 0.4""; 0.5""x 0.4""x 0.28""
