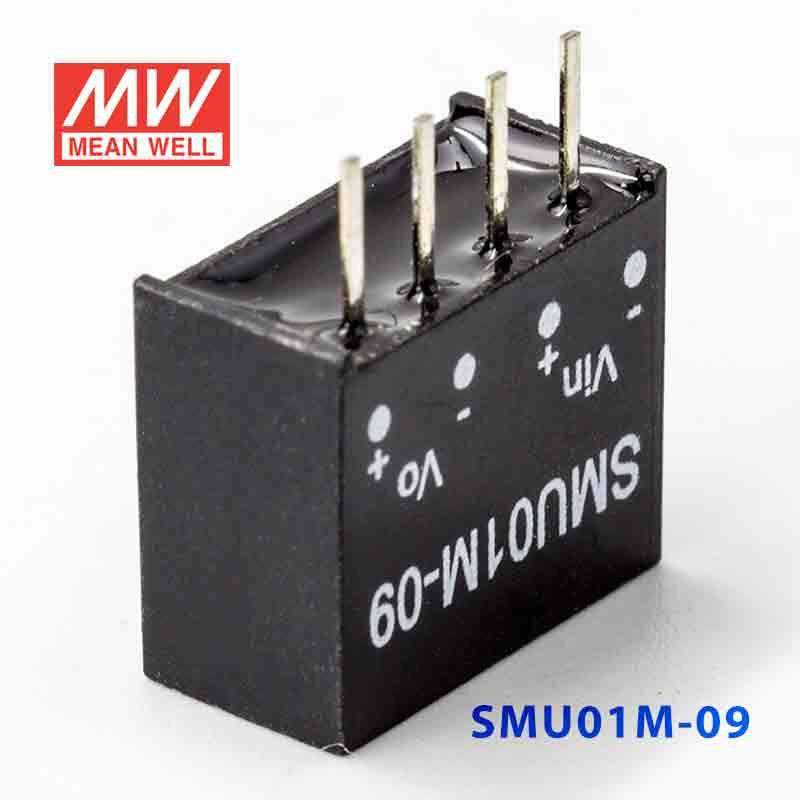

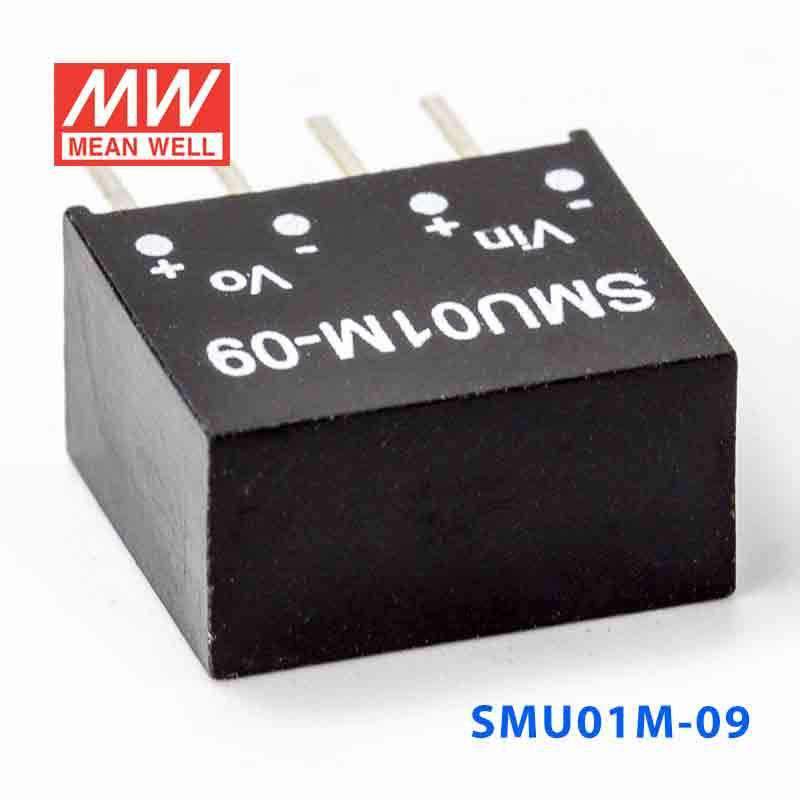

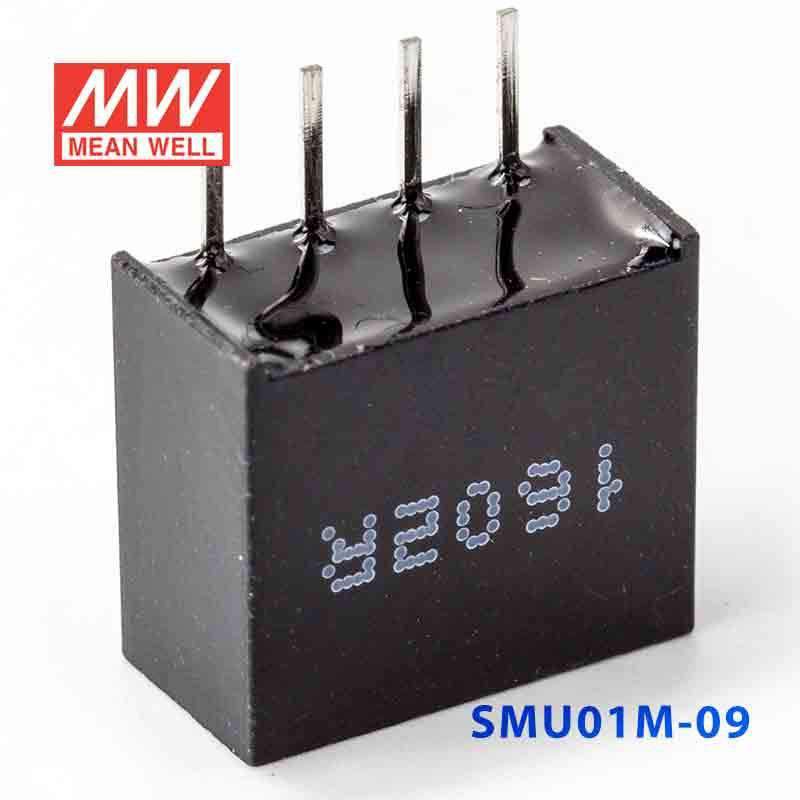

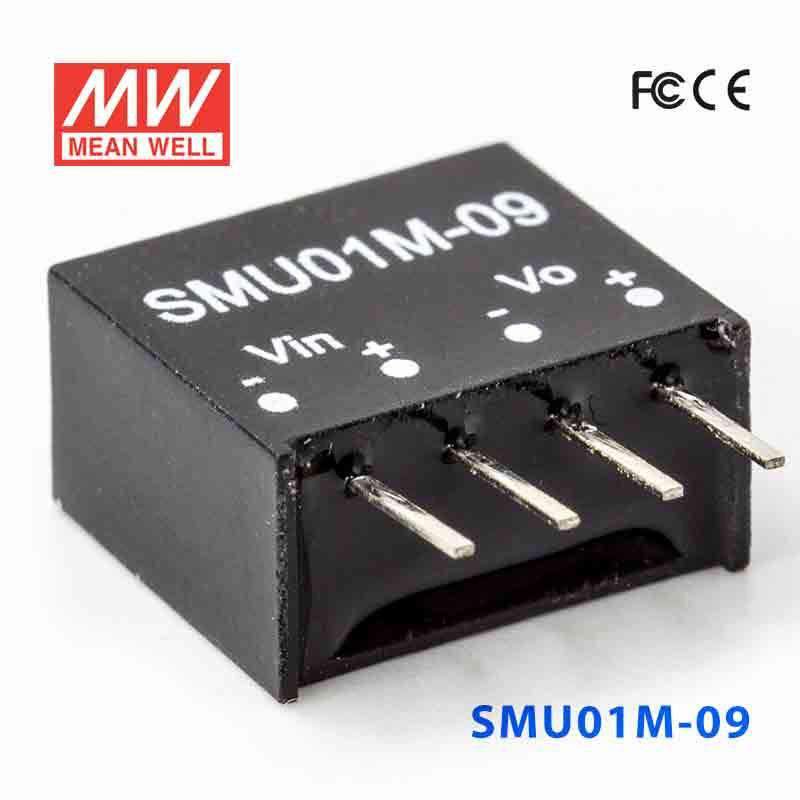

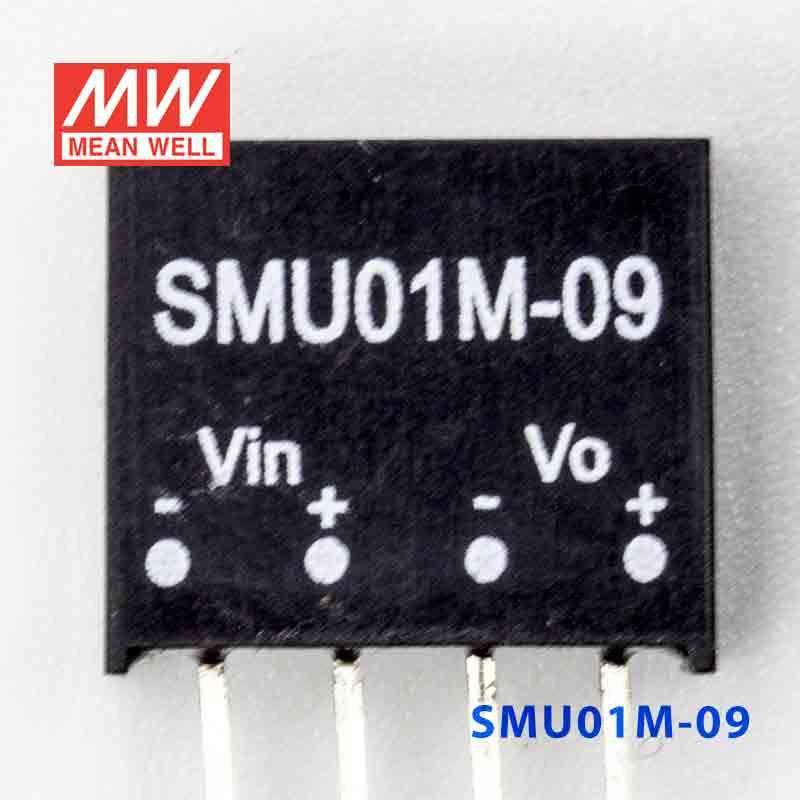

Mean Well SMU01M-09 DC-DC Converter - 1W - 10.8~13.2V in 9V out
Description
Description
The SMU01M is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSMU Series
-
Power Rating1 Watt
-
Output Voltage9 Volt
-
Rated Current0.11 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.46 in
-
Width0.4 in
-
Height0.24 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the SMU01M-09 power a 9V rail for embedded instrumentation or controller boards?
Yes, it is intended for low-power electronics that need a regulated 9V constant-voltage output from a 10.8~13.2VAC input. With a 1W rating and listed 110A output current, it is better for light auxiliary circuits than for larger devices.
Is the SMU01M-09 suitable for industrial sensor interface electronics?
It can be a fit for industrial sensor or interface electronics that require a compact 9V rail and remain within the 1W capacity. The small 11.6 × 10.14 × 6.1 mm dimensions help when space on the PCB is constrained.
Would this converter make sense in compact automation modules with limited weight and space?
Yes, the 0.0013 kg weight and 11.6 × 10.14 × 6.1 mm size make it practical in small automation modules and embedded assemblies. The application should still be limited to loads compatible with 9V output and the listed 110A current.
How does SMU01M-09 compare with the 5V, 12V, and 15V versions in the same series?
All listed SMU01M versions are 1W converters using the same 10.8~13.2VAC input family. The outputs are 5V, 9V, 12V, and 15V on SMU01M-05, SMU01M-09, SMU01M-12, and SMU01M-15, with listed output currents of 200A, 110A, 0.08A, and 0.07A respectively.
Is the SMU01M-09 rated for outdoor exposure or high/low ambient temperatures?
The specified operating range is -40°C to +90°C, so the electrical rating covers a wide ambient temperature span. No IP rating appears in the product specs, which means outdoor exposure protection is not stated and enclosure-level protection should be considered separately.
