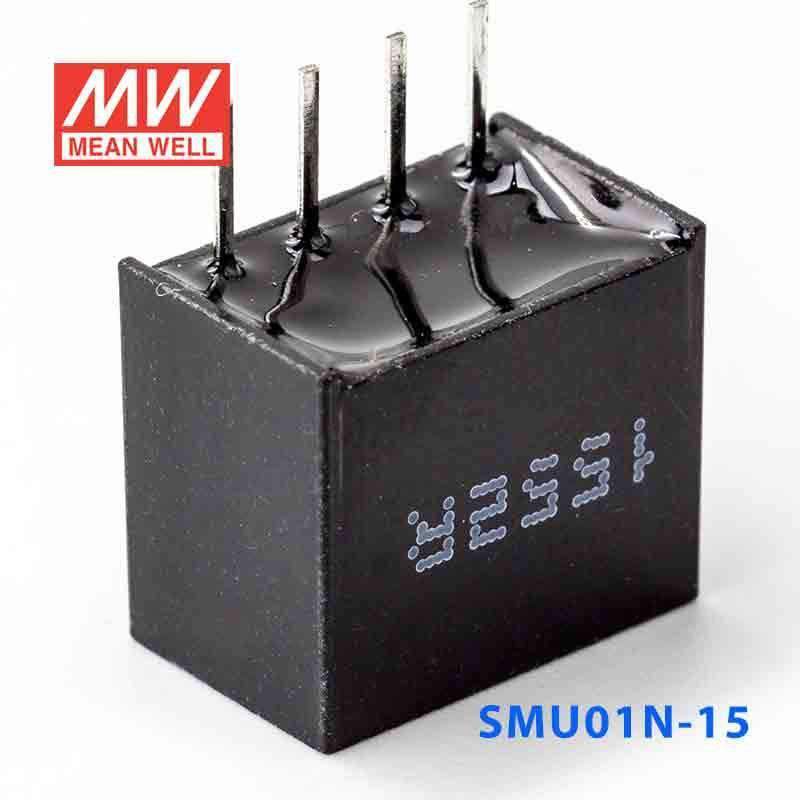

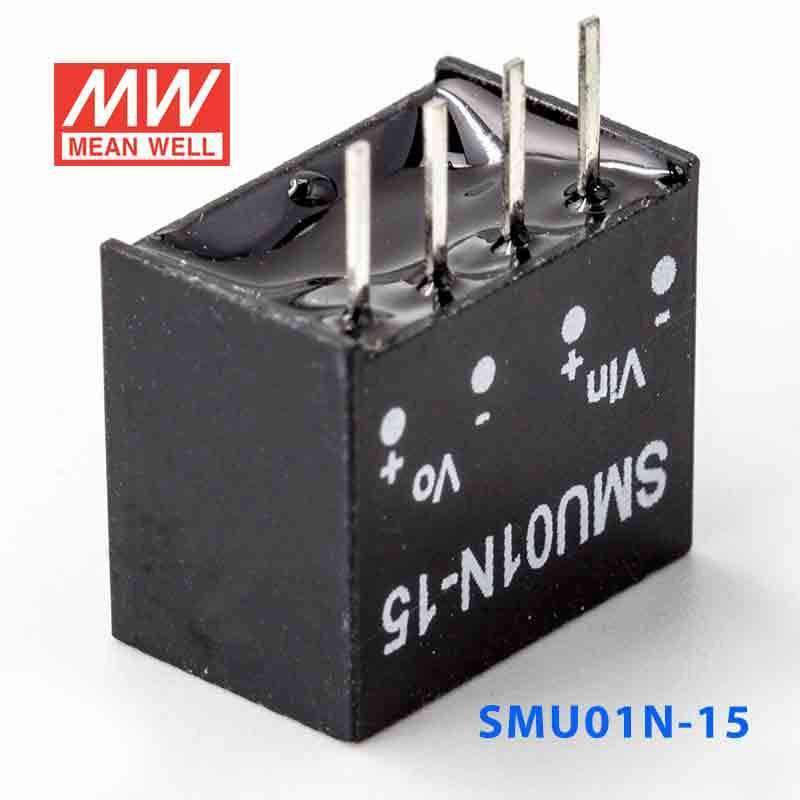

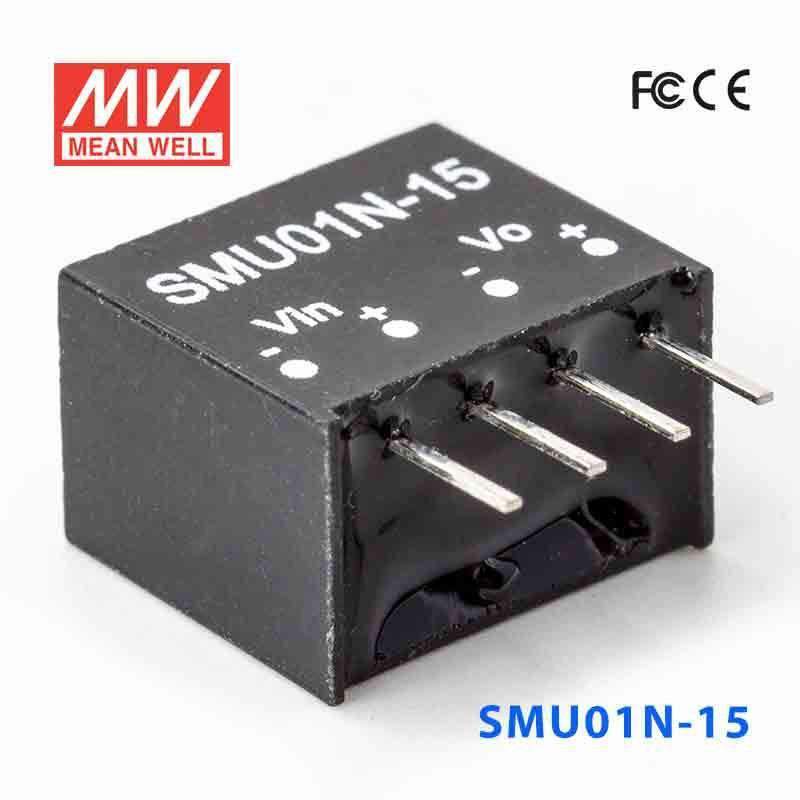

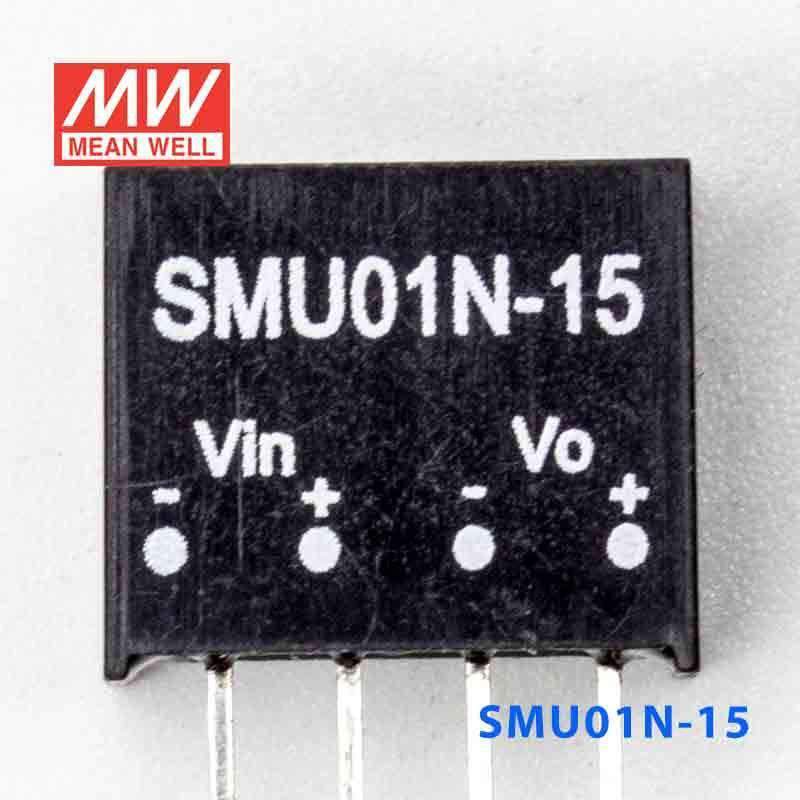

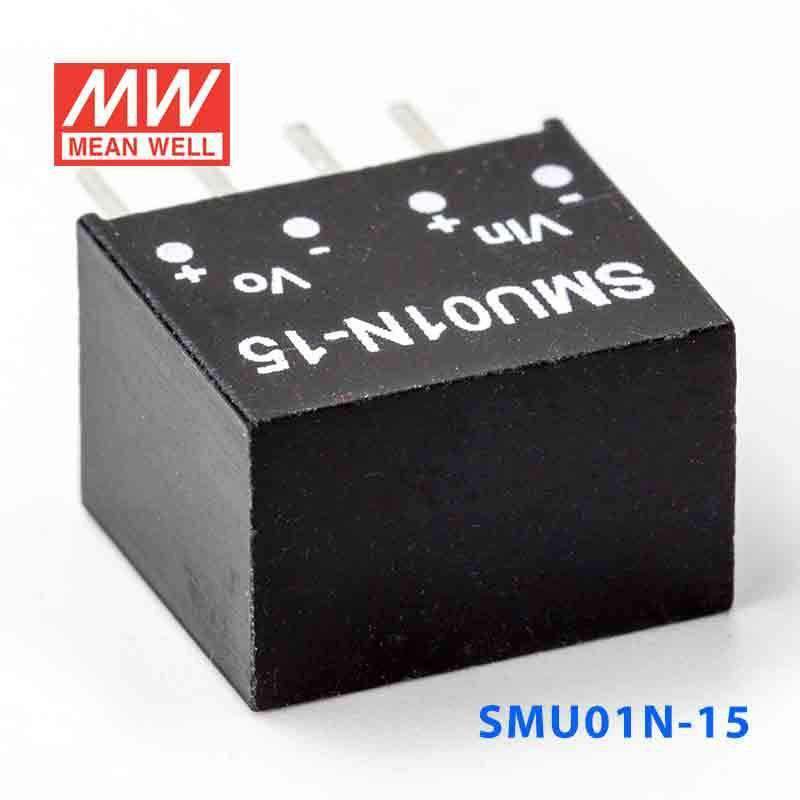

Mean Well SMU01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out
Description
Description
The SMU01N is a 1W Mean Well power converter (input range: 4.5~5.5V, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 4.5~5.5V
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSMU Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty2 Year
-
Length0.46 in
-
Width0.4 in
-
Height0.29 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SMU01N-15 for 15V auxiliary power in industrial control assemblies?
Yes, if the source is within 21.6~26.4VAC and the load needs a constant 15V output. With a 1W rating, it fits low-power auxiliary electronics, control sections, and embedded circuits rather than larger 15V devices.
Is the SMU01N-15 appropriate for compact embedded boards that need a 15V rail?
It is designed for dense board layouts because the body size is 11.6 × 10.14 × 7.4 mm and the weight is 0.0013 kg. That small footprint suits embedded and automation boards with limited space for a 15V converter.
Can this converter be used in industrial measurement or signal-processing equipment that runs on 15V?
Yes, it can support low-power 15V electronics when the available input is 21.6~26.4VAC. The constant-voltage design and 1W capacity make it appropriate for auxiliary measurement and processing circuits.
What is the difference between the SMU01N-15 and the other SMU01N versions?
The SMU01N-15 is the 1W model with a 15V output and a listed output current of 0.07A. Other SMU01N variants are SMU01N-05 at 1W and 5V with 200A, SMU01N-09 at 1W and 9V with 110A, and SMU01N-12 at 1W and 12V with 0.08A.
Can the SMU01N-15 handle wide-temperature industrial environments?
Its specified operating temperature range is -40°C to +90°C, which supports use in demanding ambient conditions. Since no IP rating appears in the listed specs, the finished enclosure determines whether the overall equipment is suitable for outdoor exposure.
