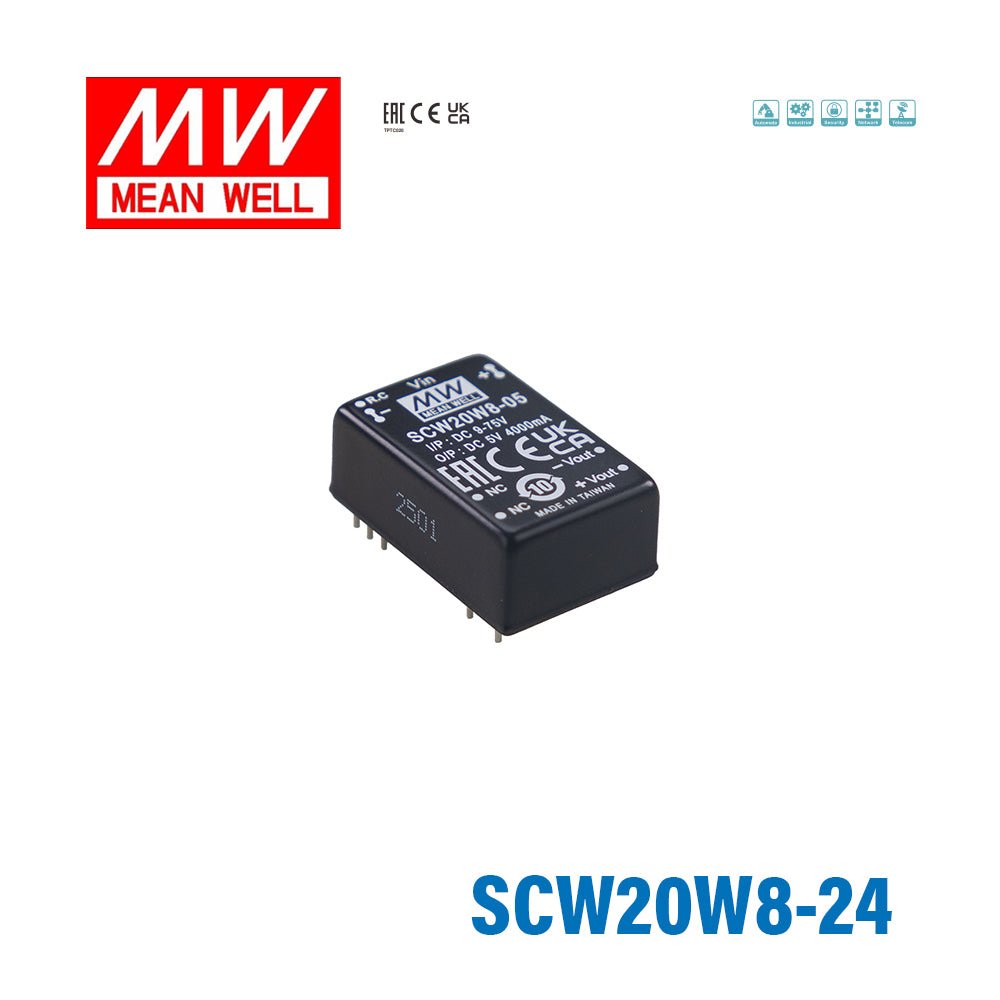

Mean Well SCW20W8-24 DC-DC Converter - 20W 9~75V DC in 24V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SCW20W8-24 DC-DC Converter - 20W 9~75V DC in 24V out
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +95℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 88%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating20 Watt
-
Output Voltage24 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What is the input and output range of the Mean Well SCW20W8-24?
The SCW20W8-24 is a 20W DC-DC converter with an ultra-wide 9 to 75V DC input range. It provides a regulated 24V DC output, which makes it suitable for systems that operate across multiple nominal DC bus voltages.
What types of applications is the SCW20W8-24 designed for?
This model is designed for DC-powered industrial and embedded equipment that needs regulated 24V output from a wide DC input range. Its compact DIP24 package and wide input window make it relevant for OEM, control, and modular power applications.
How does the SCW20W8-24 differ from narrower input DC-DC converters?
A key difference is its 8:1 ultra-wide input range of 9 to 75V DC, which gives it more flexibility than converters built for a narrow nominal input range. That can help buyers standardize on one model across equipment using different DC source voltages.
Is the Mean Well SCW20W8-24 suitable for harsh temperature environments?
Yes. The SCW20W8-24 has an operating temperature range of -40°C to +95°C, which supports use in demanding environmental conditions. Buyers should still confirm the full application environment and enclosure conditions against their system requirements.
What protection and isolation features does the SCW20W8-24 include?
This model includes protection for short circuit, overload, over voltage, and UVLO. It also provides 3KV DC input-to-output isolation, which is an important specification for systems that need electrical separation between input and output sides.
Does the SCW20W8-24 require a minimum load to operate properly?
No. Mean Well specifies that the SCW20W8-24 requires no minimum load, which can simplify use in applications with variable or light loading conditions. That can be useful in systems where demand changes during normal operation.
