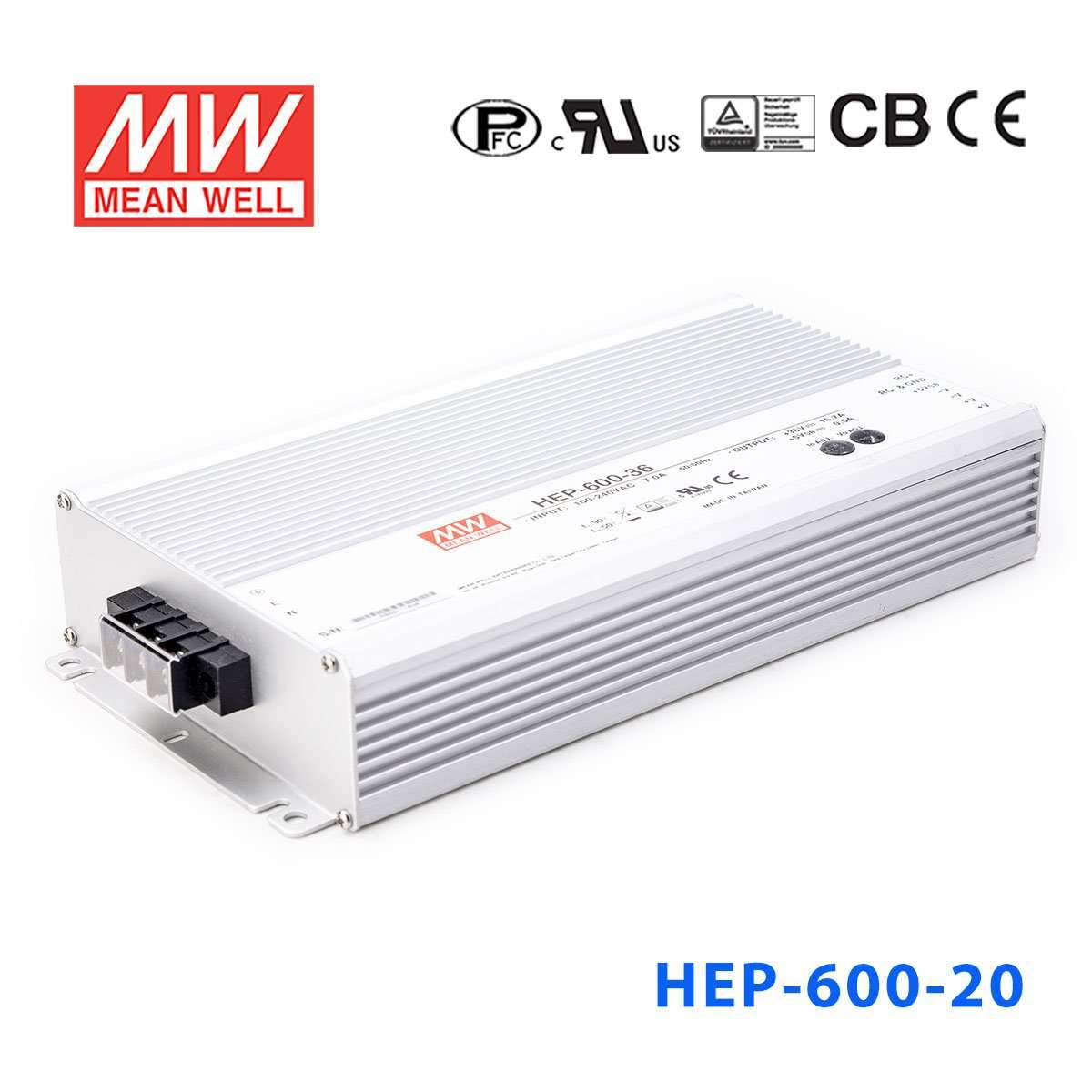

Mean Well HEP-600-20 Power Supply 560W 20V 28A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-20 Power Supply 560W 20V 28A
The HEP-600 is a 560W Mean Well power supply (input: 90~305VAC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage (max): 20V
- ✓ Rated output current: 28A
- ✓ Ingress protection: IP68
- ✓ Operating temperature: -40~+70°C
- ✓ Safety certifications: CB, CE, EAC, UL
- ✓ 6 year warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating560 Watt
-
Output Voltage20 Volt
-
Rated Current28 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-20 for 20V industrial or embedded equipment?
Yes, it is built for constant-voltage 20V DC applications and can deliver up to 28A and 560W. That makes it suitable for industrial and embedded equipment designed specifically for a 20V supply rail.
Is the HEP-600-20 suitable for 20V automation subsystems in harsh environments?
It can fit 20V automation subsystems that need a sealed constant-voltage supply and stay within 560W and 28A. The -40°C to +70°C operating range, fanless construction, and 10G vibration rating support use in rugged industrial conditions.
Can this model be used for 20V test equipment or specialized control hardware?
It is appropriate for 20V test, instrumentation, or control hardware that requires constant 20V DC and falls within the 28A output limit. The 90-305VAC input range also helps where the equipment may be deployed internationally or in facilities with varying AC input.
Is the HEP-600-20 suitable for outdoor or wet locations?
This version is rated IP68, so it is designed for demanding dusty and wet environments where a sealed enclosure is required. Together with the -40°C to +70°C operating range, that makes it suitable for tougher outdoor and industrial conditions than an IP65 version.
How does the HEP-600-20 differ from nearby HEP-600 voltage options?
The HEP-600-20 is rated 560W at 20V and 28A. In the same family, the nearby constant-voltage options are 15V at 540W and 36A, 24V at 600W and 25A, 30V at 600W and 20A, 36V at 601.2W and 16.7A, 42V at 600.6W and 14.3A, 48V at 600W and 12.5A, and 54V at 604.8W and 11.2A.
