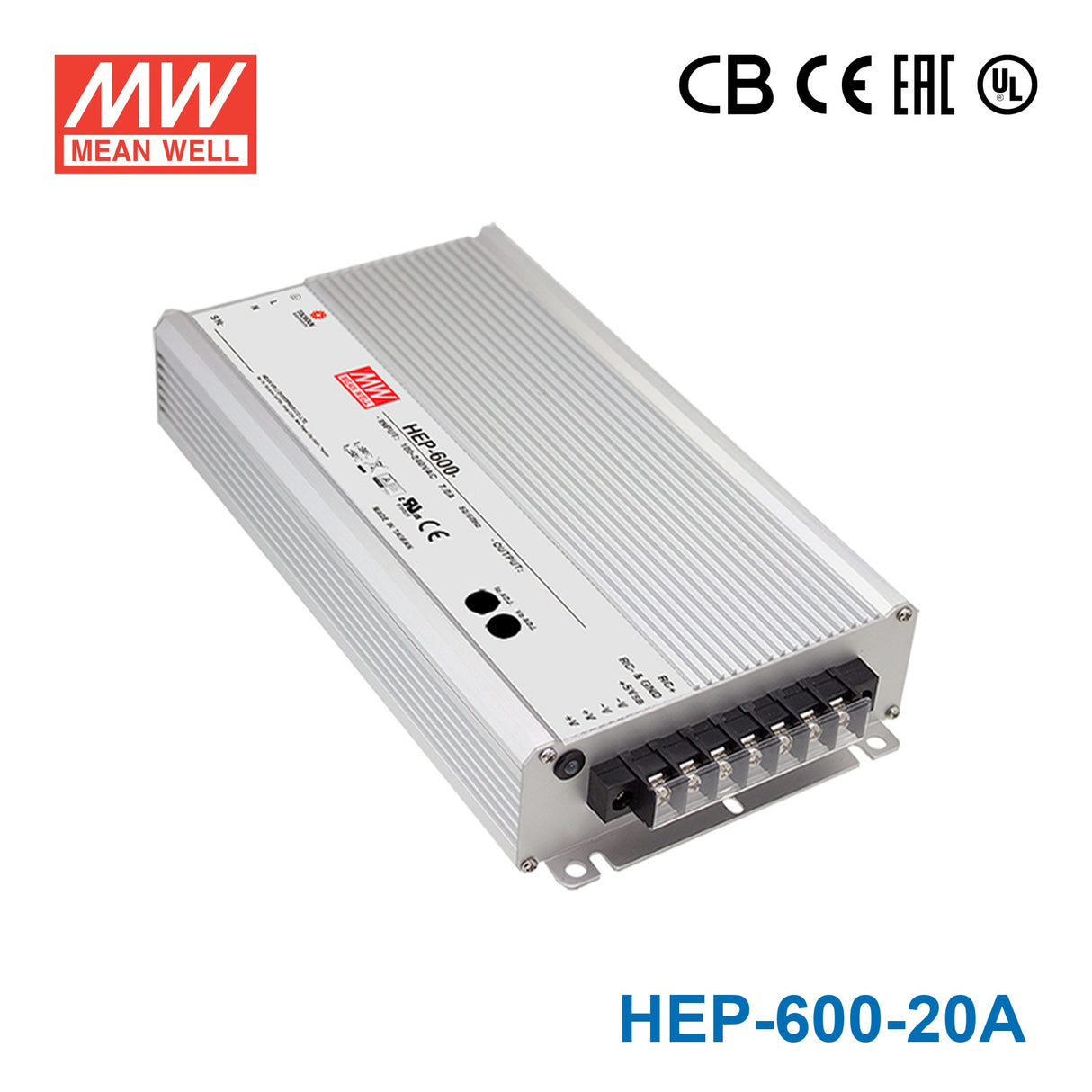

Mean Well HEP-600-20A Power Supply 560W 20V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-20A Power Supply 560W 20V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating560 Watt
-
Output Voltage20 Volt
-
Rated Current28 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-20A for a 20V industrial control or automation system?
Yes, if the equipment requires constant-voltage 20V DC. This model delivers up to 28A with 560W total output, so the combined 20V load needs to stay within those limits.
Is the HEP-600-20A a fit for 20V embedded systems or DC test fixtures?
It can be a fit for embedded or bench equipment that specifically calls for 20V constant-voltage power. The wide 90-305VAC input also helps when the same supply may be used across different AC input conditions.
Can this power multiple 20V devices in one machine or enclosure?
It can, as long as all connected 20V loads together stay at or below 28A and 560W. Because it is a constant-voltage supply, it is meant for systems designed for a 20V DC source rather than variable-output applications.
Is the HEP-600-20A suitable for outdoor or harsh-environment use?
This version is rated IP65 water-resistant and operates from -40°C to +70°C, so it is suited to demanding indoor areas and outdoor locations where water spray and dust are expected. It is not the IP68 version, so the listed rating supports water-resistant use rather than full submersion.
How does the HEP-600-20A compare with other HEP-600 series output options?
Within the HEP-600 family, the listed options are 480W 12V 40A, 540W 15V 36A, 560W 20V 28A, 600W 24V 25A, 600W 30V 20A, 601.2W 36V 16.7A, 600.6W 42V 14.3A, 600W 48V 12.5A, and 604.8W 54V 11.2A. The related HEP-600C models are 600W 14.4V 35A, 600W 28.8V 21A, and 600W 57.6V 10.5A.
