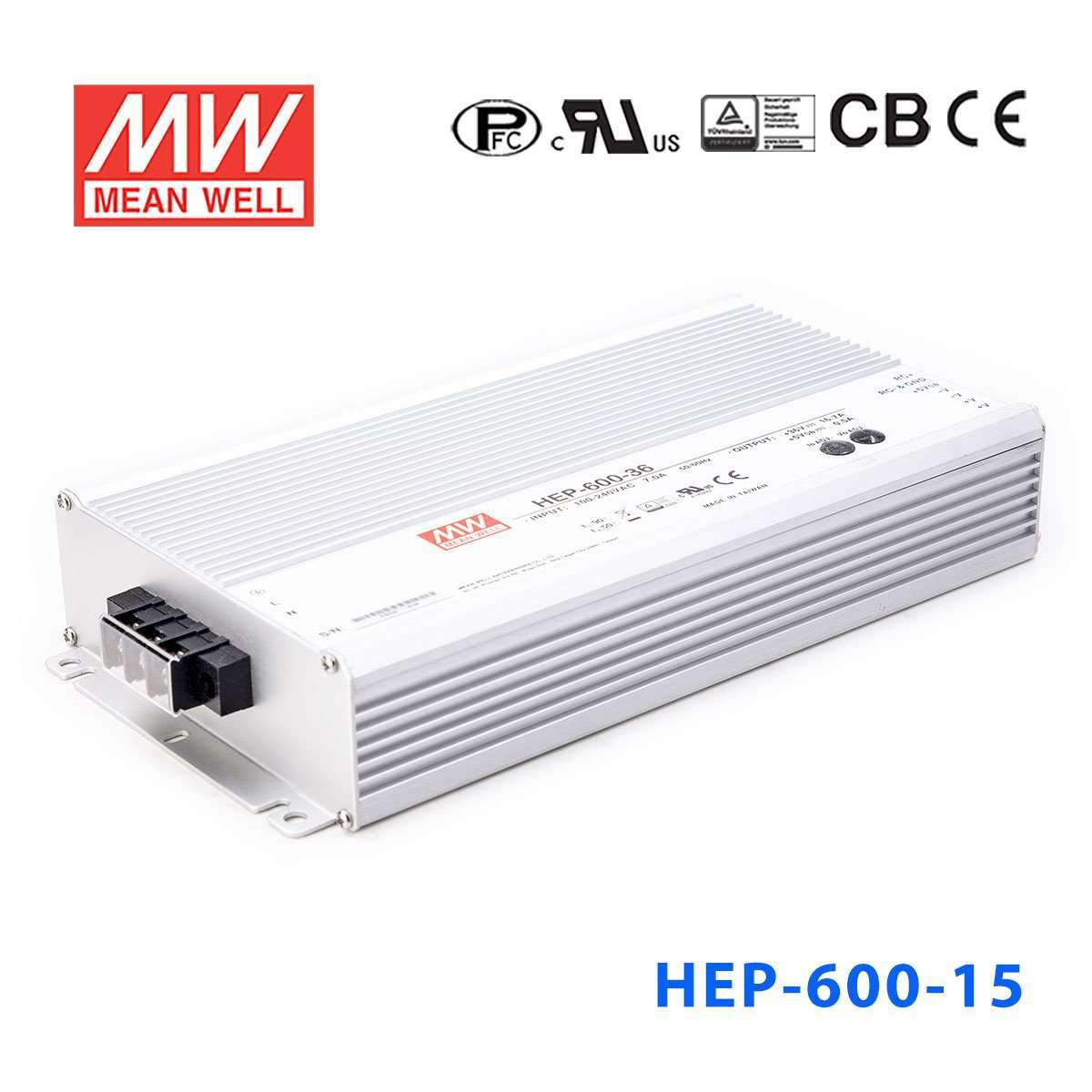

Mean Well HEP-600-15 Power Supply 540W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-15 Power Supply 540W 15V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating540 Watt
-
Output Voltage15 Volt
-
Rated Current36 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-15 for 15V industrial control equipment?
Yes, it is intended for constant-voltage 15V DC loads and can deliver up to 36A and 540W. That makes it suitable for industrial control assemblies, embedded hardware, and other 15V systems that need more capacity than smaller 15V supplies.
Is the HEP-600-15 suitable for 15V test, measurement, or instrumentation systems?
It can fit 15V instrumentation and test equipment that requires a stable constant-voltage output and remains within 36A and 540W. The wide 90-305VAC input also helps in installations where AC input conditions may vary.
Can this power supply run 15V embedded or automation subsystems in harsh locations?
It is designed for harsh environments with a fanless build, 10G vibration resistance, and an operating range of -40°C to +70°C. Those characteristics make it a strong match for 15V embedded or automation subsystems installed in rugged industrial settings.
Is the HEP-600-15 suitable for outdoor use?
This model carries an IP68 rating, so it is suited to dusty and wet environments where a sealed enclosure is required. Combined with its -40°C to +70°C operating range, it is a better fit for exposed outdoor conditions than a lower-rated enclosure.
What are the main voltage options in the HEP-600 family if I need something other than 15V?
In the HEP-600 range, the listed constant-voltage options are 12V at 480W and 40A, 15V at 540W and 36A, 20V at 560W and 28A, 24V at 600W and 25A, 30V at 600W and 20A, 36V at 601.2W and 16.7A, 42V at 600.6W and 14.3A, 48V at 600W and 12.5A, and 54V at 604.8W and 11.2A. The family also includes HEP-600C versions at 14.4V and 35A, 28.8V and 21A, and 57.6V and 10.5A, all rated 600W.
