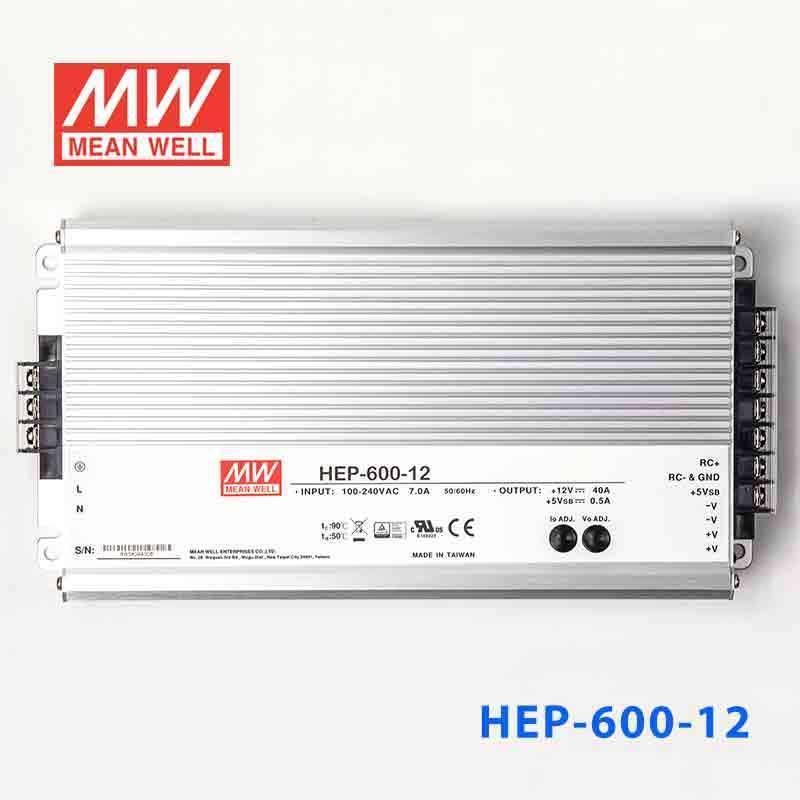

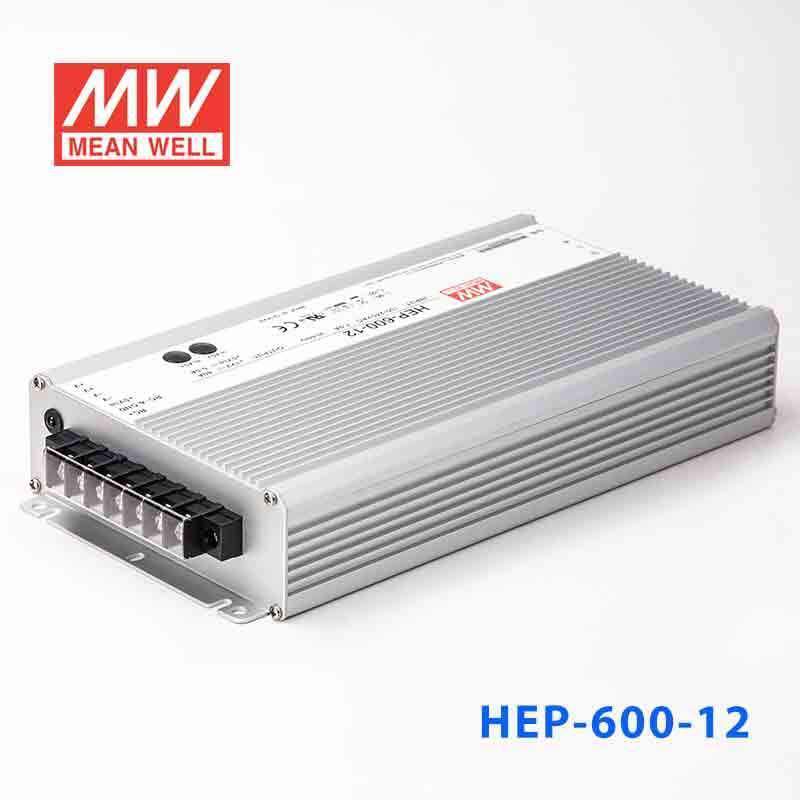

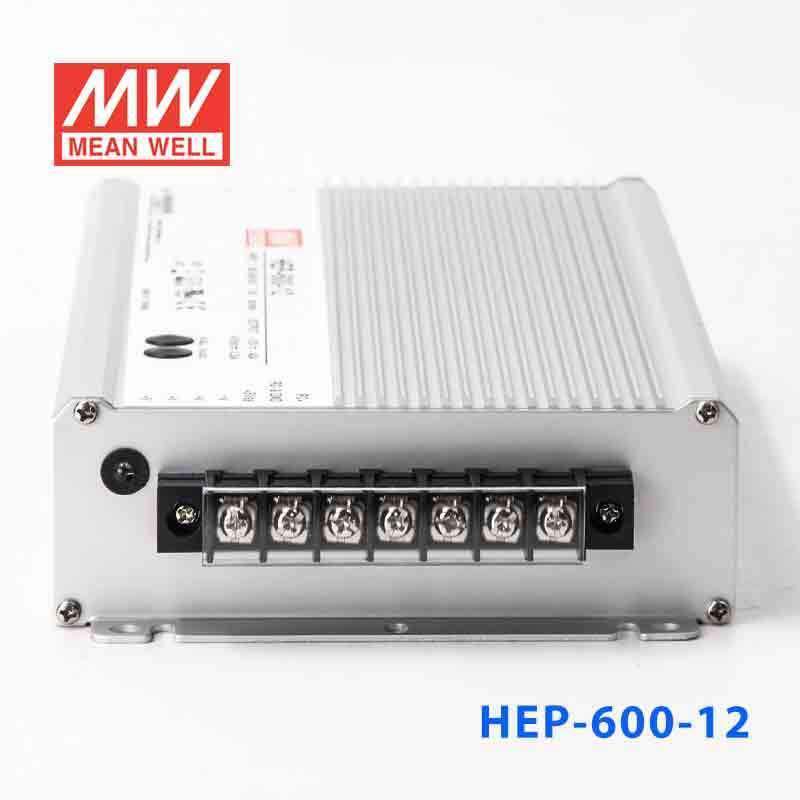

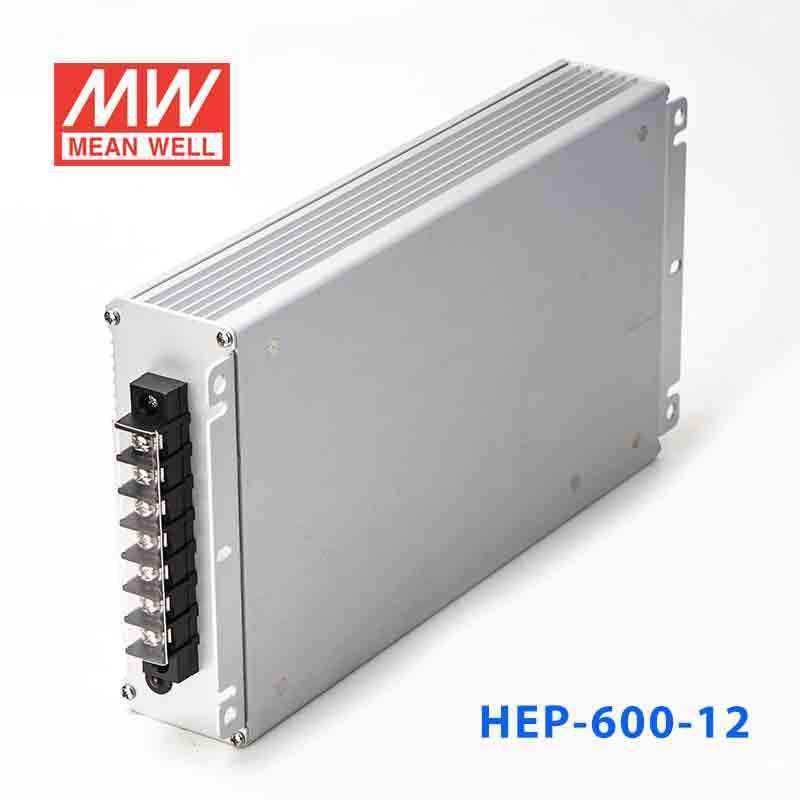

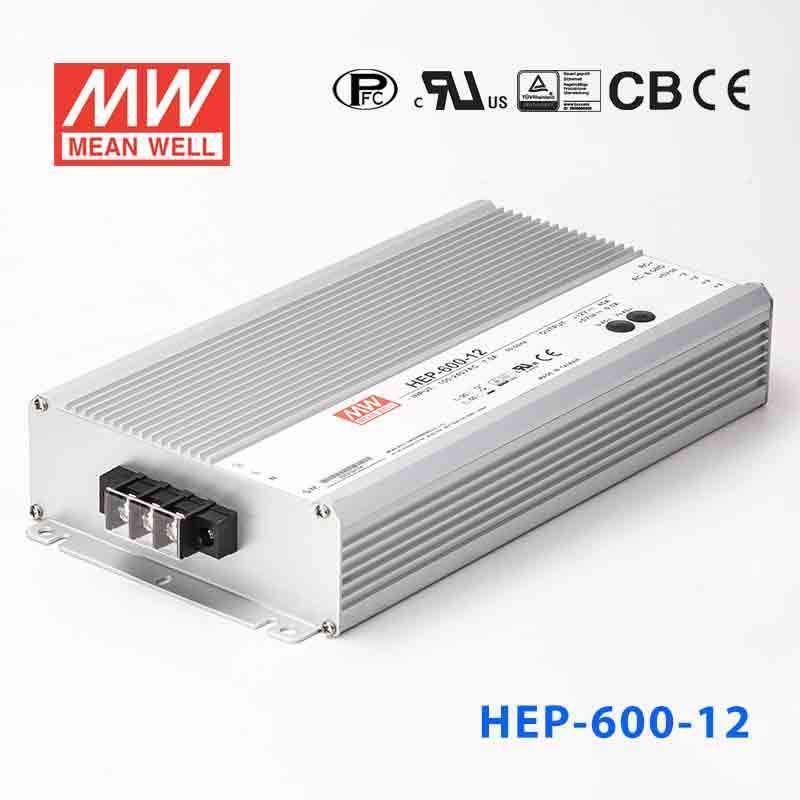

Mean Well HEP-600-12 Power Supply 480W 12V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-12 Power Supply 480W 12V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-12 for a large 12V CCTV or security system?
Yes, it can fit 12V security and surveillance systems that need a constant 12V output and up to 40A. With 480W total power, it is better suited to larger 12V loads than smaller 12V supplies in the same series.
Is this power supply suitable for 12V industrial automation or control equipment?
It can be used for 12V industrial controls, relays, PLC-related accessories, and other embedded equipment that require constant 12V DC and stay within 40A and 480W. The wide 90-305VAC input and -40°C to +70°C operating range make it relevant for demanding industrial environments.
Can the HEP-600-12 power 12V LED signage or outdoor low-voltage lighting systems?
It is appropriate for 12V constant-voltage LED signage and low-voltage lighting systems when the total load stays within 480W and 40A. The IP68 rating also makes it a better fit for exposed or wet locations than an indoor-only enclosure.
Is the HEP-600-12 a good choice for mobile or vibration-prone 12V equipment?
It is designed for harsh conditions with a fanless design and 10G vibration resistance, so it can fit 12V equipment used in rugged industrial settings. Buyers usually choose it when they need 12V constant voltage, 480W capacity, and a sealed metal case.
How does the HEP-600-12 compare with other HEP-600 series models?
Within the HEP-600 family, the 12V versions are HEP-600-12 and HEP-600-12A at 480W and 40A, the 15V versions are HEP-600-15 and HEP-600-15A at 540W and 36A, and the 20V versions are HEP-600-20 and HEP-600-20A at 560W and 28A. Higher-voltage options are HEP-600-24 and HEP-600-24A at 600W and 25A, HEP-600-30 and HEP-600-30A at 600W and 20A, HEP-600-36 and HEP-600-36A at 601.2W and 16.7A, HEP-600-42 and HEP-600-42A at 600.6W and 14.3A, HEP-600-48 and HEP-600-48A at 600W and 12.5A, and HEP-600-54 and HEP-600-54A at 604.8W and 11.2A. The constant-current variants are HEP-600C-12 at 600W, 14.4V, and 35A, HEP-600C-24 at 600W, 28.8V, and 21A, and HEP-600C-48 at 600W, 57.6V, and 10.5A.
