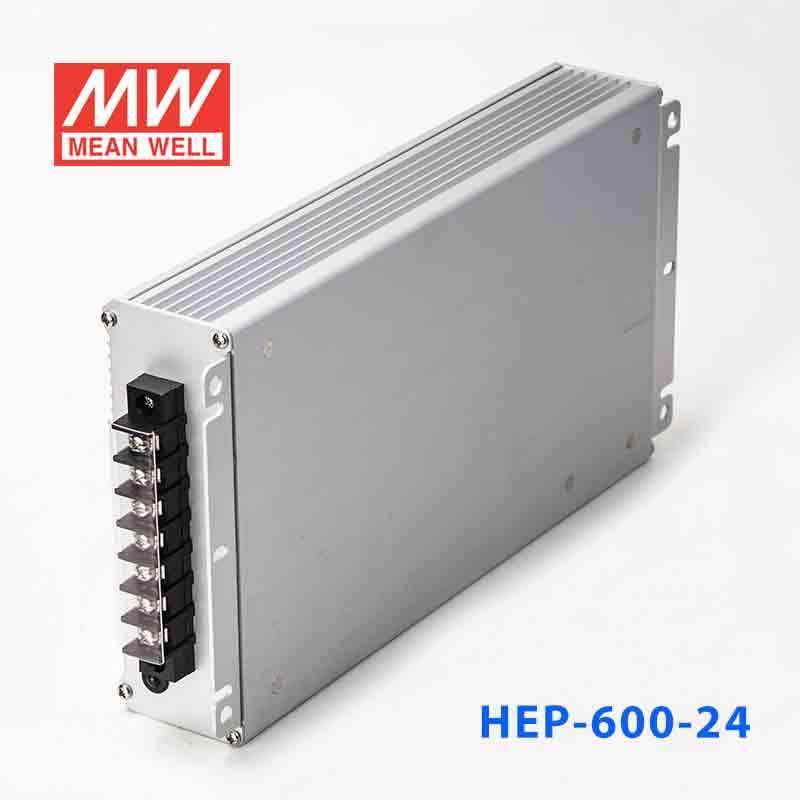

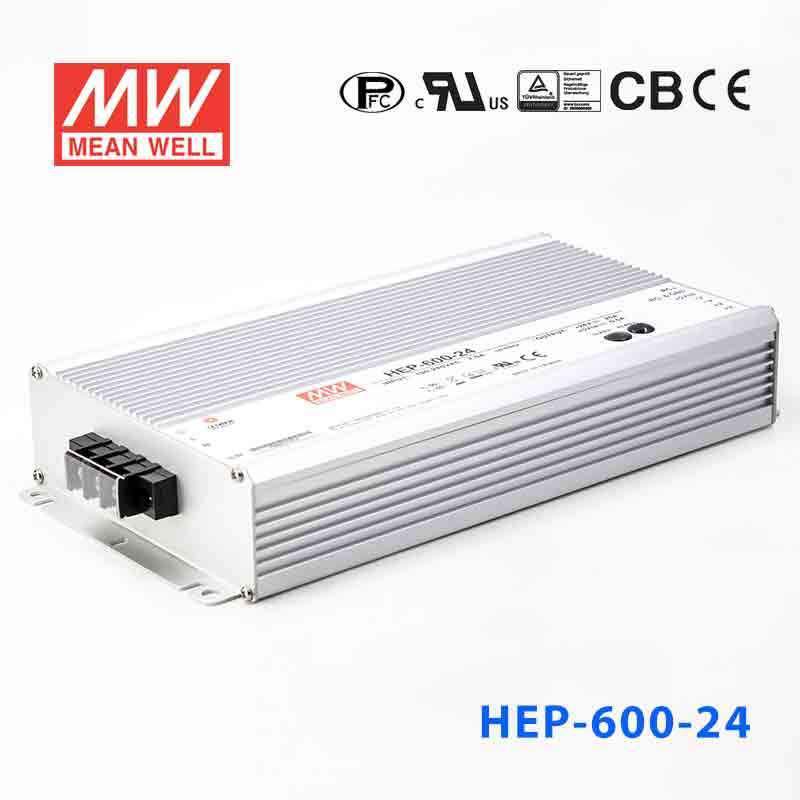

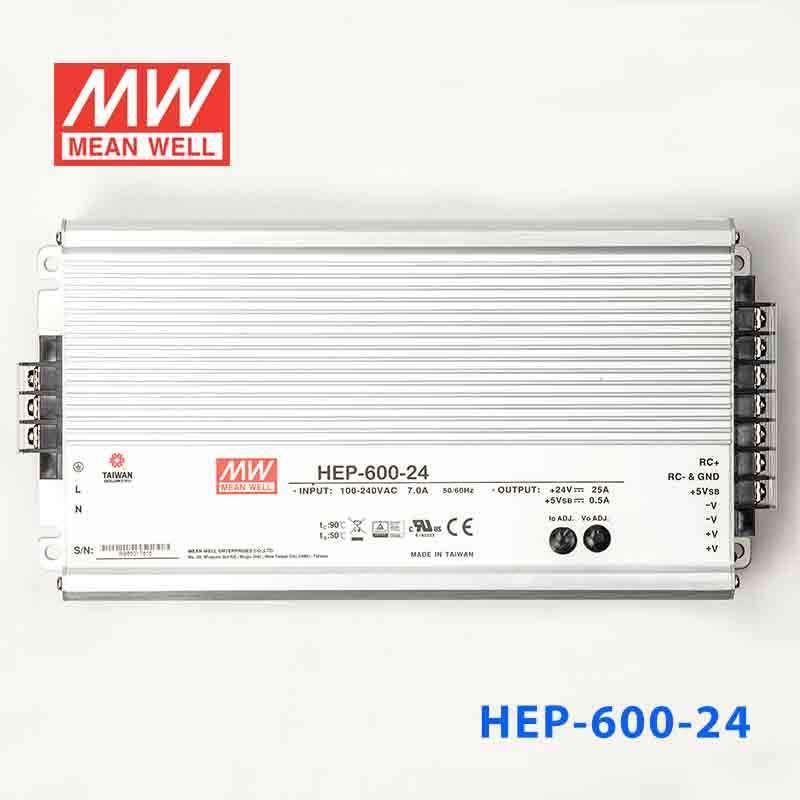

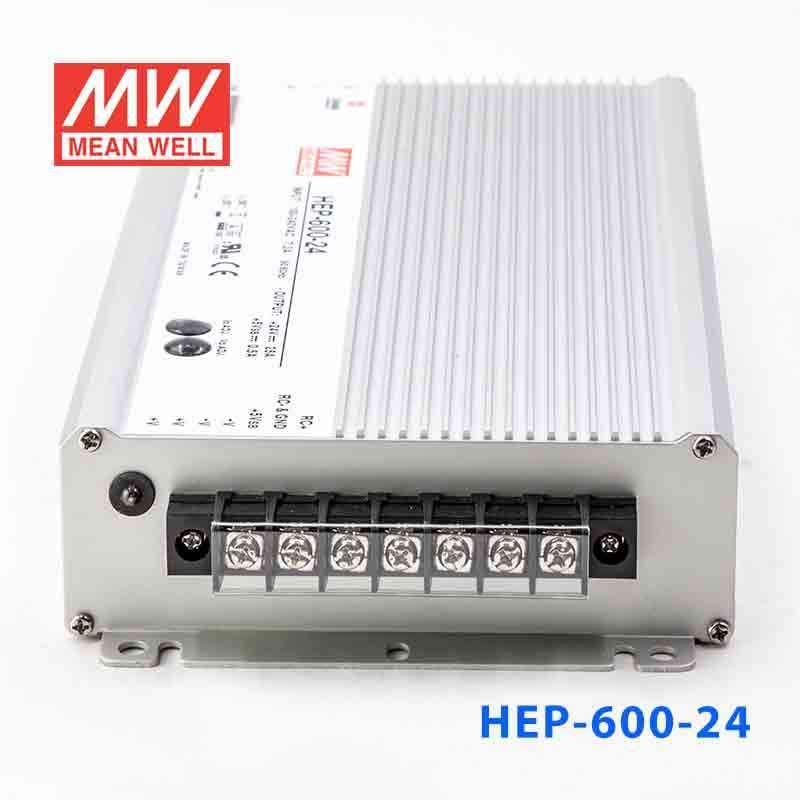

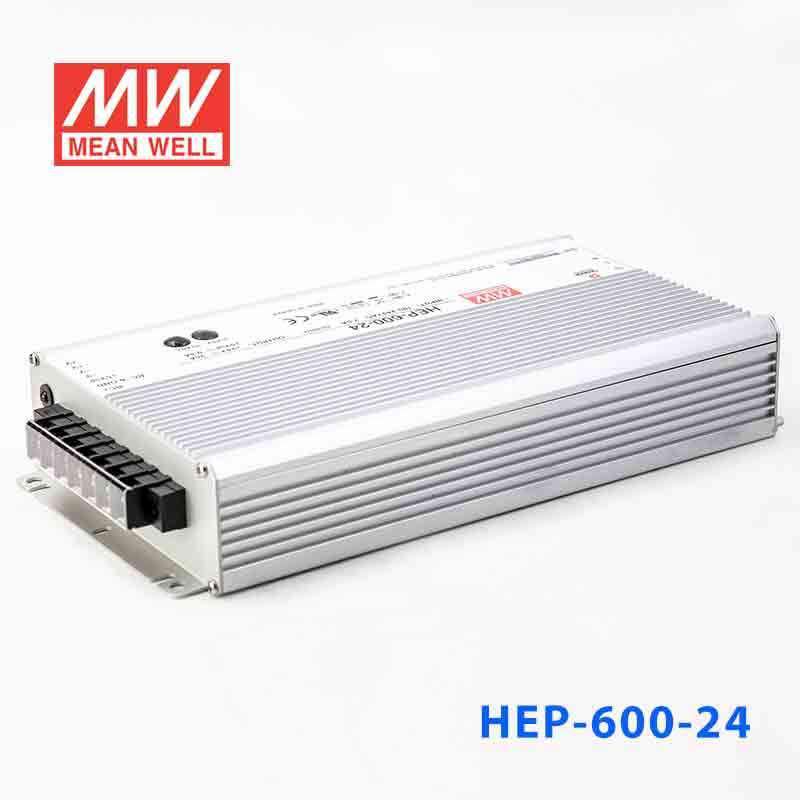

Mean Well HEP-600-24 Power Supply 600W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-24 Power Supply 600W 24V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-24 for a 24V PLC, sensor, or actuator system?
Yes, if the system is designed for constant-voltage 24V DC. This unit provides up to 25A and 600W, which fits higher-load 24V automation systems that stay within those ratings.
Is the HEP-600-24 suitable for 24V industrial PCs, networking gear, or edge devices?
It can be used where the equipment requires a 24V DC source and the total draw does not exceed 25A or 600W. The fanless design can also be useful in enclosures where moving-air components are not preferred.
Can this model support several 24V loads from one power supply?
Yes, provided the combined 24V load remains within 25A and 600W. It is a constant-voltage model, so it is intended for systems built around a fixed 24V DC bus.
Is the HEP-600-24 appropriate for outdoor equipment or washdown environments?
This listing is rated IP68 and has an operating range of -40°C to +70°C, so it is better suited than the IP65 version for very wet or exposed environments. It is also built with a rugged metal case and is specified for harsh environments.
What are the main output choices across the HEP-600 family if I am comparing 24V to other versions?
The listed HEP-600 outputs are 480W 12V 40A, 540W 15V 36A, 560W 20V 28A, 600W 24V 25A, 600W 30V 20A, 601.2W 36V 16.7A, 600.6W 42V 14.3A, 600W 48V 12.5A, and 604.8W 54V 11.2A. The related HEP-600C versions are 600W 14.4V 35A, 600W 28.8V 21A, and 600W 57.6V 10.5A.
