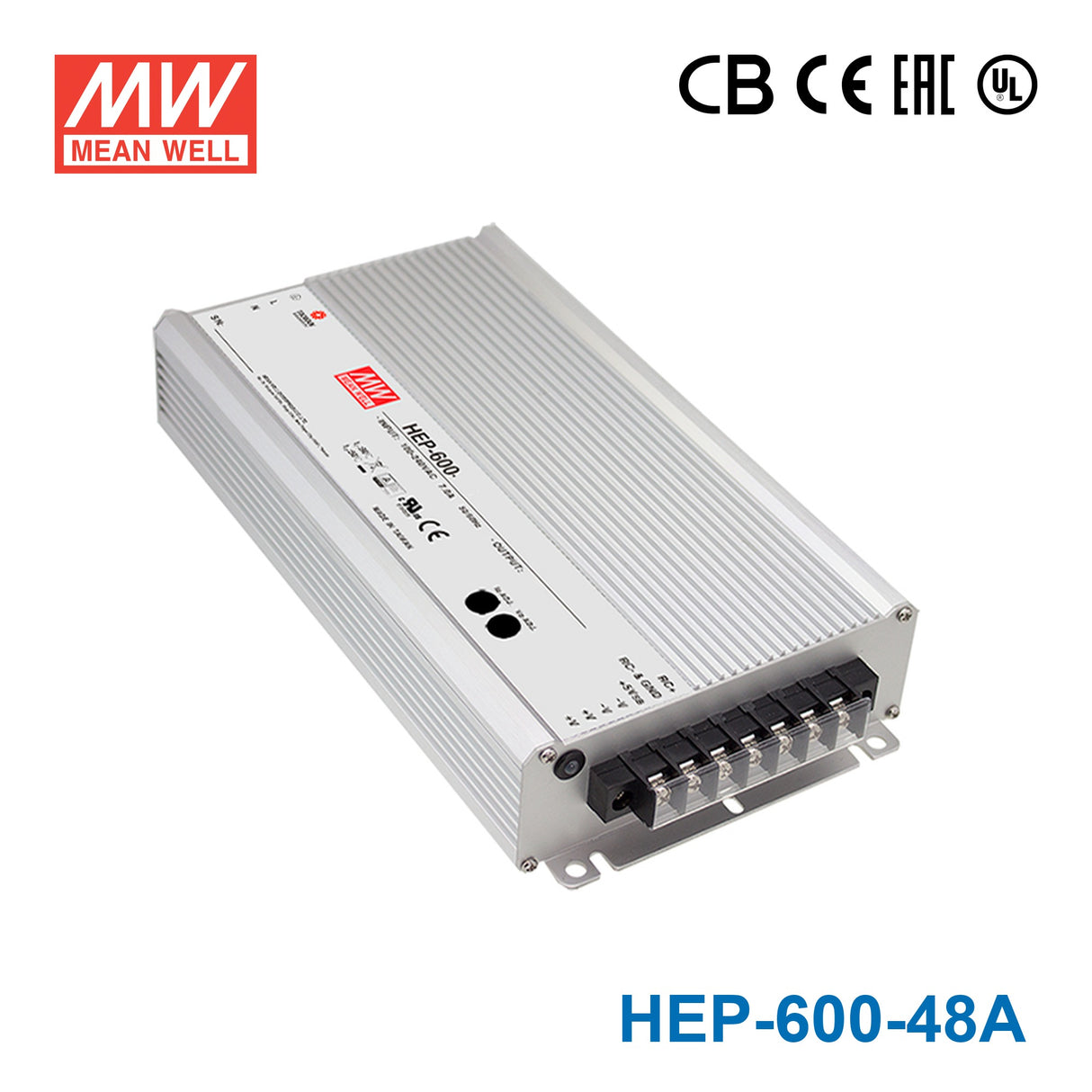

Mean Well HEP-600-48A Power Supply 600W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-48A Power Supply 600W 48V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating600 Watt
-
Output Voltage48 Volt
-
Rated Current12.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-48A for a 48V industrial control cabinet or automation panel?
It is a constant-voltage 48V power supply rated for 600W and 12.5A, which fits 48V industrial and automation systems that need that output range. The wide 90-305VAC input also supports deployment across different AC supply environments.
Is this power supply suitable for 48V embedded or edge computing equipment in harsh sites?
It can fit 48V embedded or edge equipment when the load stays within 600W and 12.5A. The fanless design, 10G vibration resistance, IP65 housing, and -40°C to +70°C operating range make it appropriate for harsher industrial locations than open-frame indoor-only supplies.
Can the HEP-600-48A be used for 48V industrial networking or telecom-style DC loads?
Yes, if the equipment requires constant 48V DC and does not exceed 12.5A or 600W. Its 90-305VAC input, rugged metal case, and high efficiency up to 96% support fixed industrial or IT power applications where a sealed supply is preferred.
Is this a good fit for 48V automation devices installed in vibration-prone equipment?
It is designed for harsh environments and is specified to withstand 10G vibration. That makes it better suited to mobile machinery cabinets or industrial equipment frames than supplies without a vibration rating.
Can I use the HEP-600-48A outdoors or in washdown-prone areas?
The housing is rated IP65 water-resistant, so it is suited to dusty environments and water exposure short of full submersion. Its -40°C to +70°C operating range also supports outdoor or semi-exposed industrial use where ambient temperatures vary widely.
How does the HEP-600-48A compare with other HEP-600 output options?
Within the HEP-600 series, output options include 12V at 40A and 480W, 15V at 36A and 540W, 20V at 28A and 560W, 24V at 25A and 600W, 30V at 20A and 600W, 36V at 16.7A and 601.2W, 42V at 14.3A and 600.6W, 48V at 12.5A and 600W, and 54V at 11.2A and 604.8W. The constant-current style HEP-600C versions are 14.4V at 35A, 28.8V at 21A, and 57.6V at 10.5A, all rated 600W.
