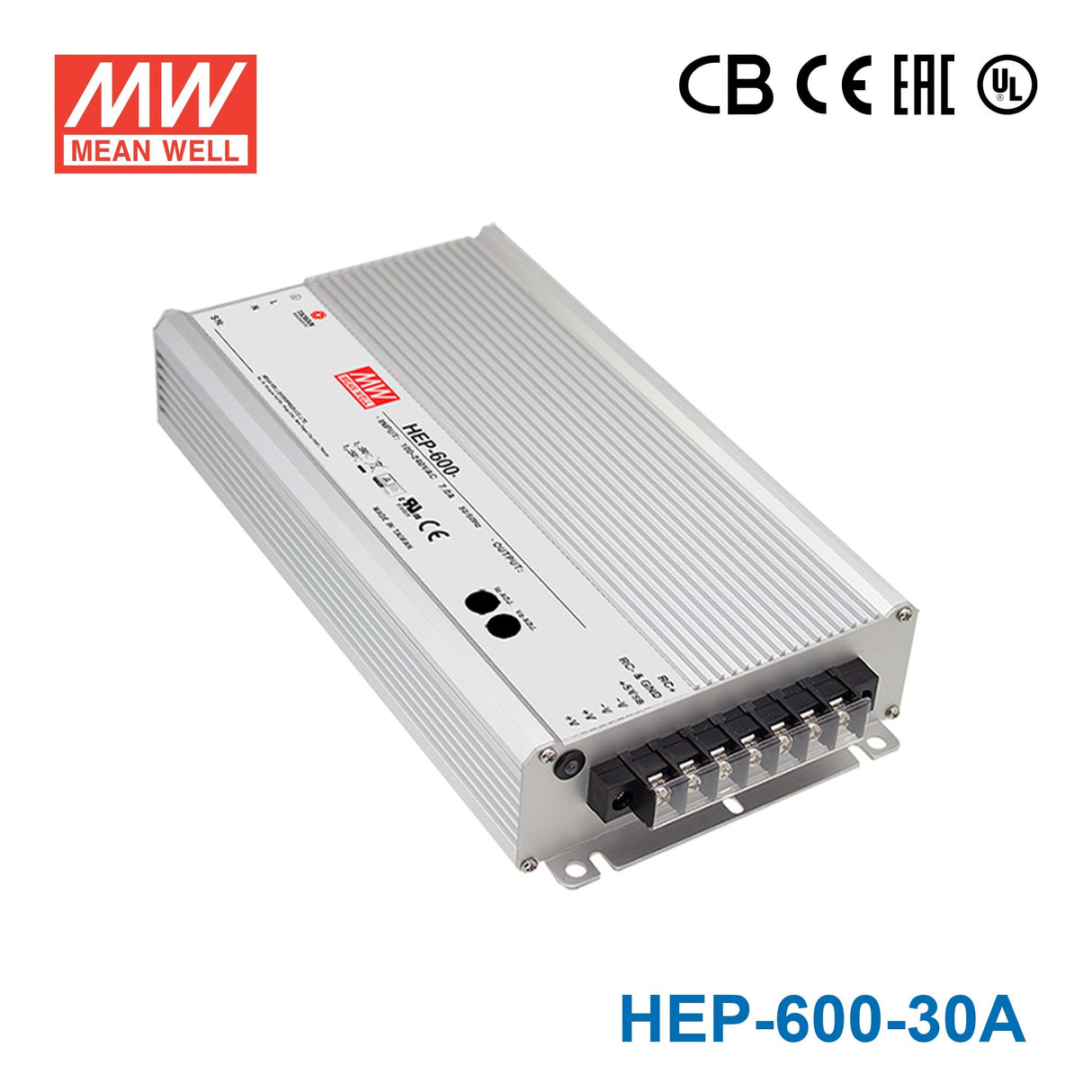

Mean Well HEP-600-30A Power Supply 600W 30V

fanless design, high efficiency up to 96%, rugged metal case with IP65 design(IP68 option available), withstand 10G vibration, suitable for harsh environment
SKU:
HEP-600-30A

$278.57 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
High efficiency up to 96%
Fanless design, cooling by free air convection
-40~+70ºC wide operating range
Aluminum case and filling with heat-conducted glue
Withstand the 10G vibration test
Output voltage and output current can be adjusted through an internal potentiometer
Protections: Short circuit / Over current / Over voltage / Over temperature
LED indicator for power on
Operating altitude up to 5000 meters
6 years warranty



General Specification

AC input voltage range 85~264VAC (277VAC operational); 120~370VDC(390VDC operational)
AC inrush current (max.) COLD START 70A(twidth=1000 s measured at 50% Ipeak) at 230VAC
DC adjustment range -10%~+10% rated output voltage (A-Type only)
Current adjustment range 60%~100%
Over current protection 105%~125% Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over-voltage protection 105%~135% Protection type: Shut down o/p voltage, re-power on to recover
Setup, rise, hold up time 500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards EN55022 class B, EN61000-3-2,3, EAC TP TC 020
Connection Input SJTW 18AWGx3C(30cm)
Connection Output SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)
Dimension (LxWxH) (mm) 280 x 144 x 48.5

Specifications

  • Brand
    Mean Well
  • Series
    HEP Series
  • Power Rating
    600 Watt
  • Output Voltage
    30 Volt
  • Rated Current
    20 Ampere
  • Input Voltage
    90V~305V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    6 Year
  • Length
    11.02 in
  • Width
    5.67 in
  • Height
    1.91 in
  • Weight
    8.6 lb
