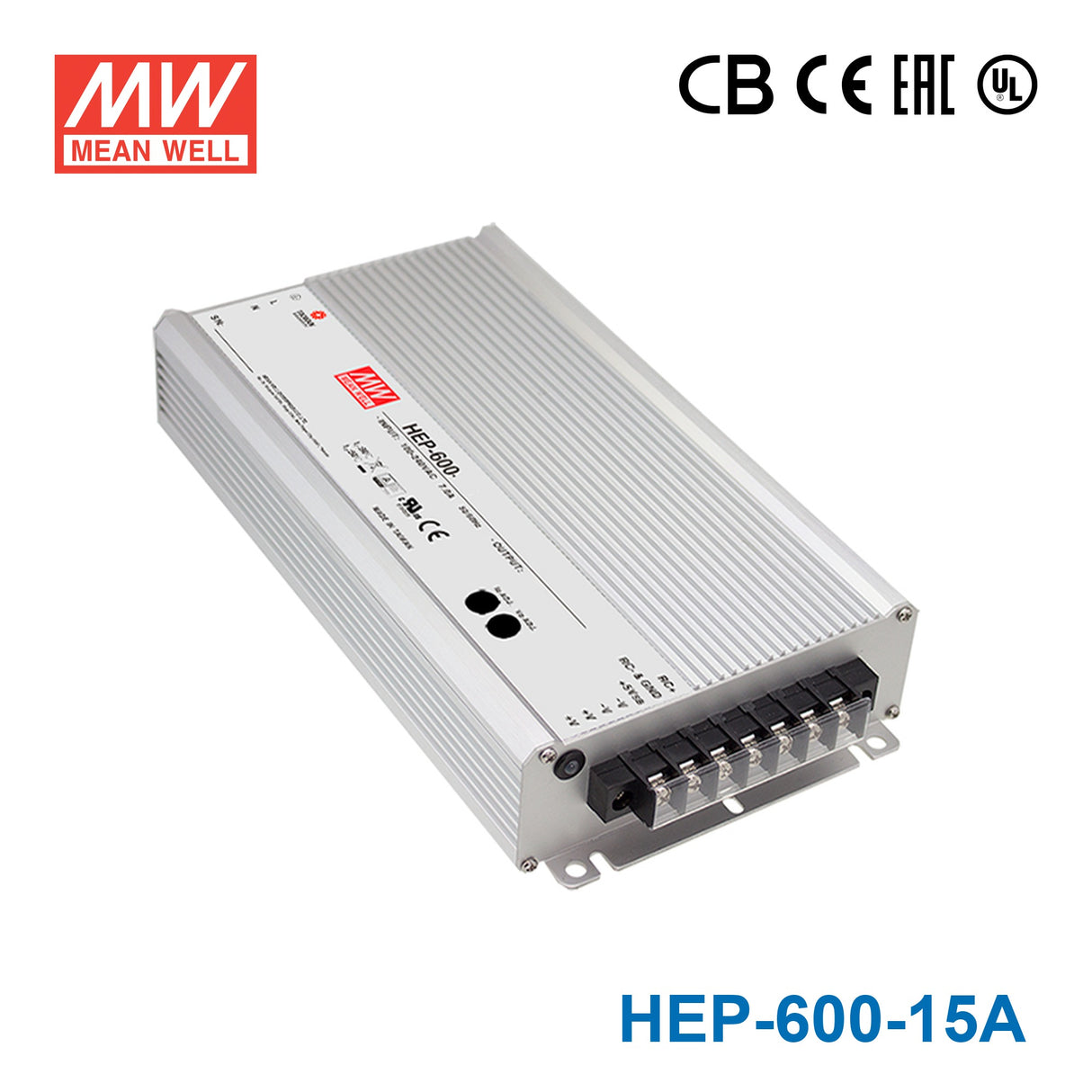

Mean Well HEP-600-15A Power Supply 540W 15V
fanless design, high efficiency up to 96%, rugged metal case with IP65 design(IP68 option available), withstand 10G vibration, suitable for harsh environment
SKU:
HEP-600-15A
Datasheet:
$278.57 USD
Unit price /
Unavailable
Shipping calculated at checkout.
On Backorder
Notify me when it's back in stock
Your order will be processed within 24 hours
Description
Description
Features
Universal AC input (up to 305VAC) / Full range |
Built-in active PFC function |
High efficiency up to 96% |
Fanless design, cooling by free air convection |
-40~+70ºC wide operating range |
Aluminum case and filling with heat-conducted glue |
Withstand the 10G vibration test |
Output voltage and output current can be adjusted through an internal potentiometer |
Protections: Short circuit / Over current / Over voltage / Over temperature |
LED indicator for power on |
Operating altitude up to 5000 meters |
6 years warranty |
General Specification
AC input voltage range | 85~264VAC (277VAC operational); 120~370VDC(390VDC operational) |
AC inrush current (max.) | COLD START 70A(twidth=1000 s measured at 50% Ipeak) at 230VAC |
DC adjustment range | -10%~+10% rated output voltage (A-Type only) |
Current adjustment range | 60%~100% |
Over current protection | 105%~125% Protection type: Constant current limiting, recovers automatically after fault condition is removed |
Over-voltage protection | 105%~135% Protection type: Shut down o/p voltage, re-power on to recover |
Setup, rise, hold up time | 500ms, 80ms, 15ms at full load and 230VAC |
Withstand voltage | I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC |
Working temperature | -40~+70ºC (refer to output derating curve) |
Safety standards | UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, EAC TP TC 020 |
Connection Input | SJTW 18AWGx3C(30cm) |
Connection Output | SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) |
Dimension (LxWxH) (mm) | 280 x 144 x 48.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating540 Watt
-
Output Voltage15 Volt
-
Rated Current36 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
