Mean Well HEP-600-42 Power Supply 600.6W 42V
Notify me when it's back in stock
Your order will be processed within 24 hours

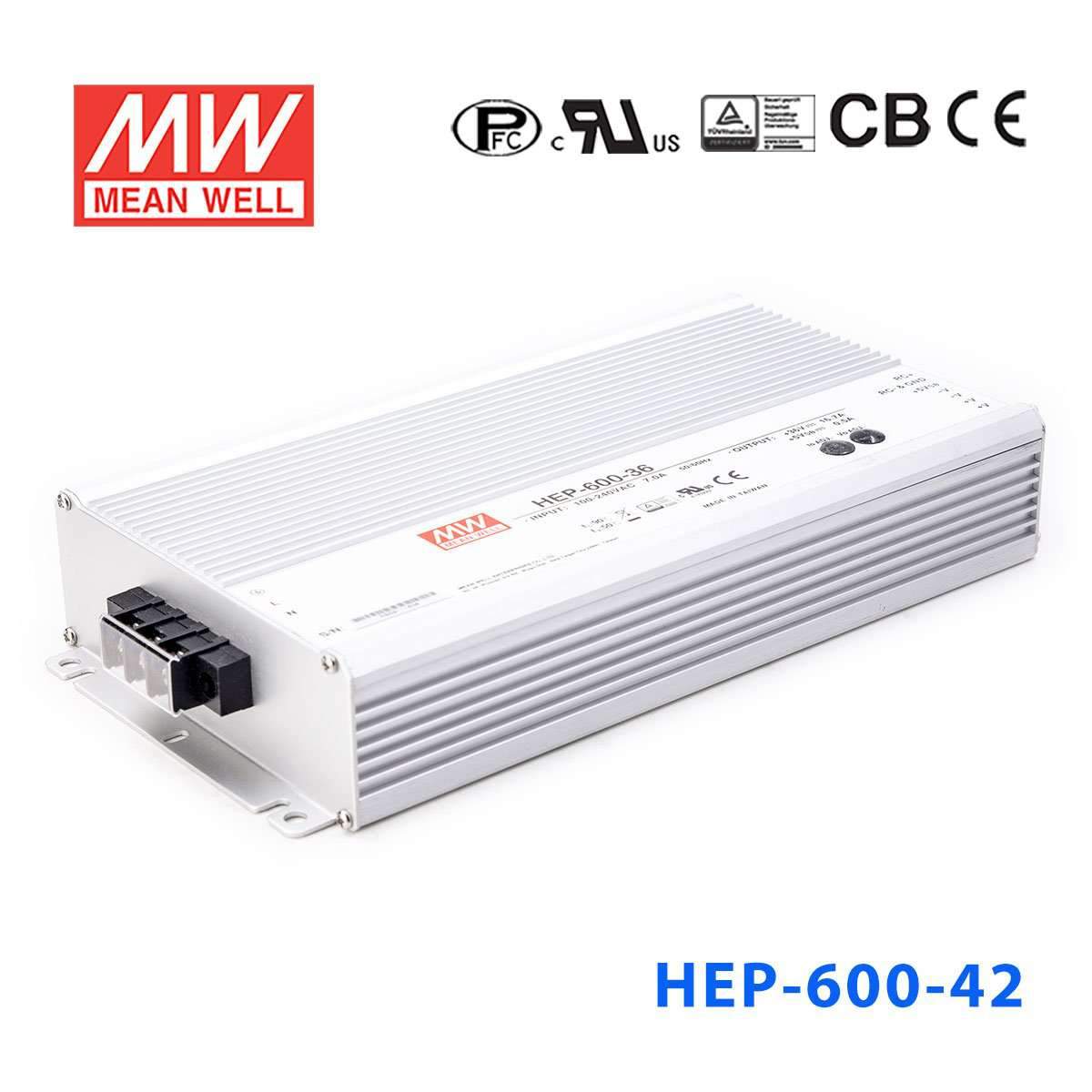

Mean Well HEP-600-42 Power Supply 600.6W 42V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating600.6 Watt
-
Output Voltage42 Volt
-
Rated Current14.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-42 for 42V automation equipment?
Yes, this unit delivers 42V constant voltage output with a 600.6W and 14.3A rating. It is appropriate for 42V automation equipment that requires a high-power DC source within those output limits.
Is the HEP-600-42 suitable for 42V DC bus applications in industrial systems?
It can be used where the system is designed around a 42V constant voltage bus and the total load stays at or below 14.3A and 600.6W. The wide 90-305VAC input range also helps in facilities with different AC supply standards.
Can this model power 42V control panels or embedded industrial electronics?
Yes, it is a fit for 42V control panels and embedded equipment that need a constant voltage supply. Its fanless construction and rugged case are useful in enclosed industrial applications where durability matters.
Is the HEP-600-42 designed for severe environmental conditions?
Yes, it carries an IP68 rating and operates from -40°C to +70°C. The supply is also specified to withstand 10G vibration, which supports use in harsh industrial environments.
How does the HEP-600-42 fit within the HEP-600 voltage range?
The HEP-600 series spans 12V 480W 40A, 15V 540W 36A, 20V 560W 28A, 24V 600W 25A, 30V 600W 20A, 36V 601.2W 16.7A, 42V 600.6W 14.3A, 48V 600W 12.5A, and 54V 604.8W 11.2A. Separate HEP-600C versions are rated 14.4V 600W 35A, 28.8V 600W 21A, and 57.6V 600W 10.5A.
