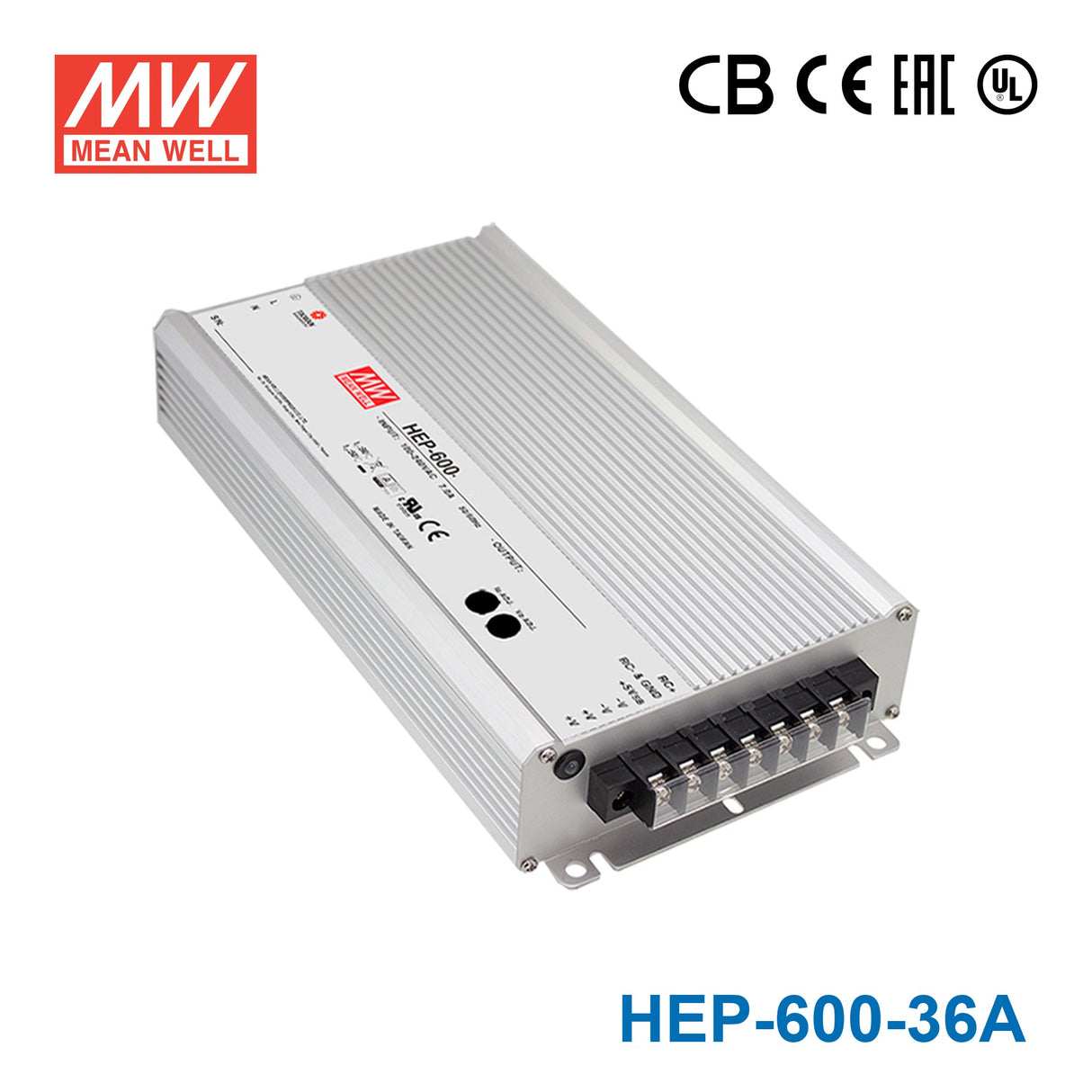

Mean Well HEP-600-36A Power Supply 601.2W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-36A Power Supply 601.2W 36V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating601.2 Watt
-
Output Voltage36 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-36A for a 36V machine control or PLC-related power system?
Yes, it provides a 36V constant voltage output rated for 601.2W and 16.7A. That suits higher-power 36V machine control and automation systems that need a stable DC supply within those limits.
Is this power supply appropriate for 36V industrial lighting or signaling equipment?
It can support 36V constant voltage lighting or signaling loads as long as the combined demand does not exceed 16.7A or 601.2W. The fanless design also helps in applications where reduced airflow maintenance is preferred.
Can the HEP-600-36A be used in rugged factory or plant environments?
Yes, it is designed for harsh environments with a fanless construction, 10G vibration resistance, and operation from -40°C to +70°C. Those specs make it suitable for 36V industrial equipment in demanding indoor plant conditions.
Is the HEP-600-36A suitable for outdoor use?
This version is rated IP65 water-resistant, so it is intended for environments where protection from dust and water jets is needed rather than full immersion-level sealing. It also supports operation from -40°C to +70°C, which is useful for exposed industrial locations.
What are the main output options in the HEP-600 series if I am comparing models?
The HEP-600 series includes 12V 480W 40A, 15V 540W 36A, 20V 560W 28A, 24V 600W 25A, 30V 600W 20A, 36V 601.2W 16.7A, 42V 600.6W 14.3A, 48V 600W 12.5A, and 54V 604.8W 11.2A models. It also includes HEP-600C variants at 14.4V 600W 35A, 28.8V 600W 21A, and 57.6V 600W 10.5A.
