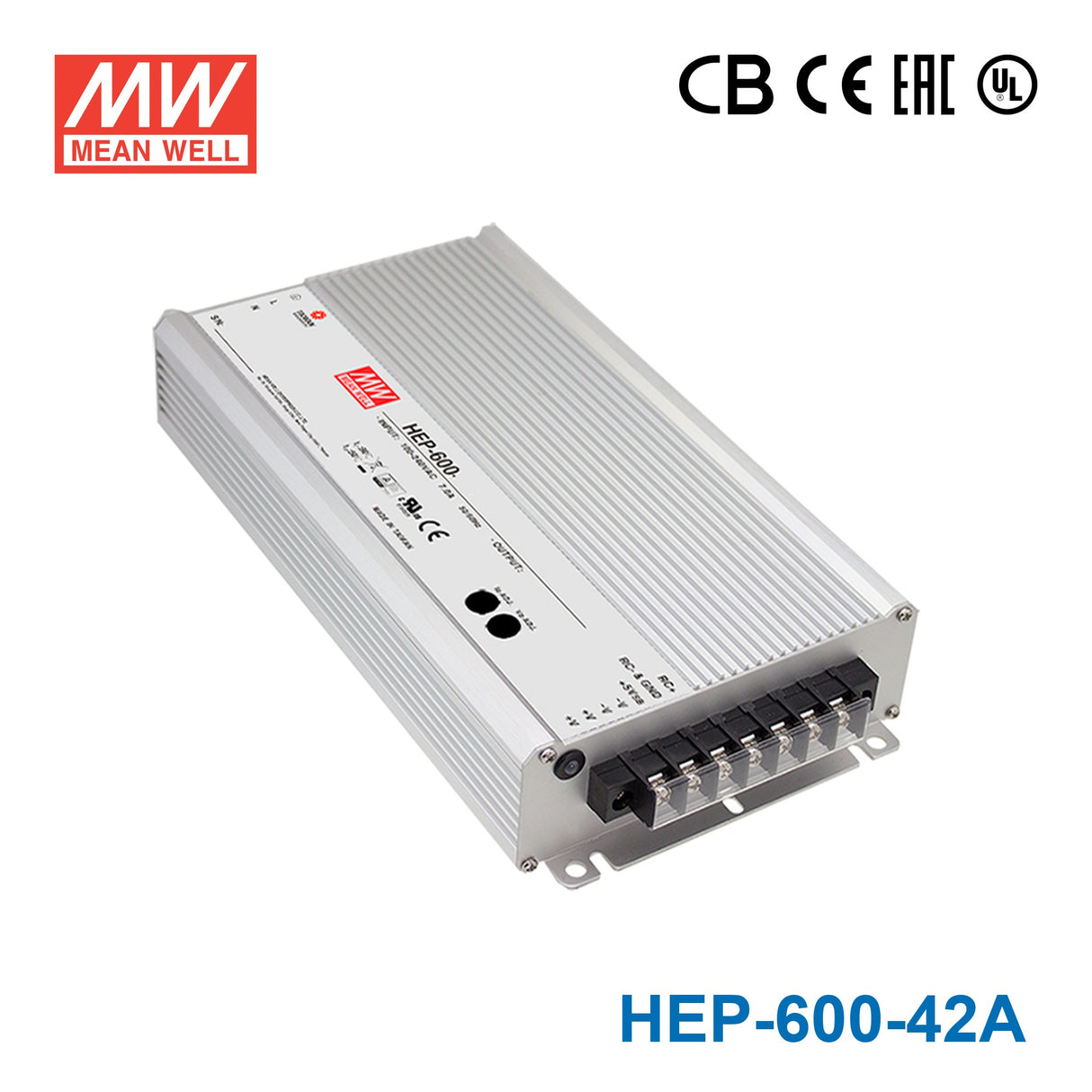

Mean Well HEP-600-42A Power Supply 600.6W 42V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-42A Power Supply 600.6W 42V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating600.6 Watt
-
Output Voltage42 Volt
-
Rated Current14.3 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-42A for 42V industrial control hardware?
Yes, it provides 42V constant voltage output at up to 14.3A and 600.6W. That makes it suitable for 42V industrial control hardware and similar DC loads that stay within its rated output.
Is this a good choice for 42V factory equipment that runs continuously?
It is designed as a fanless power supply with efficiency up to 96%, which can be useful in continuous-duty industrial systems. The rated output is 600.6W at 42V, so it fits higher-power 42V equipment within that capacity.
Can the HEP-600-42A support rugged embedded systems in industrial environments?
Yes, it is intended for harsh environments and is specified to withstand 10G vibration. Combined with its -40°C to +70°C operating range, it suits 42V embedded systems used in demanding industrial conditions.
Is the HEP-600-42A suitable for indoor or outdoor use?
This version has an IP65 water-resistant rating, so it is appropriate where dust protection and resistance to water spray are needed. Its operating temperature range of -40°C to +70°C also supports challenging indoor and semi-exposed outdoor environments.
What other HEP-600 outputs are available besides the 42V version?
Other HEP-600 outputs include 12V 480W 40A, 15V 540W 36A, 20V 560W 28A, 24V 600W 25A, 30V 600W 20A, 36V 601.2W 16.7A, 48V 600W 12.5A, and 54V 604.8W 11.2A. The HEP-600C versions are 14.4V 600W 35A, 28.8V 600W 21A, and 57.6V 600W 10.5A.
