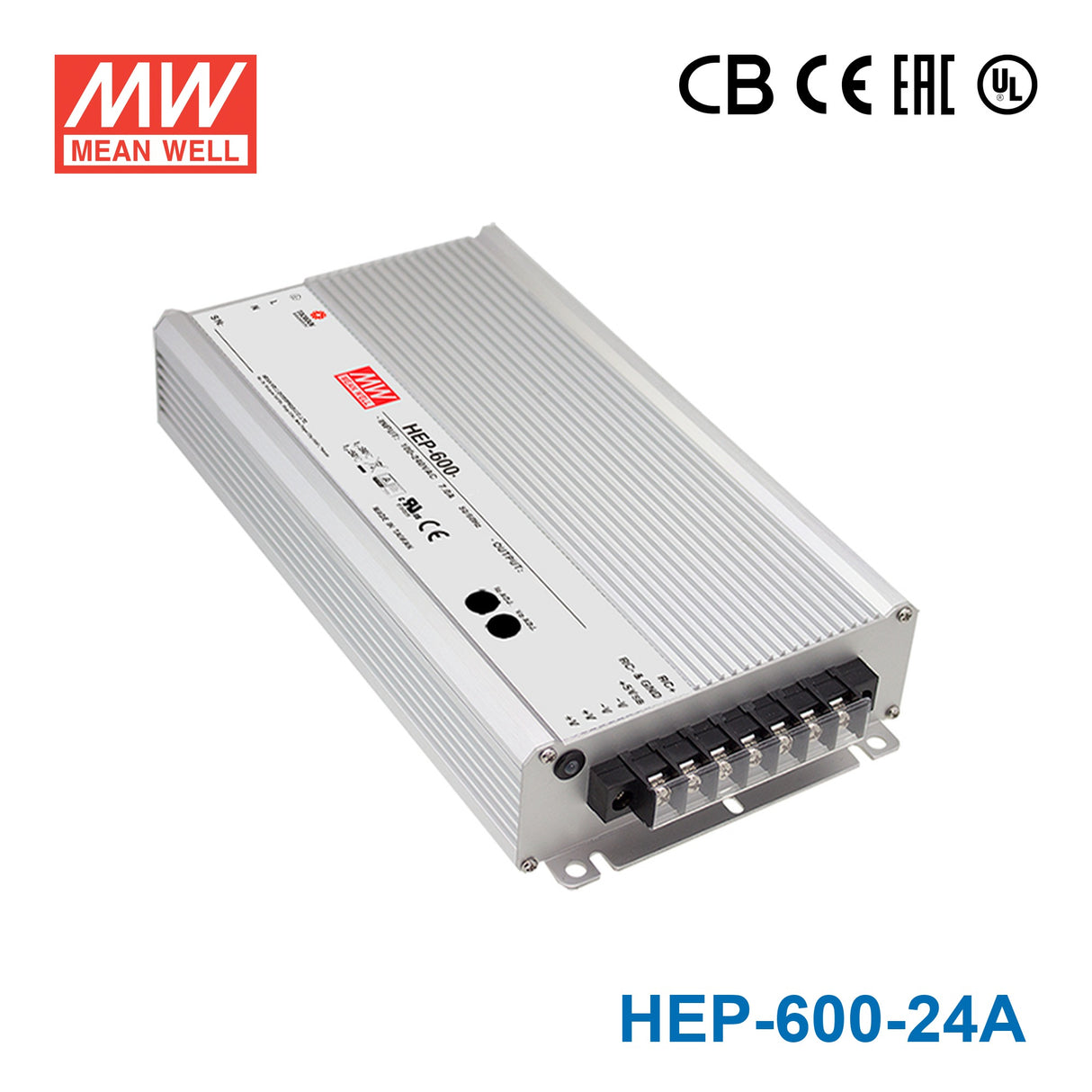

Mean Well HEP-600-24A Power Supply 600W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-24A Power Supply 600W 24V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-24A for 24V building automation or industrial control panels?
Yes, if the panel uses constant-voltage 24V DC. This model supplies up to 25A and 600W, which is suitable for larger 24V control loads that stay within those limits.
Is the HEP-600-24A a good fit for 24V embedded controllers or machine subsystems?
It is appropriate for 24V DC subsystems that need a fixed-output constant-voltage supply. Buyers should match it only to equipment that requires 24V and whose total demand does not exceed 25A or 600W.
Can the HEP-600-24A power multiple 24V devices in one enclosure?
Yes, when the total 24V load is kept at or below 25A and 600W. The wide 90-305VAC input is also useful when the equipment may be deployed under different AC supply conditions.
Is this version suitable for damp or dusty locations?
The HEP-600-24A is rated IP65 water-resistant and operates from -40°C to +70°C, so it is suited to demanding indoor use and outdoor locations exposed to dust or water spray. If the project specifically calls for IP68, the HEP-600-24 listing is the closer match on ingress protection.
How does the HEP-600-24A compare with the other HEP-600 voltage options?
The listed HEP-600 outputs are 480W 12V 40A, 540W 15V 36A, 560W 20V 28A, 600W 24V 25A, 600W 30V 20A, 601.2W 36V 16.7A, 600.6W 42V 14.3A, 600W 48V 12.5A, and 604.8W 54V 11.2A. The HEP-600C options are 600W 14.4V 35A, 600W 28.8V 21A, and 600W 57.6V 10.5A.
