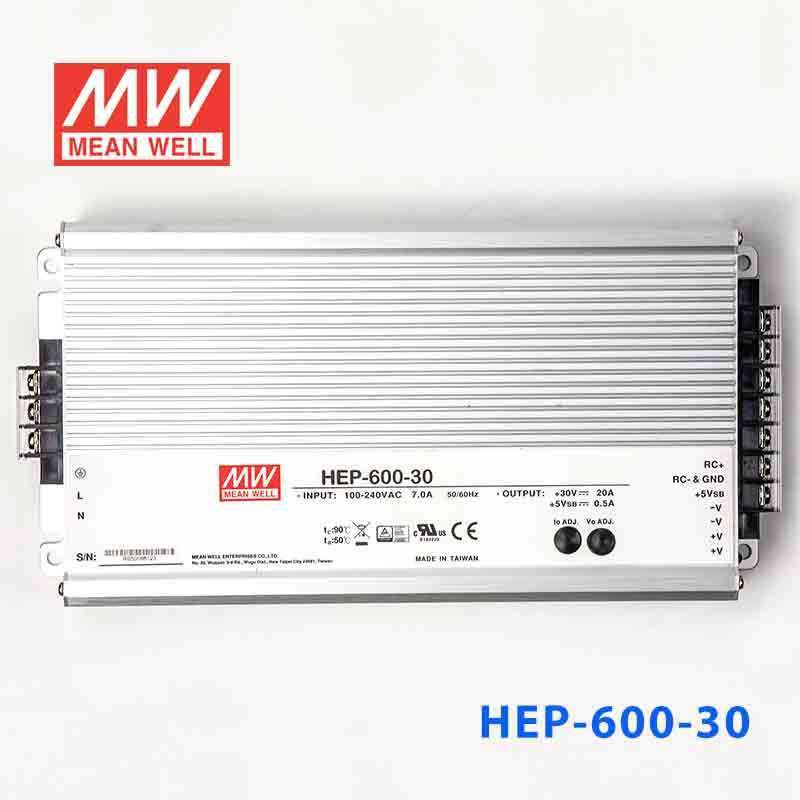

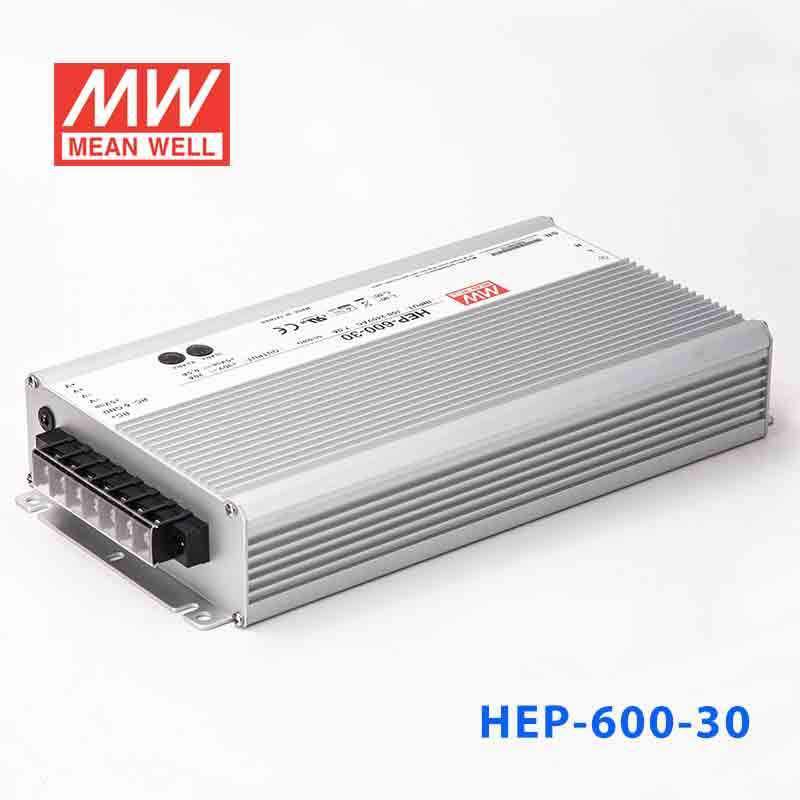

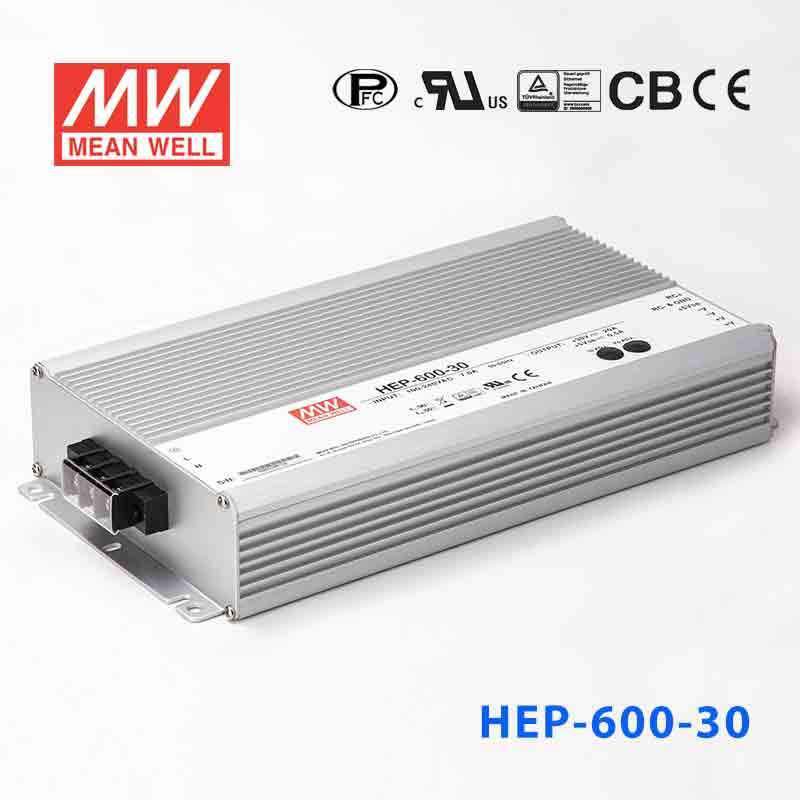

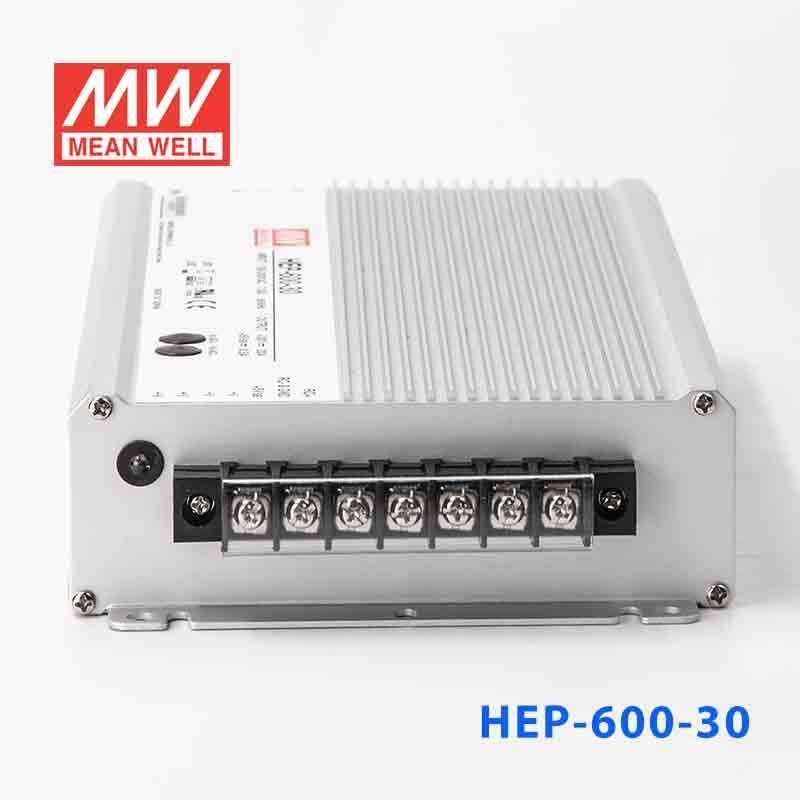

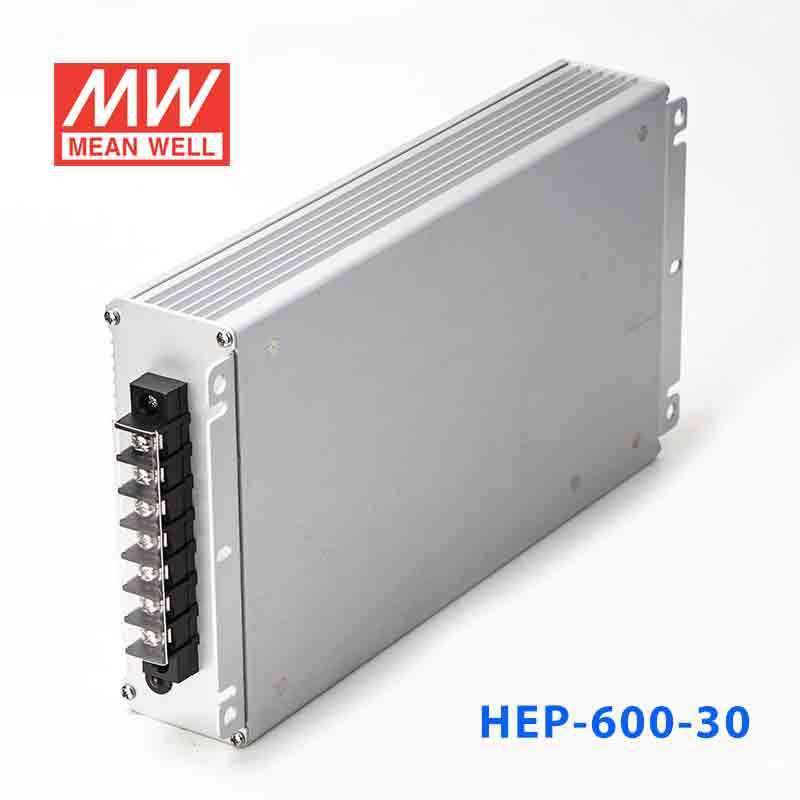

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well HEP-600-30 Power Supply 600W 30V 20A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-30 Power Supply 600W 30V 20A
The HEP-600 is a 600W Mean Well power supply (input: 90~305VAC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage (max): 30V
- ✓ Rated output current: 20A
- ✓ Ingress protection: IP68
- ✓ Operating temperature: -40~+70°C
- ✓ Safety certifications: CB, CE, EAC, UL
- ✓ 6 year warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating600 Watt
-
Output Voltage30 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-30 for a 30V industrial or automation system?
Yes, if the equipment is designed for constant-voltage 30V DC input. This model provides up to 20A and 600W, so the total 30V load must stay within those ratings.
Is the HEP-600-30 suitable for 30V embedded equipment or production test stations?
It can be used for 30V DC embedded or test applications that require a fixed-output supply rather than adjustable output. The 90-305VAC input range also supports use across a wide span of AC input conditions.
Can this power several 30V loads from one supply?
Yes, provided all connected 30V loads together remain at or below 20A and 600W. Because it is a constant-voltage model, it should be matched only to systems intended for a 30V DC bus.
Is the HEP-600-30 appropriate for outdoor or harsh-environment equipment?
This listing is rated IP68 and operates from -40°C to +70°C, which makes it suited to exposed or very wet environments. It also uses a fanless design and is specified for harsh environments with 10G vibration resistance.
What are the other HEP-600 family output ratings if I am comparing 30V to sibling models?
The listed HEP-600 outputs are 480W 12V 40A, 540W 15V 36A, 560W 20V 28A, 600W 24V 25A, 600W 30V 20A, 601.2W 36V 16.7A, 600.6W 42V 14.3A, 600W 48V 12.5A, and 604.8W 54V 11.2A. The related HEP-600C versions are 600W 14.4V 35A, 600W 28.8V 21A, and 600W 57.6V 10.5A.
