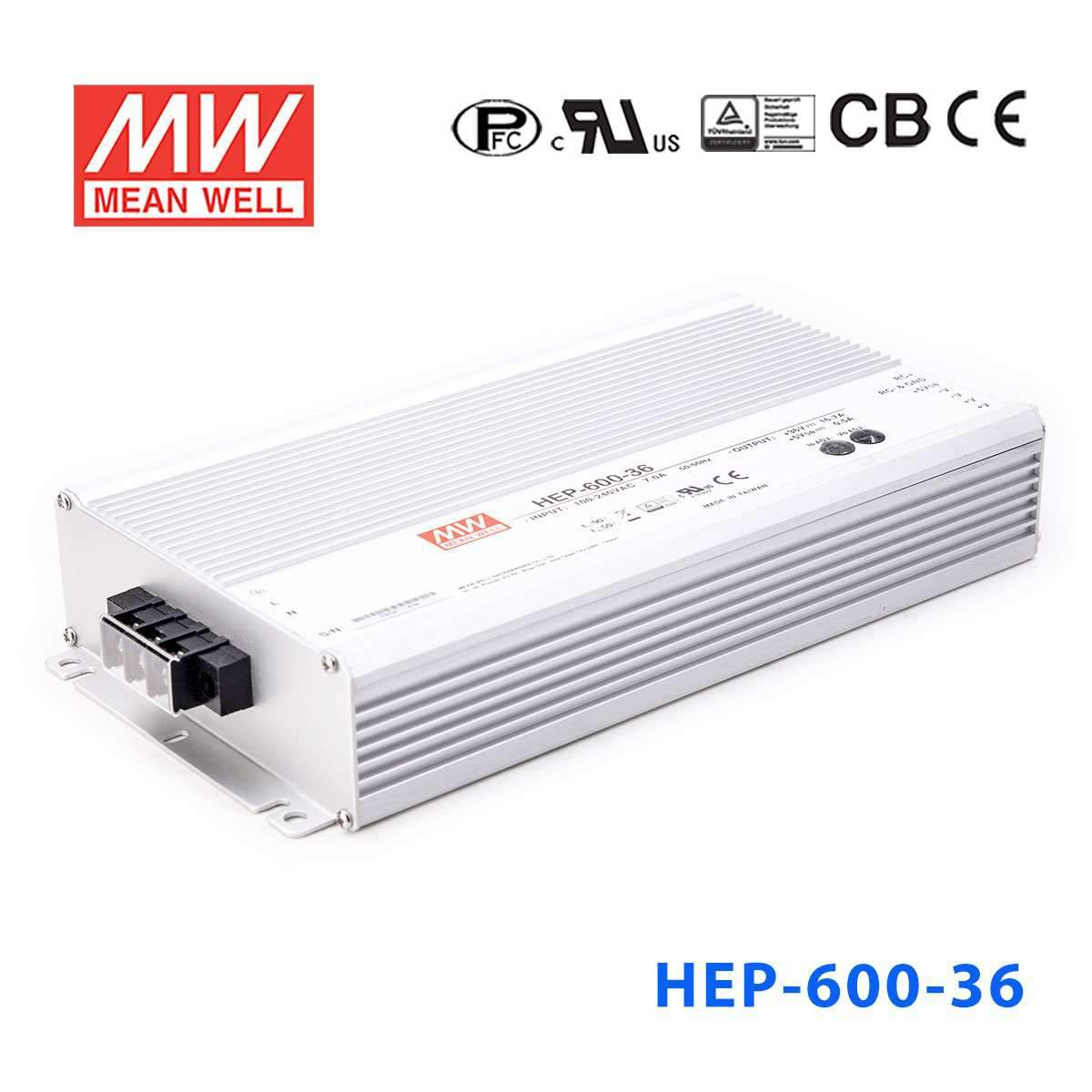

Mean Well HEP-600-36 Power Supply 601.2W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-36 Power Supply 601.2W 36V
The HEP-600 is a 600W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+70℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL60950-1, TUV EN60950-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating601.2 Watt
-
Output Voltage36 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HEP-600-36 for a 36V industrial automation cabinet?
Yes, this model is a 36V constant voltage power supply rated for 601.2W and 16.7A. That makes it suitable for 36V automation equipment that needs a single high-power DC source within those output limits.
Is the HEP-600-36 suitable for 36V embedded or control systems in harsh industrial sites?
It is built for harsh environments with an IP68 rating, a fanless design, and 10G vibration resistance. The operating temperature range is -40°C to +70°C, so it fits demanding embedded and control applications that use 36V DC.
Can this power supply run 36V DC motors, actuators, or other industrial loads?
It can power 36V constant voltage loads up to 16.7A and 601.2W. It is a good fit when the load is designed for a 36V DC supply and the total demand stays within the unit's rated output.
Is the HEP-600-36 a good option for outdoor 36V equipment enclosures?
Yes, the IP68 rating makes it appropriate for outdoor or washdown-prone environments where a sealed supply is needed. It also operates from -40°C to +70°C, which supports exposed industrial conditions.
How does the HEP-600-36 compare with other HEP-600 series models?
Within the HEP-600 family, the standard voltage models are 12V 480W 40A, 15V 540W 36A, 20V 560W 28A, 24V 600W 25A, 30V 600W 20A, 36V 601.2W 16.7A, 42V 600.6W 14.3A, 48V 600W 12.5A, and 54V 604.8W 11.2A. The constant current style HEP-600C models are 14.4V 600W 35A, 28.8V 600W 21A, and 57.6V 600W 10.5A.
