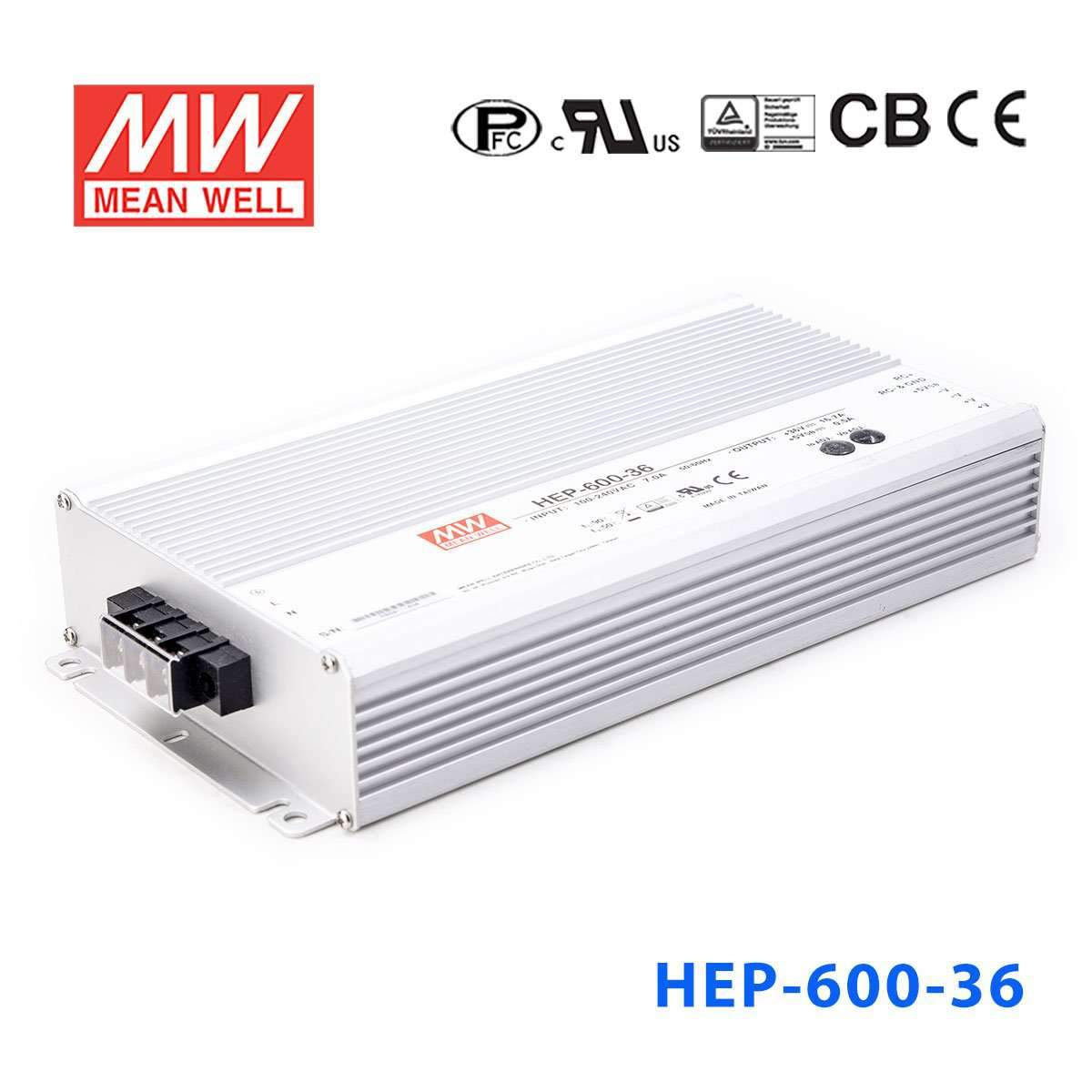

Mean Well HEP-600-36 Power Supply 601.2W 36V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HEP-600-36 Power Supply 601.2W 36V
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| High efficiency up to 96% |
| Fanless design, cooling by free air convection |
| -40~+70ºC wide operating range |
| Aluminum case and filling with heat-conducted glue |
| Withstand the 10G vibration test |
| Output voltage and output current can be adjusted through an internal potentiometer |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| LED indicator for power on |
| Operating altitude up to 5000 meters |
| 6 years warranty |
General Specification
| AC input voltage range | 85~264VAC (277VAC operational); 120~370VDC(390VDC operational) |
| AC inrush current (max.) | COLD START 70A(twidth=1000 s measured at 50% Ipeak) at 230VAC |
| DC adjustment range | -10%~+10% rated output voltage (A-Type only) |
| Current adjustment range | 60%~100% |
| Over current protection | 105%~125% Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over-voltage protection | 105%~135% Protection type: Shut down o/p voltage, re-power on to recover |
| Setup, rise, hold up time | 500ms, 80ms, 15ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EAC TP TC 020 |
| Connection Input | SJTW 18AWGx3C(30cm) |
| Connection Output | SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) |
| Dimension (LxWxH) (mm) | 280 x 144 x 48.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesHEP Series
-
Power Rating601.2 Watt
-
Output Voltage36 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty6 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HEP-600-36 for a 36V industrial automation cabinet?
Yes, this model is a 36V constant voltage power supply rated for 601.2W and 16.7A. That makes it suitable for 36V automation equipment that needs a single high-power DC source within those output limits.
Is the HEP-600-36 suitable for 36V embedded or control systems in harsh industrial sites?
It is built for harsh environments with an IP68 rating, a fanless design, and 10G vibration resistance. The operating temperature range is -40°C to +70°C, so it fits demanding embedded and control applications that use 36V DC.
Can this power supply run 36V DC motors, actuators, or other industrial loads?
It can power 36V constant voltage loads up to 16.7A and 601.2W. It is a good fit when the load is designed for a 36V DC supply and the total demand stays within the unit's rated output.
Is the HEP-600-36 a good option for outdoor 36V equipment enclosures?
Yes, the IP68 rating makes it appropriate for outdoor or washdown-prone environments where a sealed supply is needed. It also operates from -40°C to +70°C, which supports exposed industrial conditions.
How does the HEP-600-36 compare with other HEP-600 series models?
Within the HEP-600 family, the standard voltage models are 12V 480W 40A, 15V 540W 36A, 20V 560W 28A, 24V 600W 25A, 30V 600W 20A, 36V 601.2W 16.7A, 42V 600.6W 14.3A, 48V 600W 12.5A, and 54V 604.8W 11.2A. The constant current style HEP-600C models are 14.4V 600W 35A, 28.8V 600W 21A, and 57.6V 600W 10.5A.
