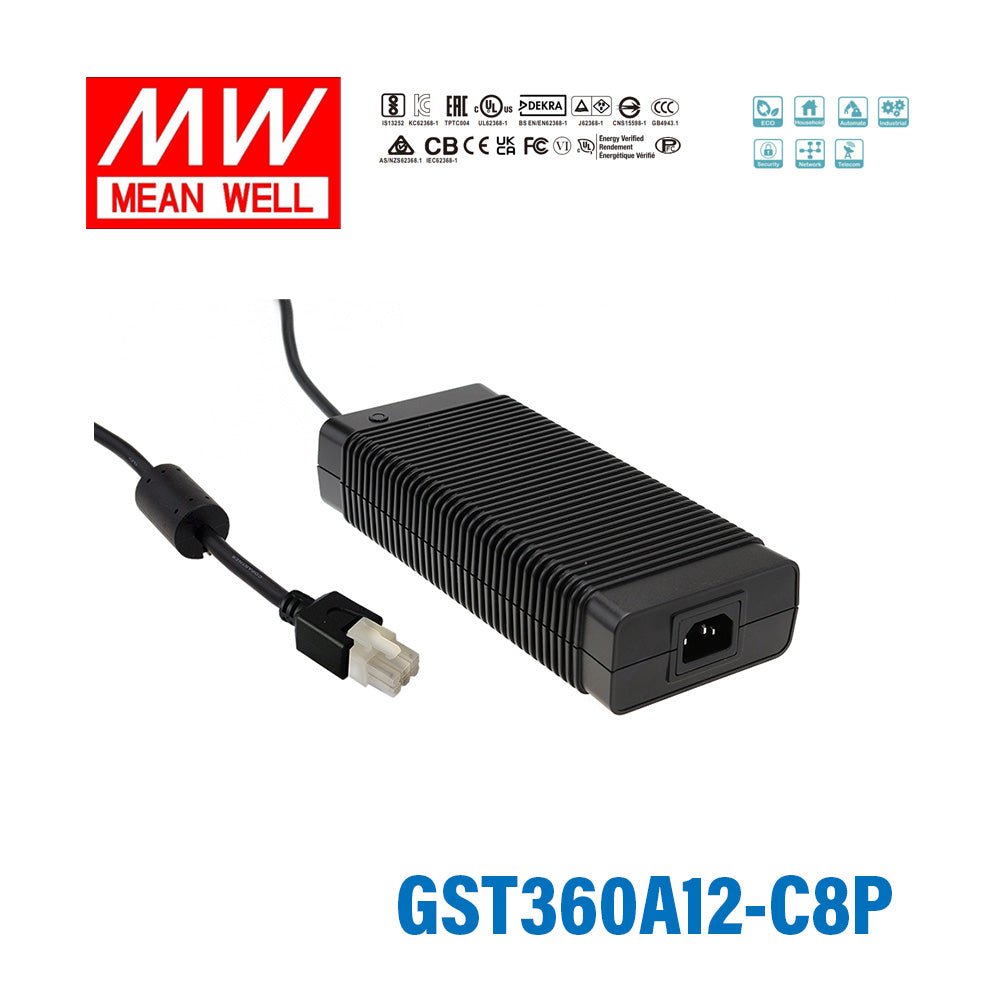

Mean Well GST360A12-C8P AC-DC Industrial Adaptor 330W 12V With 8 Pin Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GST360A12-C8P AC-DC Industrial Adaptor 330W 12V With 8 Pi...
Description
Description
Features
|
Universal AC input / Full range 450W peak power(3 sec.) |
| No load power consumption < 0.5W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |
| MEPS compliant |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Short circuit /Overload / Over voltage/Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Built-in active PFC function |
| Fanless design |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC 120~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~135% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2464, 16AWGx4C |
| Dimension (LxWxH) | 220x 95x 46 mm |
| Standard DC plug |
C8P: MOLEX 8 pin connector |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating330 Watt
-
Output Voltage12 Volt
-
Rated Current27.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well GST360A12-C8P provide?
This model provides a regulated 12V DC output with a 330W power rating. Its rated output current is 27.5A, making it suitable for higher-power 12V industrial and commercial equipment.
What type of connector and input inlet does the GST360A12-C8P use?
The GST360A12-C8P uses a MOLEX 8 pin connector on the DC output side. On the AC input side, it has a 3-pole IEC320-C14 inlet and is a Class I power supply with earth pin.
What input voltage range does this power adaptor support?
This adaptor supports a universal input range of 85 to 264VAC, and it also accepts 120 to 370VDC. That wide range helps it fit into many global industrial power environments.
Is the GST360A12-C8P suitable for demanding industrial environments?
Yes, this model is designed for industrial use and operates over a wide temperature range from -30°C to +70°C, subject to the output derating curve. It also includes protection for short circuit, overload, over voltage, and over temperature conditions.
What efficiency and compliance features does this model offer?
The GST360A12-C8P meets Energy Efficiency Level VI and has no-load power consumption below 0.5W. It is also listed as compliant with EISA 2007, NRCan, and MEPS requirements.
Does this adaptor use active cooling or a fan?
No, the GST360A12-C8P uses a fanless design. It also has a fully enclosed plastic case and an LED indicator for power-on status.
What kinds of applications is this 12V 330W adaptor typically used for?
This model is typically considered for 12V equipment that needs a high-current desktop-style industrial AC-DC adaptor. Buyers often look at it for commercial or industrial devices that require a 12V supply, up to 27.5A output, and a MOLEX 8 pin connector format.
What physical size and cable details should buyers know?
The adaptor measures 220 x 95 x 46 mm and weighs 1.4 kg. It includes a 100 cm output cable specified as UL2464, 16AWG x 4C.
