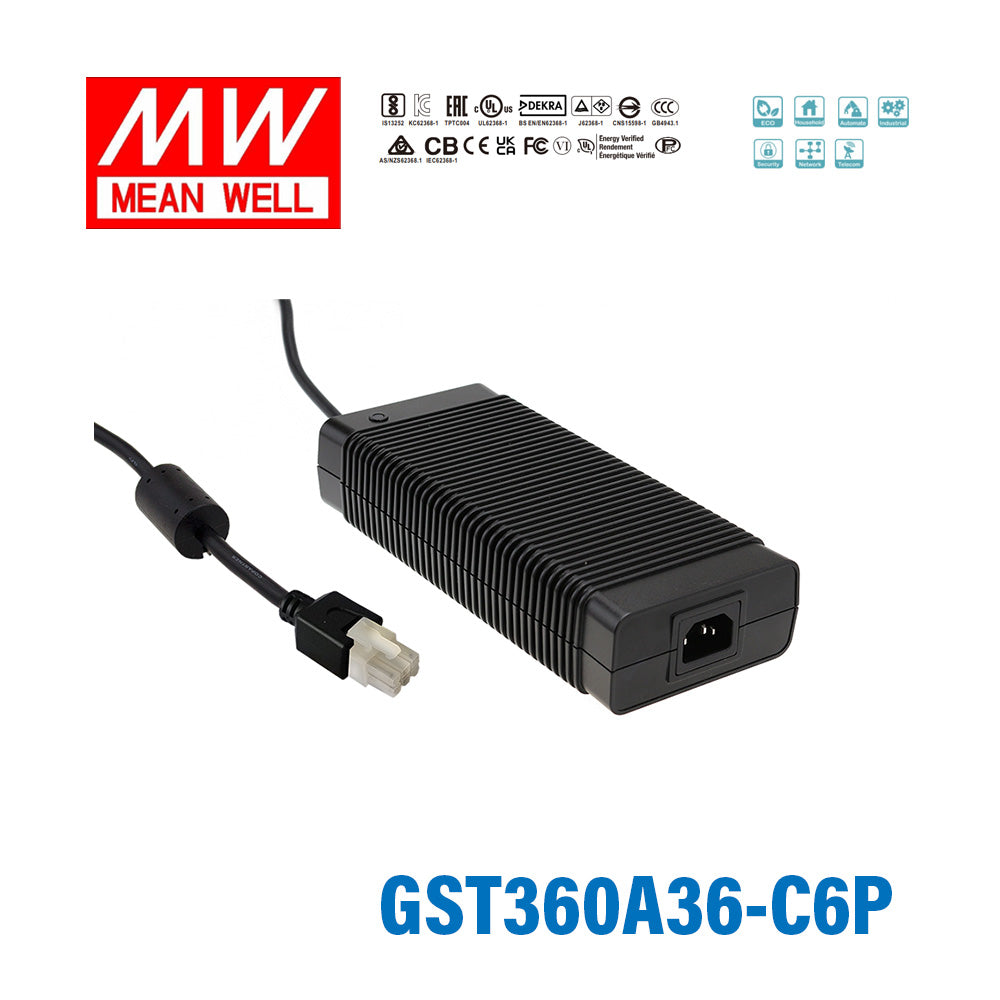

Mean Well GST360A36-C6P AC-DC Industrial Adaptor 360W 36V With 6 Pin Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GST360A36-C6P AC-DC Industrial Adaptor 360W 36V With 6 Pi...
Description
Description
Features
|
Universal AC input / Full range 450W peak power(3 sec.) |
| No load power consumption < 0.5W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |
| MEPS compliant |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Short circuit /Overload / Over voltage/Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Built-in active PFC function |
| Fanless design |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC 120~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~135% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2464, 16AWGx4C |
| Dimension (LxWxH) | 220x 95x 46 mm |
| Standard DC plug |
C6P: MOLEX 6 pin connector |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating360 Watt
-
Output Voltage36 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GST360A36-C6P?
This model is a 360W AC-DC industrial adaptor with a 36V DC output and a rated current of 10A. It is designed for applications that need a higher-power desktop-style external power supply. The adaptor also supports 450W peak power for up to 3 seconds.
What type of connector does the GST360A36-C6P use?
The GST360A36-C6P version uses a C6P MOLEX 6 pin connector as its standard DC plug. The model name specifically identifies this connector version. Buyers should confirm that their equipment is designed for this connector format before ordering.
What input voltage range does this power adaptor support?
This adaptor accepts a universal AC input range of 85 to 264VAC and also supports 120 to 370VDC input. That makes it suitable for use across a wide range of global power environments. It is built with active PFC and meets Energy Efficiency Level VI requirements.
Is the Mean Well GST360A36-C6P suitable for demanding industrial environments?
It is built for industrial use with protections for short circuit, overload, over voltage, and over temperature. The operating temperature range is -30°C to +70°C, which supports use in challenging environments. Its fully enclosed plastic case and Class I design also make it appropriate for professional equipment applications.
What safety and compliance standards does this model meet?
The GST360A36-C6P is approved to multiple safety standards including UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, and PSE J60950-1. It also meets EMC standards such as EN55022 Class B, EN61000-3-2, EN61000-3-3, FCC Part 15, and CISPR22 Class B. These approvals make it a strong fit for commercial and industrial OEM sourcing.
What makes this model a good choice compared with lower-power desktop adaptors?
The key differentiator is its 360W output capacity at 36V, which supports higher-current equipment than smaller desktop adaptors. It also offers a 450W peak power capability for short-duration load demands. For buyers needing a fanless external power supply with industrial approvals, this model stands out in higher-power applications.
What physical size and cable details should buyers know?
The adaptor measures 220 x 95 x 46 mm and weighs 1.4 kg. It includes a 100 cm output cable specified as UL2464, 16AWG x 4C. These details are useful when checking enclosure space, cable reach, and overall fit for an equipment design.
