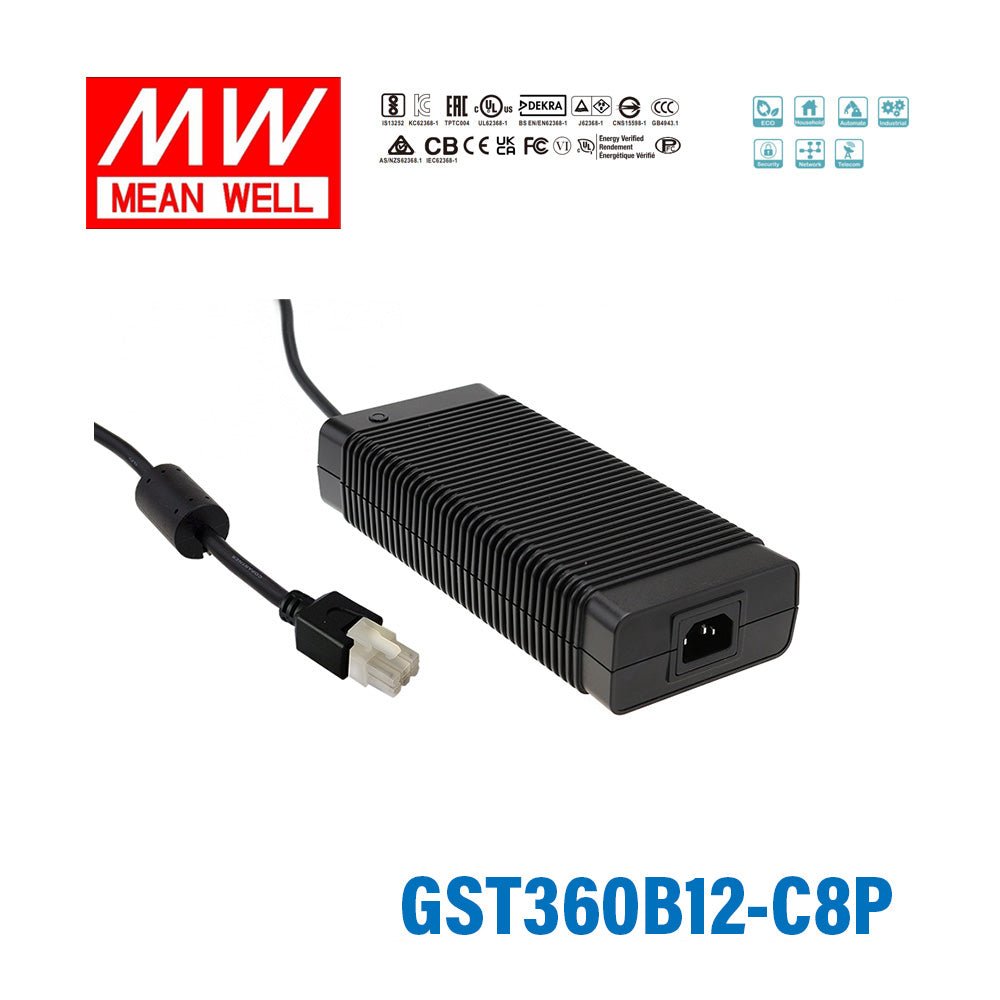

Mean Well GST360B12-C8P AC-DC Industrial Adaptor 330W 12V With 8 Pin Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GST360B12-C8P AC-DC Industrial Adaptor 330W 12V With 8 Pi...
Description
Description
Features
|
Universal AC input / Full range 450W peak power(3 sec.) |
| No load power consumption < 0.5W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |
| MEPS compliant |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Short circuit /Overload / Over voltage/Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Built-in active PFC function |
| Fanless design |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC 120~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~135% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2464, 16AWGx4C |
| Dimension (LxWxH) | 220x 95x 46 mm |
| Standard DC plug |
C8P: MOLEX 8 pin connector |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating330 Watt
-
Output Voltage12 Volt
-
Rated Current27.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GST360B12-C8P?
The GST360B12-C8P is a 330W AC-DC industrial adaptor with a regulated 12V DC output. It is rated for up to 27.5A continuous current and supports 450W peak power for 3 seconds.
What kind of applications is this 12V power adaptor suited for?
This model is intended for industrial or commercial equipment that needs a high-power 12V DC supply with up to 27.5A available output. It is particularly relevant where a MOLEX 8 pin connector and desktop-style enclosed adaptor format are required.
What input voltage range does the GST360B12-C8P support?
The adaptor accepts universal AC input from 85 to 264VAC and also supports 120 to 370VDC input. That full-range input makes it suitable for use across many regional power environments without changing the power unit itself.
What output connector does this model use?
The GST360B12-C8P uses a C8P MOLEX 8 pin connector as its standard DC plug. It also includes a 100cm output cable specified as UL2464, 16AWG x 4C.
How does this model perform in demanding environments?
The specified operating temperature range is -30°C to +70°C, subject to the output derating curve. It also uses a fanless design and a fully enclosed plastic case, which can be beneficial in applications where low noise and a sealed desktop adaptor format are preferred.
What protection and compliance features does the GST360B12-C8P include?
This adaptor includes short circuit, overload, over voltage, and over temperature protection. It is also Energy Efficiency Level VI rated, includes active PFC, and is listed with multiple safety and EMC approvals including UL60950-1, TUV EN60950-1, EN55022 Class B, and FCC Part 15/CISPR22 Class B.
What are the physical size and warranty for this power adaptor?
The GST360B12-C8P measures 220 x 95 x 46 mm and weighs 1.4 kg. Mean Well specifies this model with a 3-year warranty.
