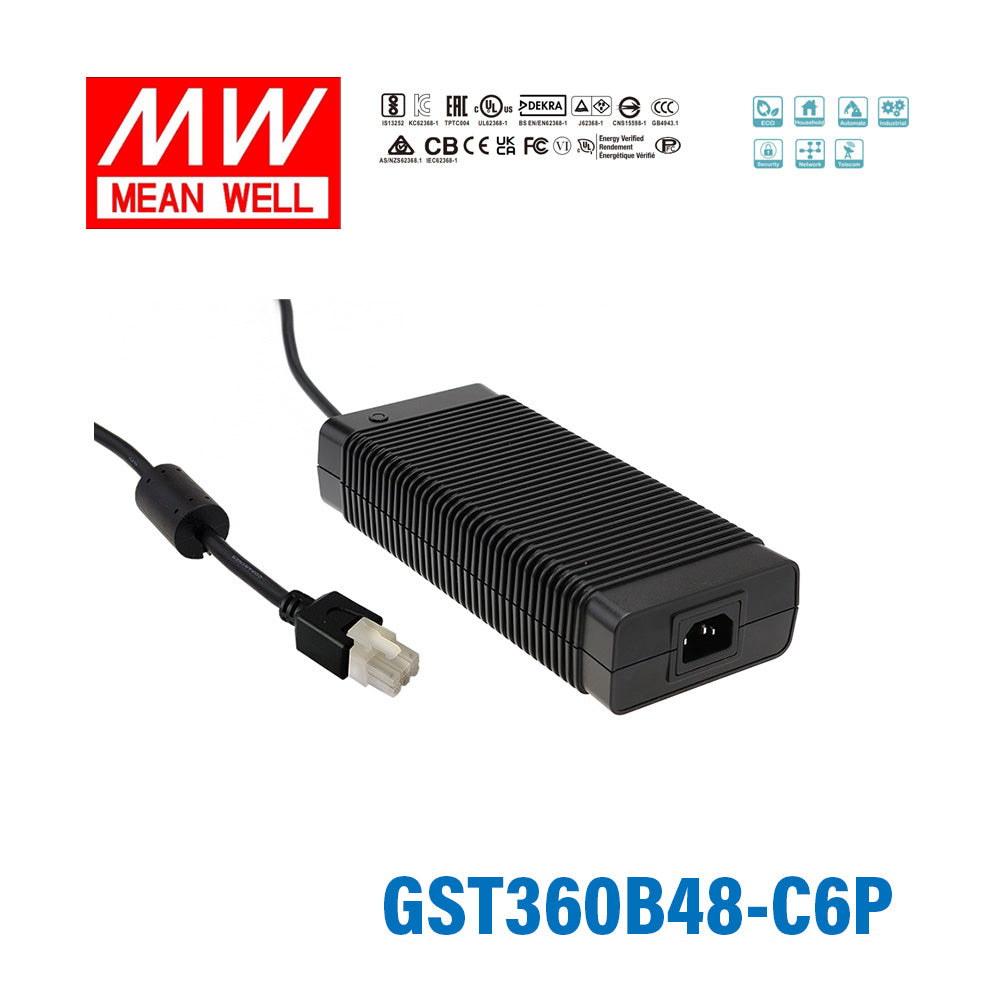

Mean Well GST360B48-C6P AC-DC Industrial Adaptor 360W 48V With 6 Pin Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GST360B48-C6P AC-DC Industrial Adaptor 360W 48V With 6 Pi...
Description
Description
Features
|
Universal AC input / Full range 450W peak power(3 sec.) |
| No load power consumption < 0.5W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |
| MEPS compliant |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Short circuit /Overload / Over voltage/Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Built-in active PFC function |
| Fanless design |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC 120~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~135% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2464, 16AWGx4C |
| Dimension (LxWxH) | 220x 95x 46 mm |
| Standard DC plug |
C6P: MOLEX 6 pin connector |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating360 Watt
-
Output Voltage48 Volt
-
Rated Current7.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GST360B48-C6P?
This model is a 360W AC-DC industrial adaptor with a 48V DC output. Its rated output current is 7.5A. It is designed for applications that need a higher-power external desktop-style power supply with a fixed 48V output.
What type of input power does the GST360B48-C6P accept?
The GST360B48-C6P has a universal input range of 85 to 264VAC, and it also supports 120 to 370VDC input. That wide range makes it suitable for use across different regions and industrial environments where mains input can vary. It also uses a 3-pole IEC320-C14 AC inlet.
What connector does this 48V adaptor use on the DC output side?
This version uses a C6P MOLEX 6 pin connector as its standard DC plug. The output cable length is 100cm and uses UL2464 16AWGx4C cable. Buyers should confirm the connector format matches their equipment before ordering.
Is the GST360B48-C6P suitable for industrial or continuous-use environments?
Yes, this model is built for industrial use and includes a fully enclosed plastic case, active PFC, and multiple protection functions. It also uses a fanless design, which can be useful where low maintenance and reduced airborne contamination are priorities. The operating temperature range is -30°C to +70°C, subject to the manufacturer's derating guidance.
What protection features are included in this power adaptor?
The GST360B48-C6P includes short circuit, overload, over voltage, and over temperature protection. Its overload protection operates in hiccup mode with auto-recovery. These built-in protections help support equipment protection in demanding commercial and industrial applications.
How energy efficient is the Mean Well GST360B48-C6P?
This adaptor meets Energy Efficiency Level VI and has no-load power consumption below 0.5W. It also meets EISA 2007 requirements and is listed as NRCan and MEPS compliant. These characteristics make it a relevant choice for buyers who need improved standby efficiency and regulatory alignment.
What approvals and compliance standards does this model meet?
The GST360B48-C6P is approved to multiple safety standards including UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, and PSE J60950-1. It also meets EMC standards including EN55022 Class B, EN61000-3-2, EN61000-3-3, FCC Part 15, CISPR22 Class B, CNS13438 Class B, GB9254, and GB17625.1. This broad compliance profile is useful for OEM and industrial procurement requirements.
What physical size and warranty should buyers expect for this adaptor?
The unit dimensions are 220 x 95 x 46 mm, and the listed weight is 1.4 kg. This is a desktop-style external power supply rather than a compact plug-in adaptor. Mean Well backs this model with a 3-year warranty.
