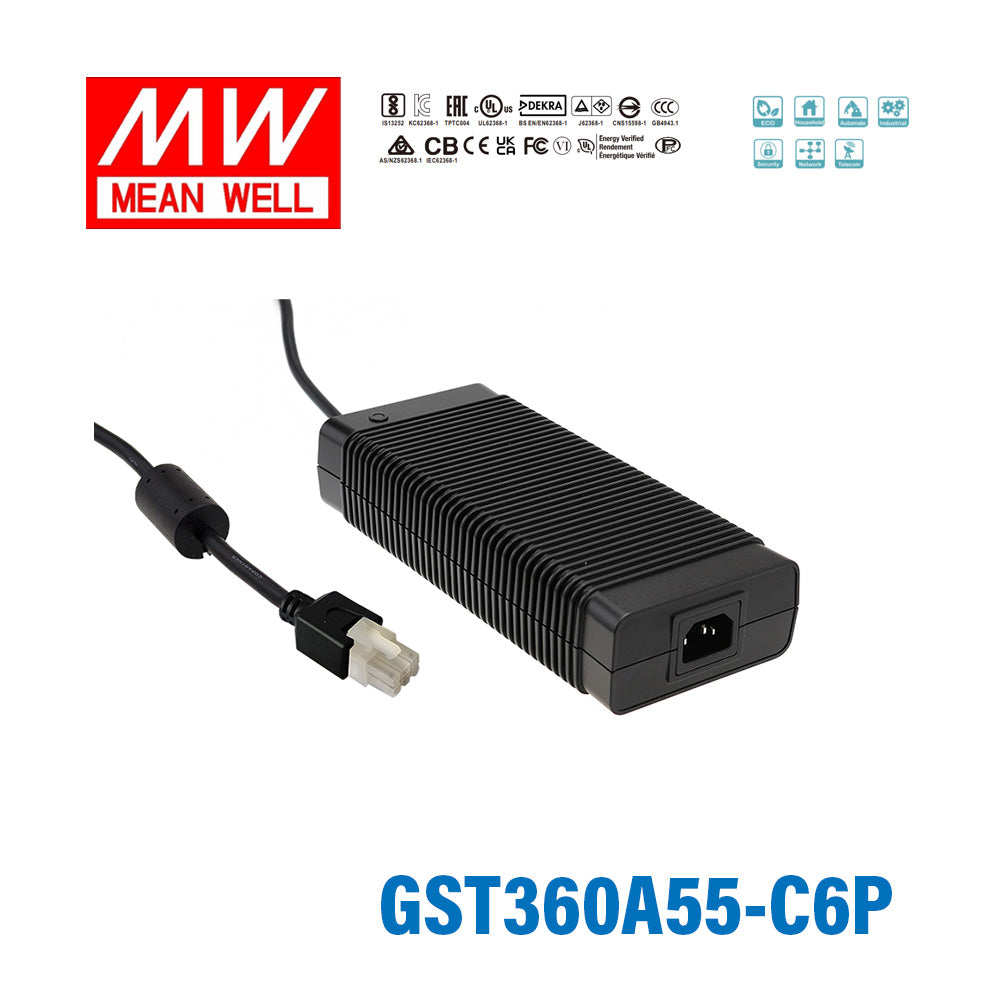

Mean Well GST360A55-C6P AC-DC Industrial Adaptor 360W 55V With 6 Pin Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Description
Description
Features
|
Universal AC input / Full range 450W peak power(3 sec.) |
| No load power consumption < 0.5W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |
| MEPS compliant |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Short circuit /Overload / Over voltage/Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Built-in active PFC function |
| Fanless design |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC 120~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~135% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2464, 16AWGx4C |
| Dimension (LxWxH) | 220x 95x 46 mm |
| Standard DC plug |
C6P: MOLEX 6 pin connector |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating360 Watt
-
Output Voltage55 Volt
-
Rated Current6.55 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GST360A55-C6P?
This model is a 360W AC-DC industrial adaptor with a 55V DC output. It is rated for 6.55A output current. The product name and specification table identify it as the GST360A55-C6P version with a 6 pin connector.
What input voltage range does the GST360A55-C6P support?
The GST360A55-C6P accepts a universal AC input range of 85 to 264VAC. It also supports 120 to 370VDC input. This makes it suitable for use across a wide range of standard power environments.
What type of DC output connector does this adaptor use?
This version uses a C6P MOLEX 6 pin connector as its standard DC plug. The output cable length is specified as 100cm using UL2464 16AWG 4-core cable. Buyers should confirm that their equipment is designed for the GST360A55-C6P connector format.
Is the GST360A55-C6P suitable for industrial or demanding operating environments?
Yes, this adaptor is built for industrial use and operates across a wide temperature range of -30 to +70 degrees C. It also includes short circuit, overload, over voltage, and over temperature protection. The fully enclosed plastic case and fanless design support reliable operation in demanding environments.
What efficiency and compliance features does this power adaptor offer?
The GST360A55-C6P meets Energy Efficiency Level VI and has no-load power consumption below 0.5W. It is also listed as compliant with EISA 2007, NRCan, and MEPS requirements. These features make it a strong option for buyers looking for an efficient high-power external supply.
What safety and EMC approvals are listed for this model?
The product is approved to multiple safety standards including UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, and PSE J60950-1. Its EMC standards include EN55022 Class B, EN61000-3-2 and -3, FCC Part 15, CISPR22 Class B, CNS13438 Class B, GB9254, and GB17625.1. These approvals are useful for OEM and industrial buyers working across multiple markets.
What applications is the GST360A55-C6P best suited for?
This model is intended for equipment that requires a 55V DC supply at up to 360W from an external industrial adaptor. Its high power rating, active PFC, fanless design, and broad input range make it well suited to commercial and industrial applications. Buyers should match the required voltage, current, and connector type to their device requirements.
