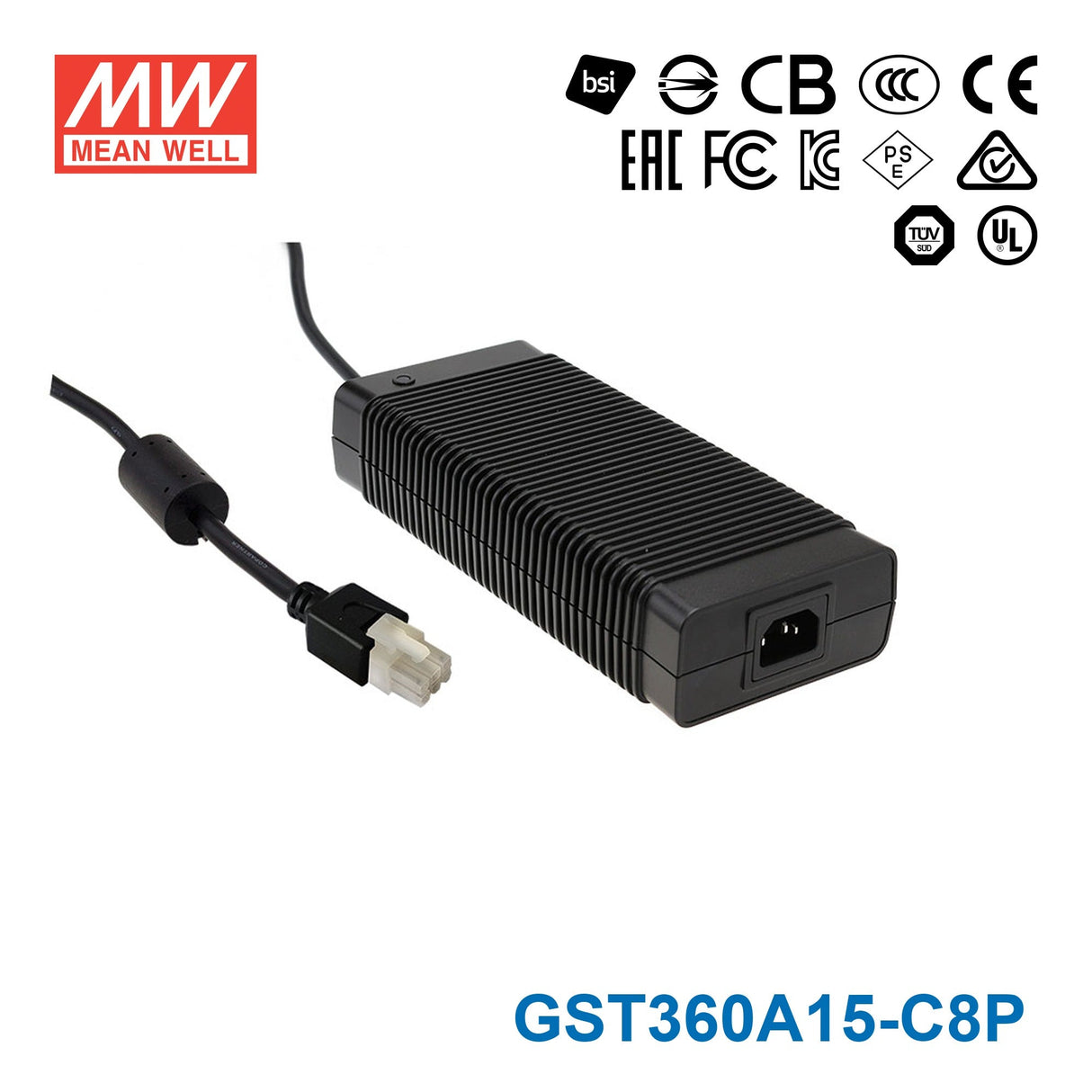

Mean Well GST360A15-C8P AC-DC Industrial Adaptor 340.5W 15V With 8 Pin Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GST360A15-C8P AC-DC Industrial Adaptor 340.5W 15V With 8 ...
Description
Description
Features
|
Universal AC input / Full range 450W peak power(3 sec.) |
| No load power consumption < 0.5W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |
| MEPS compliant |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Short circuit /Overload / Over voltage/Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Built-in active PFC function |
| Fanless design |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC 120~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~135% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2464, 16AWGx4C |
| Dimension (LxWxH) | 220x 95x 46 mm |
| Standard DC plug |
C8P: MOLEX 8 pin connector |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating340.5 Watt
-
Output Voltage15 Volt
-
Rated Current22.7 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well GST360A15-C8P?
This model provides a 15V DC output with a rated current of 22.7A. Its rated power is 340.5W, with peak power capability up to 450W for 3 seconds. That makes it suitable for higher-power industrial or commercial equipment that requires a stable 15V supply.
What type of connector does the GST360A15-C8P use?
The GST360A15-C8P uses a C8P MOLEX 8 pin connector on the DC output side. It also includes a 100cm output cable made with UL2464 16AWG 4-conductor cable. Buyers who need this model typically choose it specifically for equipment designed around that 8 pin connector format.
What input voltage range does this power adaptor support?
This adaptor accepts a universal input range of 85 to 264VAC, and it also supports 120 to 370VDC input. That wide range helps it fit global industrial and commercial power environments. It is designed as a desktop-style AC-DC adaptor with an IEC320-C14 AC inlet.
Is the GST360A15-C8P suitable for demanding industrial environments?
Yes, this model is built for industrial use with protections for short circuit, overload, over voltage, and over temperature. It also operates across a wide temperature range from -30°C to +70°C, subject to the output derating curve. Its enclosed plastic case and Class I design also support more demanding operating conditions.
Does this power supply use fan cooling?
No, the GST360A15-C8P uses a fanless design. That can be useful in applications where lower acoustic noise and reduced moving-part maintenance are preferred. It also includes an LED indicator for power-on status.
What efficiency and compliance features does this model offer?
This adaptor is rated to Energy Efficiency Level VI and meets EISA 2007 requirements. It is also listed as NRCan and MEPS compliant, with built-in active PFC. These features make it a stronger choice for buyers who need an efficient industrial desktop power adaptor.
What kinds of applications is the GST360A15-C8P commonly used for?
This model is typically considered for industrial or commercial equipment that needs a high-power 15V DC desktop adaptor with an 8 pin connector. Its 340.5W output, fanless design, and broad AC input range make it relevant for OEM and B2B environments. Compatibility should be confirmed against the required voltage, current, connector type, and approvals for the target device.
