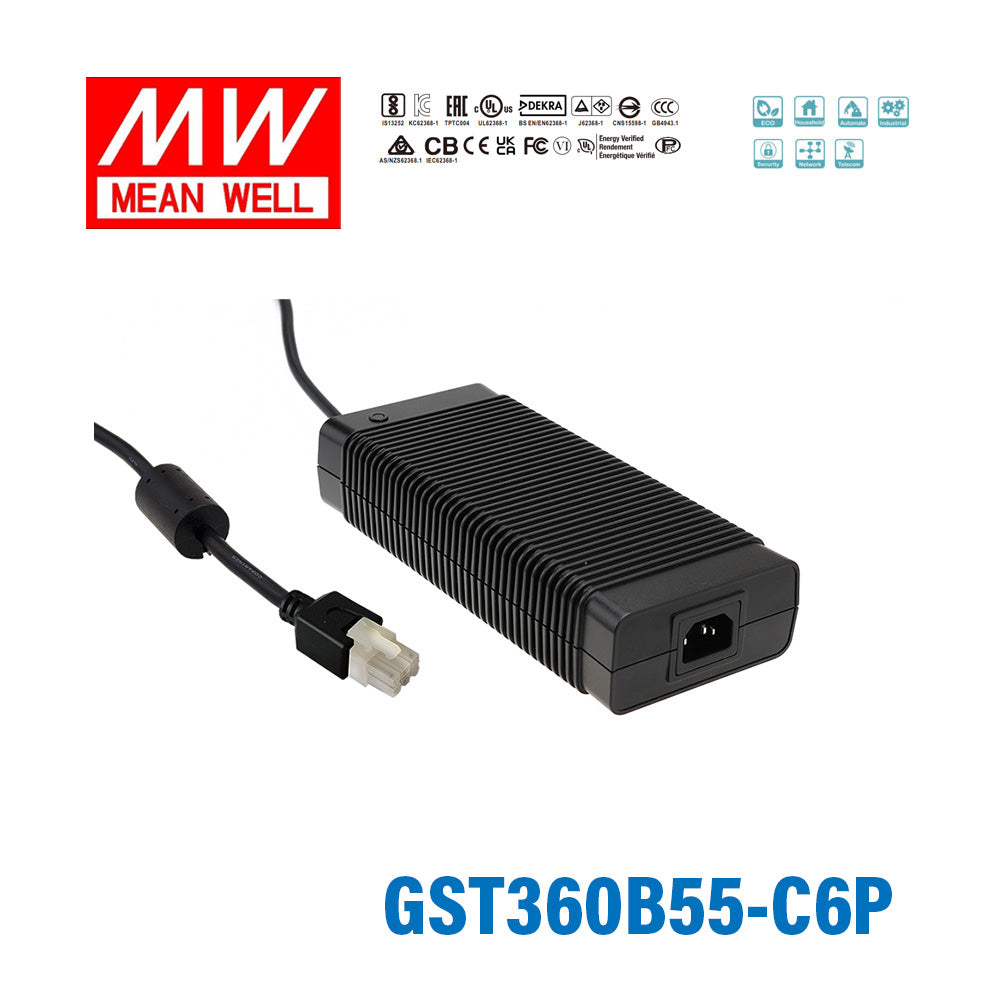

Mean Well GST360B55-C6P AC-DC Industrial Adaptor 360W 48V With 6 Pin Connector
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well GST360B55-C6P AC-DC Industrial Adaptor 360W 48V With 6 Pi...
Description
Description
Features
|
Universal AC input / Full range 450W peak power(3 sec.) |
| No load power consumption < 0.5W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant |
| MEPS compliant |
| 3 pole AC inlet IEC320-C14 |
| Class I power (with earth pin) only |
| Protections: Short circuit /Overload / Over voltage/Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Built-in active PFC function |
| Fanless design |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC 120~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~135% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 105%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2464, 16AWGx4C |
| Dimension (LxWxH) | 220x 95x 46 mm |
| Standard DC plug |
C6P: MOLEX 6 pin connector |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating360 Watt
-
Output Voltage55 Volt
-
Rated Current6.55 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight3.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well GST360B55-C6P provide?
This model is rated for 360W output with a 55V DC output and 6.55A rated current. It is the GST360B55-C6P variant, which uses a MOLEX 6 pin connector on the output side.
What kinds of applications is this power adaptor typically suited for?
This adaptor is best suited to industrial and commercial equipment that requires a high-power external AC-DC supply with a 55V output. Its desktop-style enclosed housing, fanless design, and built-in protections make it a practical option for fixed equipment in professional environments.
What input range and power features does this model support?
The GST360B55-C6P accepts universal AC input from 85 to 264VAC and also supports 120 to 370VDC input. It includes active PFC, less than 0.5W no-load power consumption, and Energy Efficiency Level VI compliance.
Can this adaptor be used in demanding temperature conditions?
This model has a specified operating temperature range of -30°C to +70°C, subject to the output derating curve. That makes it suitable for a wide range of industrial environments where ambient temperature is an important consideration.
What protection and reliability features are included?
The adaptor includes short circuit, overload, over voltage, and over temperature protection. It also has a fully enclosed plastic case, power-on LED indicator, fanless construction, and a 3-year warranty.
What connector and cable details should buyers verify for compatibility?
This version uses the C6P output option, identified as a MOLEX 6 pin connector. The output cable is specified as 100cm of UL2464, 16AWGx4C, so buyers should confirm their equipment is designed for this connector format and cable style.
