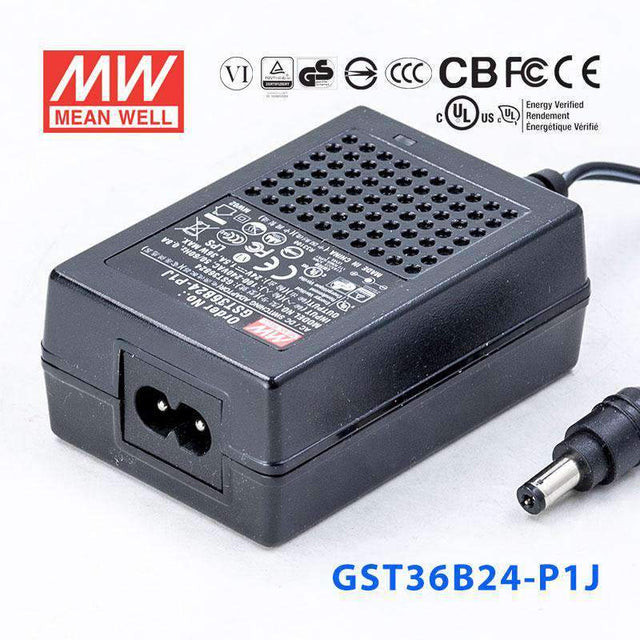

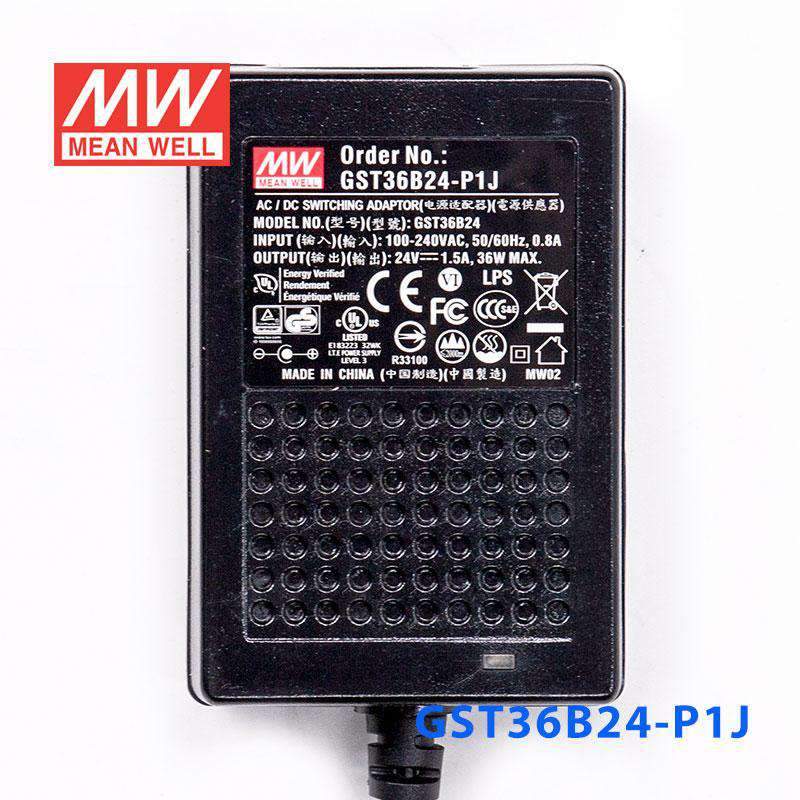

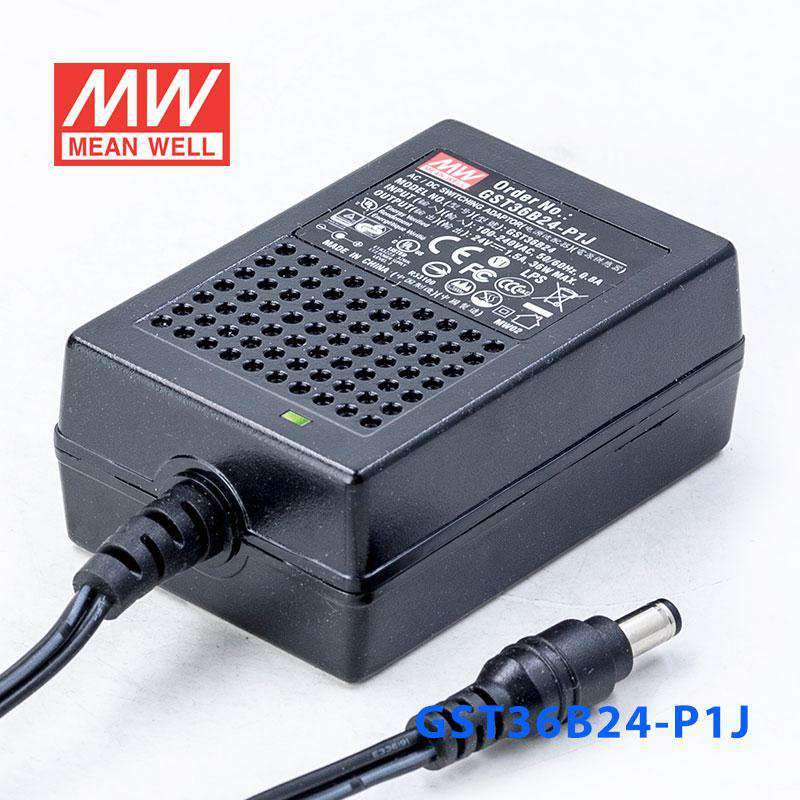

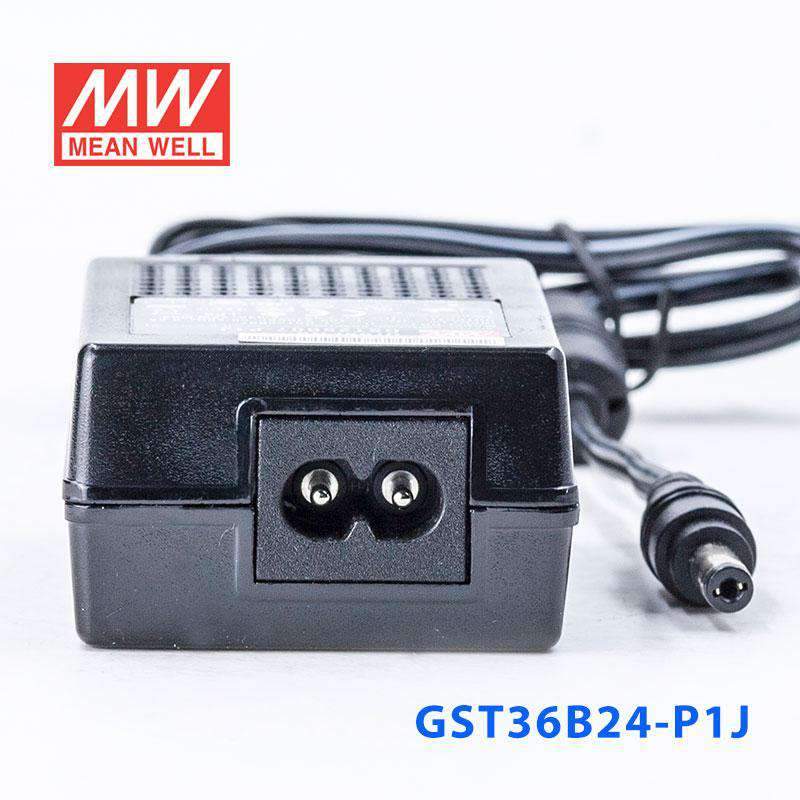

Mean Well GST36B24-P1J Power Supply 36W 24V
The GST36B24 is a 36W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: AS/NZS 60950.1 ,PSE J60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
Can I use the GST36B24-P1J to power a 24V industrial control device?
Yes, this model provides a constant 24V output and is rated for up to 1.5A. It is a fit for 24V control equipment, sensors, or small automation devices that stay within the 36W output rating.
Is the GST36B24-P1J suitable for 24V embedded or OEM electronics?
It can be suitable for embedded or OEM equipment that requires a regulated 24V constant voltage input. The available output is 36W total, with a maximum output current of 1.5A.
Can this 24V power supply run a small HMI or automation accessory?
It is intended for 24V constant-voltage loads and can support devices that draw up to 1.5A. That makes it appropriate for small automation accessories or compact 24V interface equipment within the 36W limit.
Will the GST36B24-P1J work in regions with different AC mains voltages?
Yes, the input range is 85-264VAC. That wide input range supports use across many standard AC power systems without changing the supply itself.
Is the GST36B24-P1J suitable for outdoor or harsh-environment use?
The provided specs list an operating temperature range of -30°C to +70°C, which supports a wide temperature span. However, no IP rating is listed, so the specs do not establish outdoor or water-exposed use.
