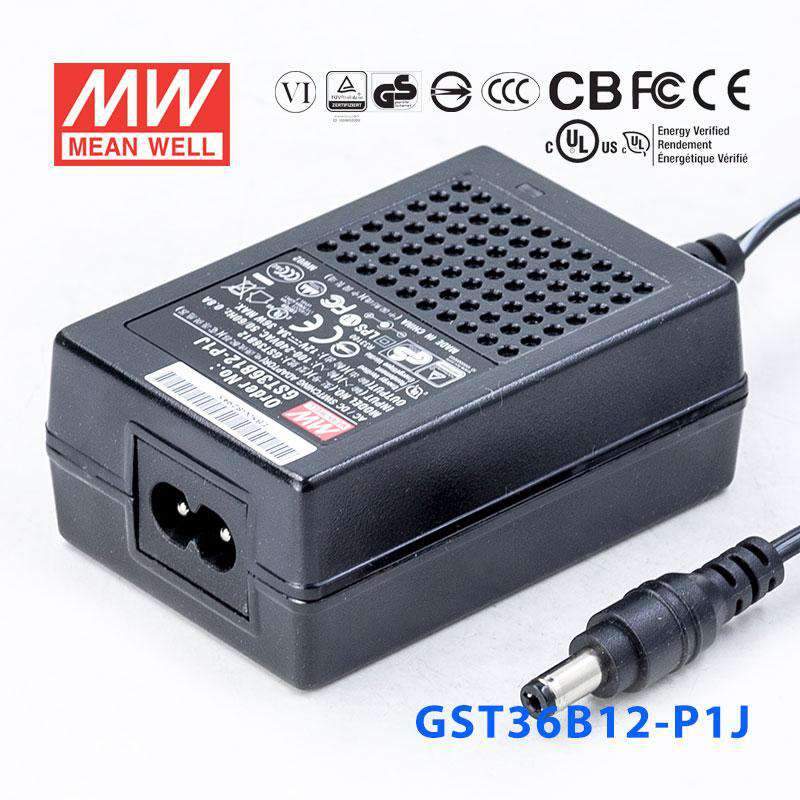

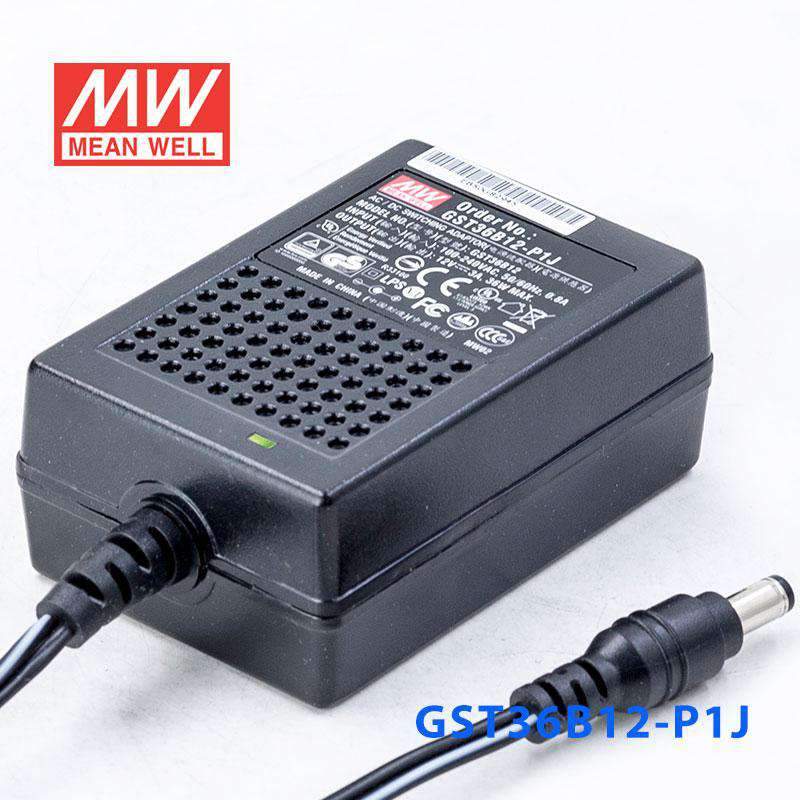

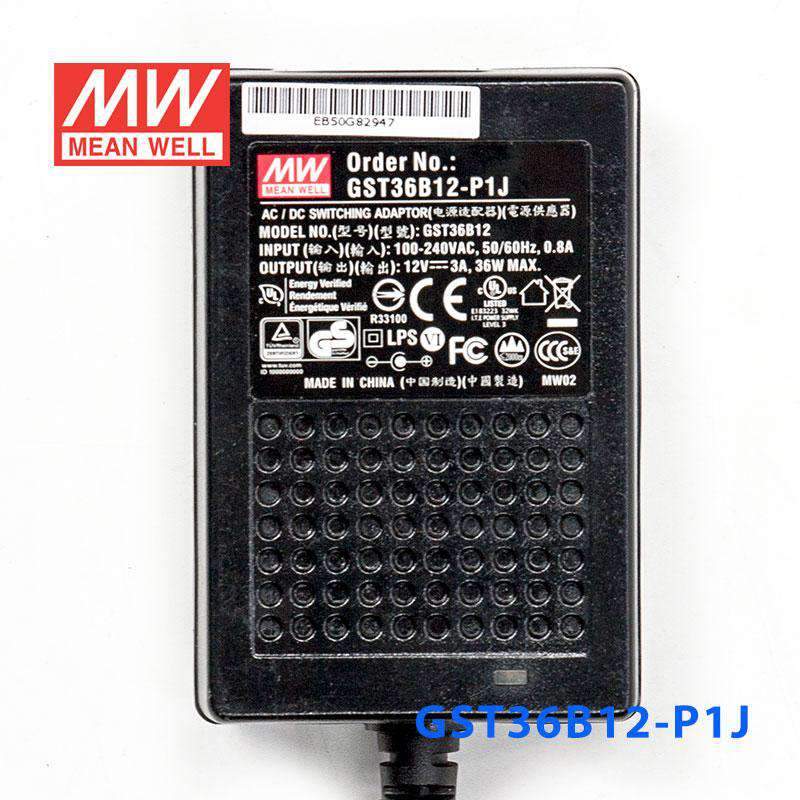

Mean Well GST36B12-P1J Power Supply 36W 12V
Description
Description
Features
| Universal AC input / Full range |
| No load power consumption < 0.075W |
| Energy Efficiency Level VI |
| Meet EISA 2007 (Energy Independence and Security Act) |
| NRCan compliant for A/U type |

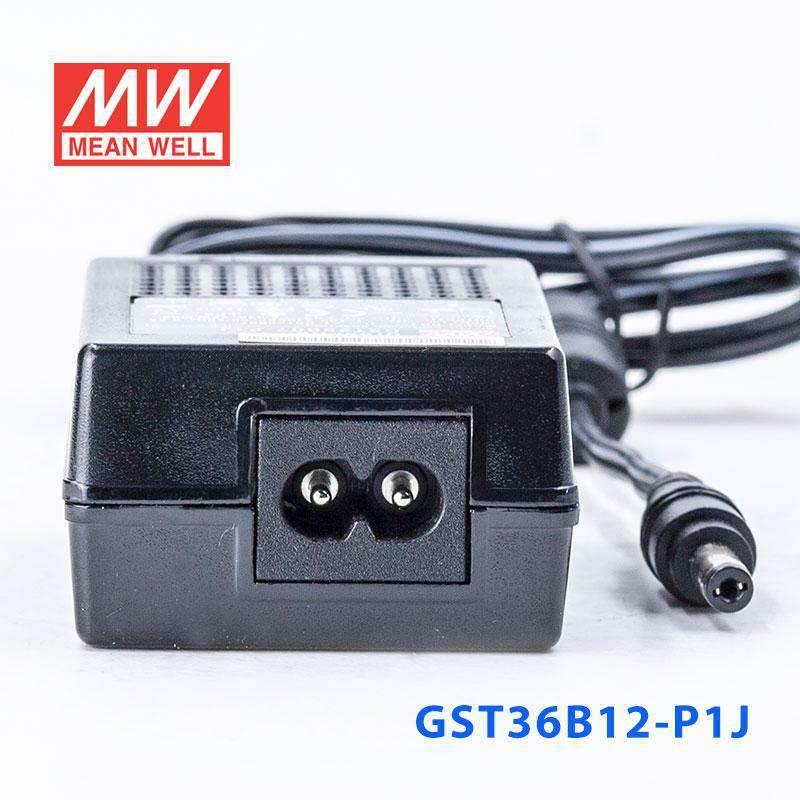

| 2 pole USA / EURO plug or IEC320-C14/C8 |
| Class II power (with earth pin) only |
| Protections: Short circuit / Overload / Over voltage |
| Fully enclosed plastic case |
| LED indicator for power on |
| Pass LPS |
| Approvals: UL / CUL / TUV / BSMI / CCC / PSE / CB / FCC / CE / RCM |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC |
| AC inrush current (max.) | Cold start, 70A at 230VAC |
| Overload protection | 110%~150% rated output voltage, hiccup mode, auto-recovery |
| Over voltage protection | 110%~140% rated output voltage, clamp by zener diode |
| Withstand voltage | I/P-O/P: 4242VDC |
| Working temperature | -40~+85°C (refer to output derating curve ) |
| Safety standards | UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1 |
| Length of output cable | 100cm of UL2468 16AWG |
| Dimension (LxWxH) | 79x 54x 33 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GST36B12-P1J for a 12V industrial controller or HMI?
Yes, it can be used with 12V industrial controllers, HMIs, and similar electronics that require constant-voltage DC input. The supply is rated for 36W at 12V with up to 3A output current.
Is the GST36B12-P1J suitable for small 12V automation loads?
It is suitable for smaller 12V automation loads that are designed for constant-voltage operation. With 12V output and 3A available, it fits modest-power control, interface, and monitoring devices within a 36W budget.
Can this model power 12V LED strips or display lighting?
Yes, it can be used for 12V LED strips or display lighting that require a constant-voltage 12V source. The connected load should stay within 36W total, which corresponds to 3A at 12V.
Would the GST36B12-P1J work for compact 12V embedded or security electronics?
It can work for compact 12V embedded devices or other low-power electronics that need regulated 12V DC. Its small 79.0 x 54.0 x 33.0 mm housing can also help in space-constrained equipment layouts.
Is the GST36B12-P1J okay for outdoor environments?
The operating temperature range is -30C to +70C, so the unit is specified for a wide temperature window. No IP rating is listed in the provided specs, so direct outdoor exposure or wet and dusty conditions should not be assumed.
