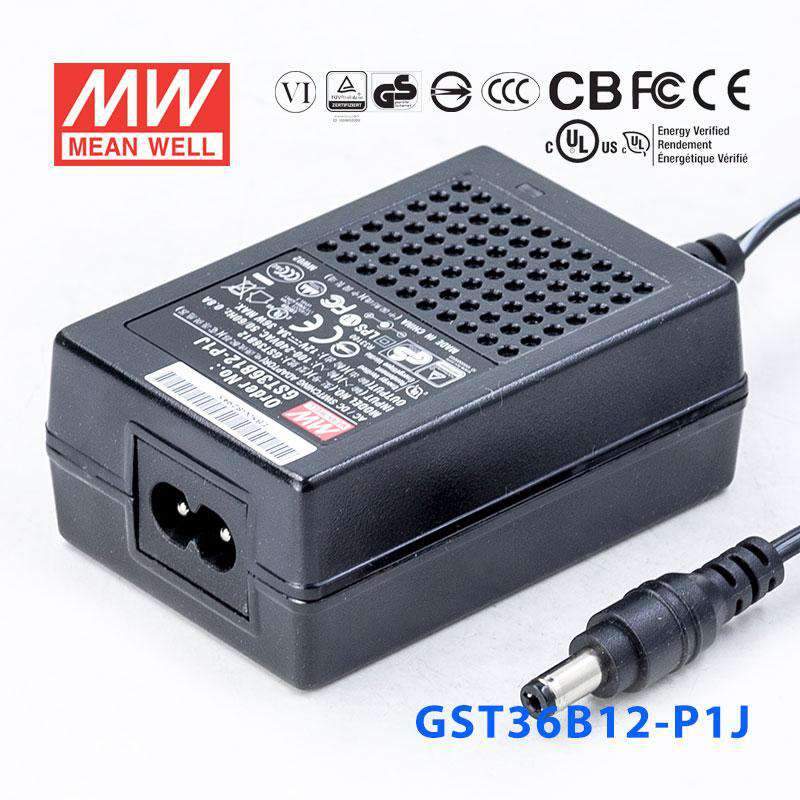

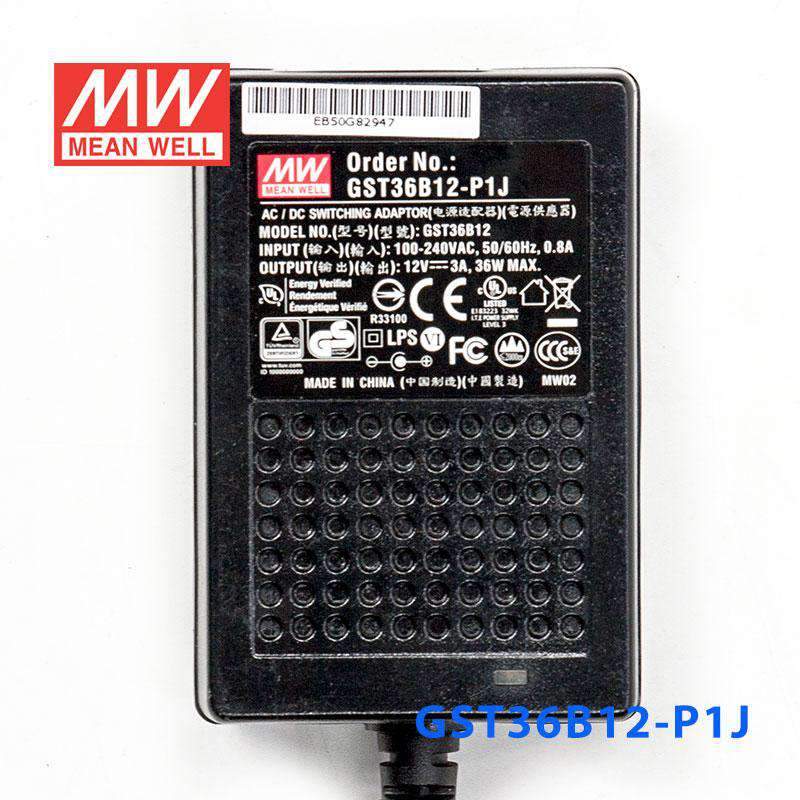

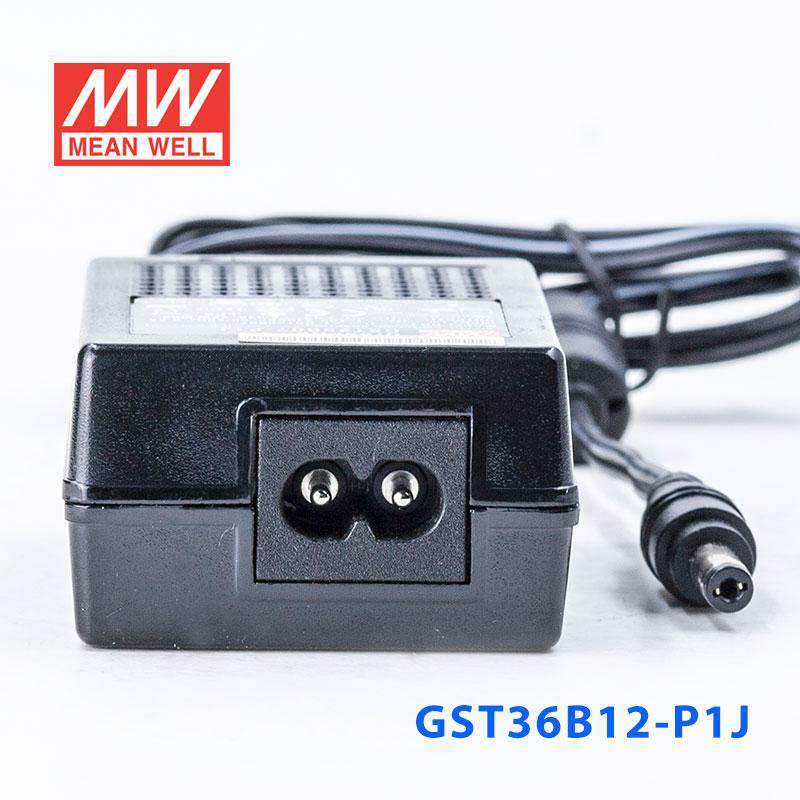

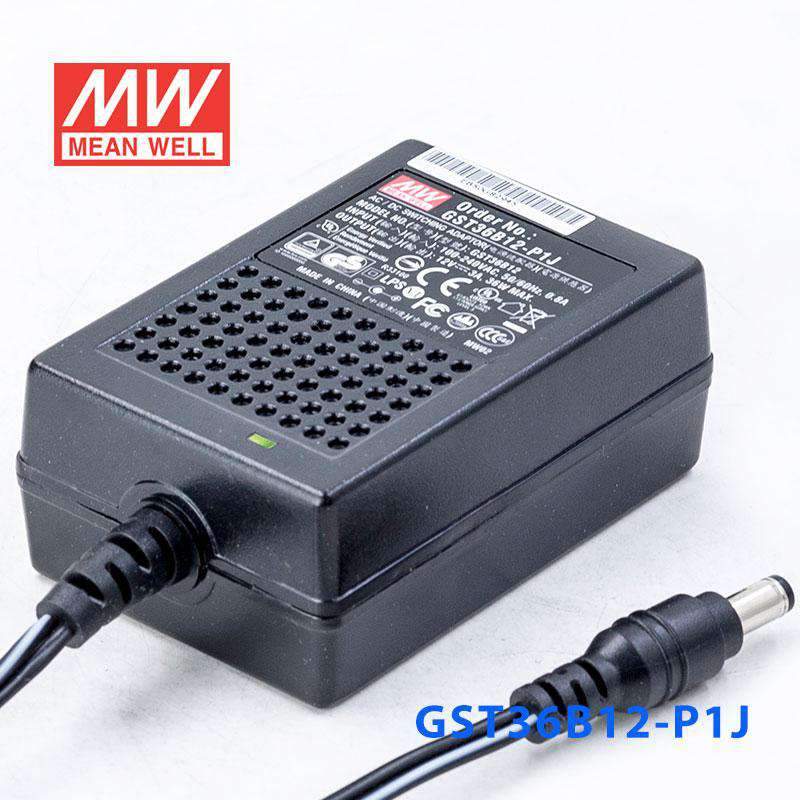

Mean Well GST36B12-P1J Power Supply 36W 12V 3A
The GST36B12 is a 36W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: AS/NZS 60950.1 ,PSE J60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
Can I use the GST36B12-P1J for a 12V industrial controller or HMI?
Yes, it can be used with 12V industrial controllers, HMIs, and similar electronics that require constant-voltage DC input. The supply is rated for 36W at 12V with up to 3A output current.
Is the GST36B12-P1J suitable for small 12V automation loads?
It is suitable for smaller 12V automation loads that are designed for constant-voltage operation. With 12V output and 3A available, it fits modest-power control, interface, and monitoring devices within a 36W budget.
Can this model power 12V LED strips or display lighting?
Yes, it can be used for 12V LED strips or display lighting that require a constant-voltage 12V source. The connected load should stay within 36W total, which corresponds to 3A at 12V.
Would the GST36B12-P1J work for compact 12V embedded or security electronics?
It can work for compact 12V embedded devices or other low-power electronics that need regulated 12V DC. Its small 79.0 x 54.0 x 33.0 mm housing can also help in space-constrained equipment layouts.
Is the GST36B12-P1J okay for outdoor environments?
The operating temperature range is -30C to +70C, so the unit is specified for a wide temperature window. No IP rating is listed in the provided specs, so direct outdoor exposure or wet and dusty conditions should not be assumed.
