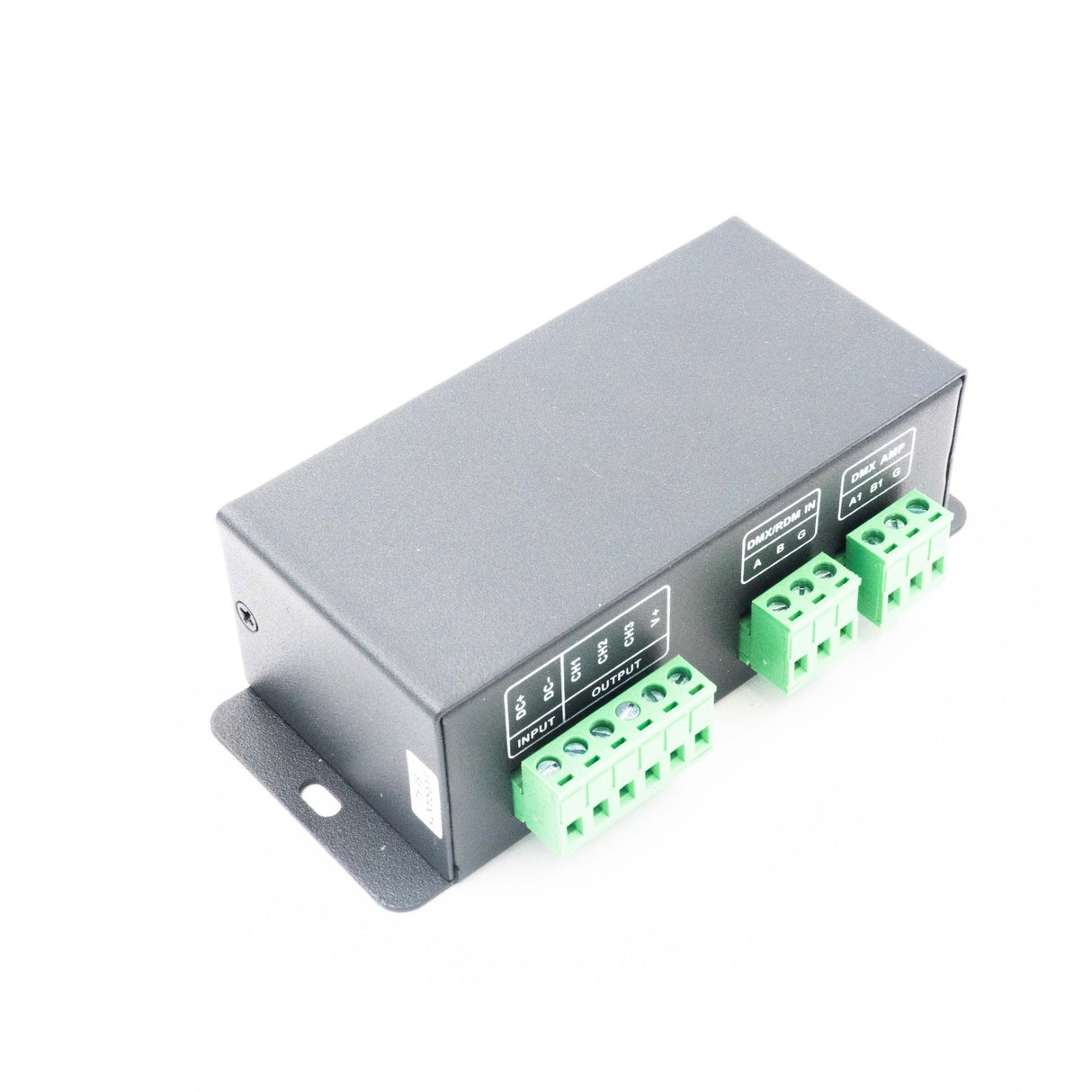

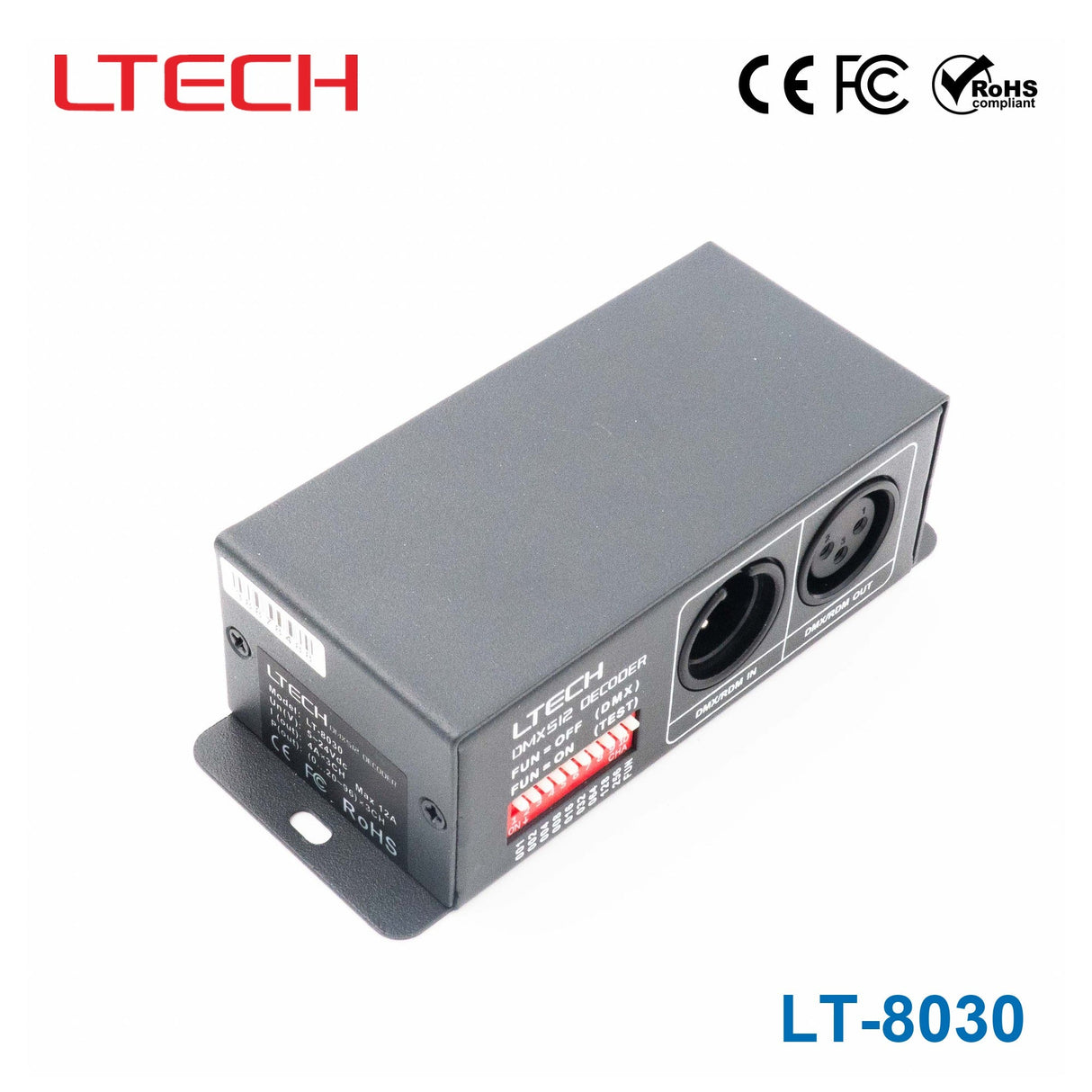

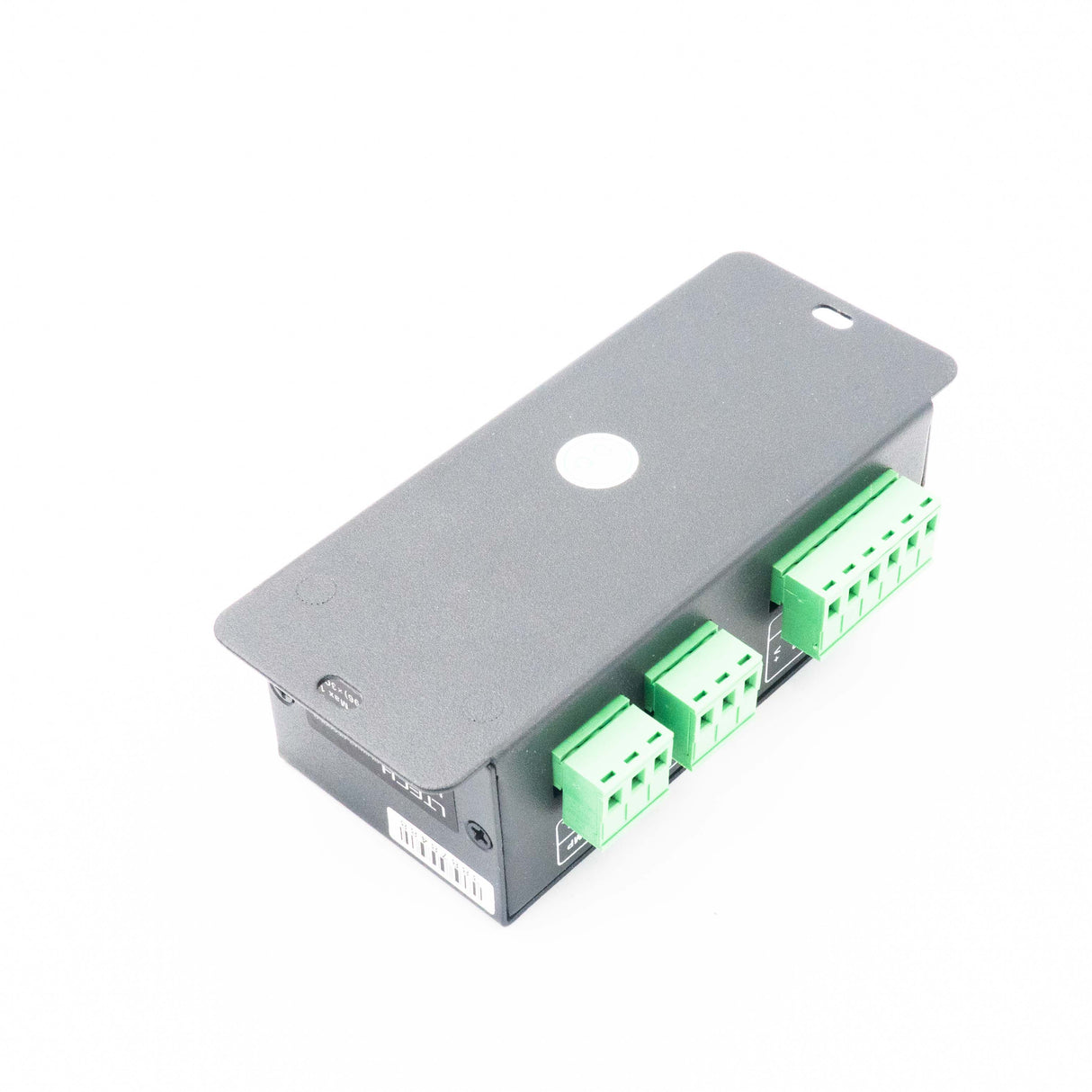

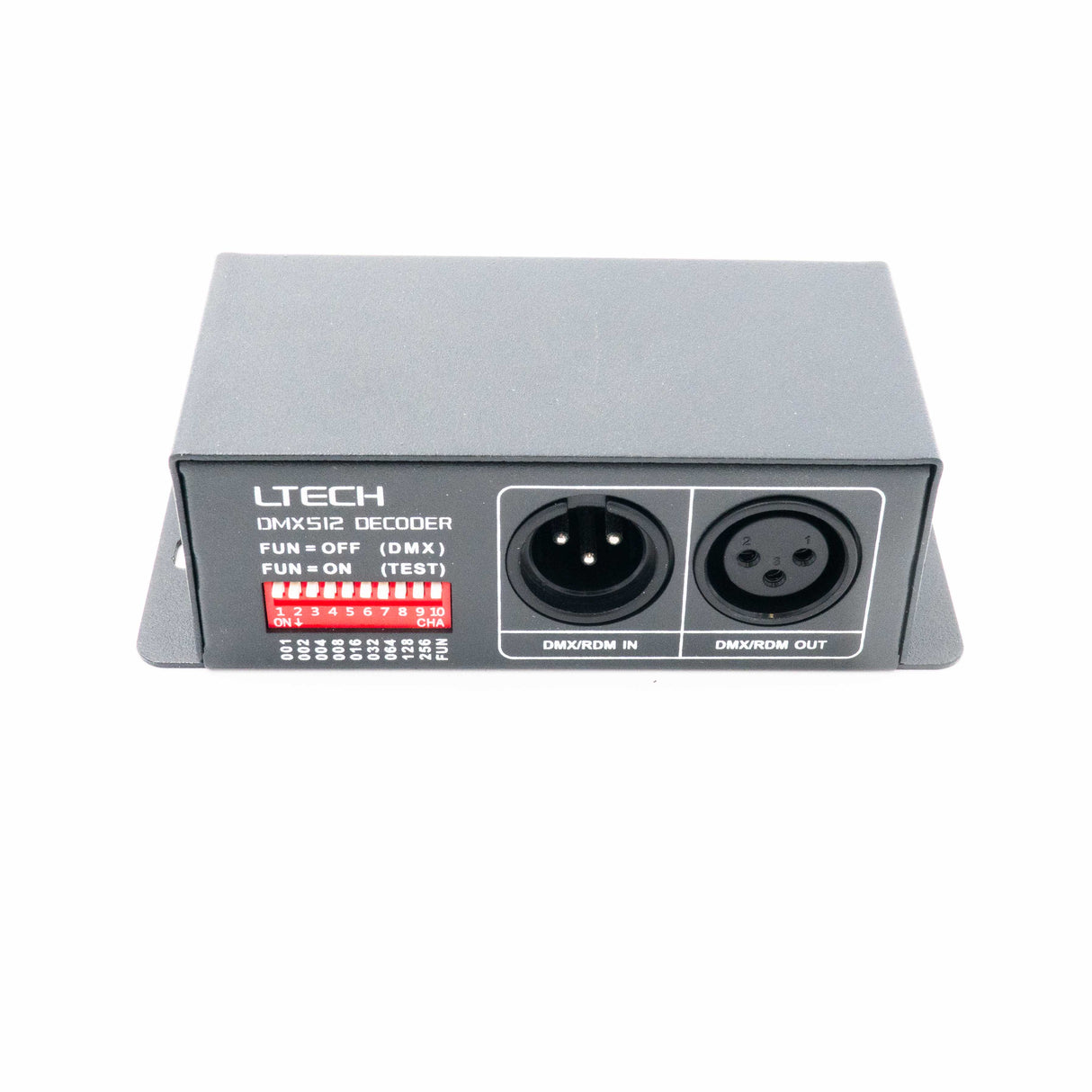

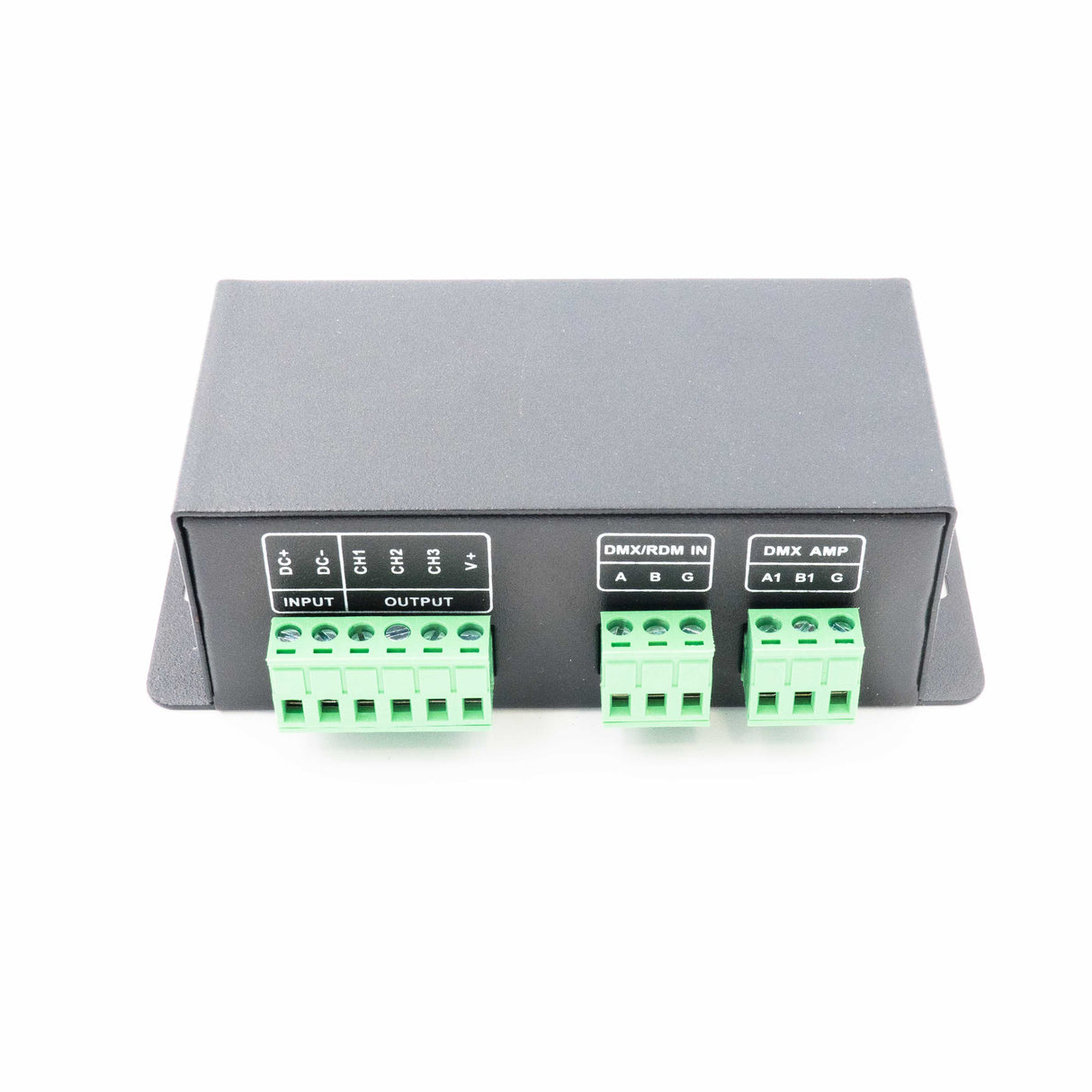

Ltech LT-8030 Constant Voltage Decoder - DMX
This 3x4A DMX controller is suitable for smaller LED installations in which the required output capacity is limited.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating288 Watt
-
Output Voltage24 Volt
-
Rated Current12 Ampere
-
Input Voltage5V~24V
-
No of Output3
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length4.92 in
-
Width2.52 in
-
Height1.57 in
-
Weight0.68 lb
::specification::
Frequently Asked Questions
What type of LED projects is the Ltech LT-8030 best suited for?
The LT-8030 is designed for smaller constant-voltage LED installations where moderate output capacity is enough. With a total power rating of 288 W at 24 V, it fits applications that need DMX-based control without the size or capacity of a larger decoder.
What are the electrical ratings of the Ltech LT-8030?
This model is rated for 24 V output, 12 A total current, and 288 W total power. The product description also identifies it as a 3x4A DMX controller, which aligns with smaller multi-channel LED control applications.
Does the LT-8030 support DMX only, or does it also support RDM?
The LT-8030 supports both DMX and RDM dimming control. That makes it suitable for projects that require standard DMX control while also needing compatibility with RDM-capable systems.
Is the LT-8030 a constant-voltage or constant-current decoder?
The LT-8030 is a constant-voltage decoder. It is specified for 24 V output, so it should be used in applications built around 24 V constant-voltage LED products and control systems.
Can the LT-8030 be used in demanding temperature conditions?
This model is rated for operation from -30 C to 65 C. That wide operating range makes it appropriate for environments that experience significant temperature variation, as long as the rest of the system is specified for the same conditions.
What warranty coverage comes with the Ltech LT-8030?
The LT-8030 includes a 5-year warranty period. For commercial buyers, that longer warranty can be useful when evaluating lifecycle cost and support expectations for LED control components.
