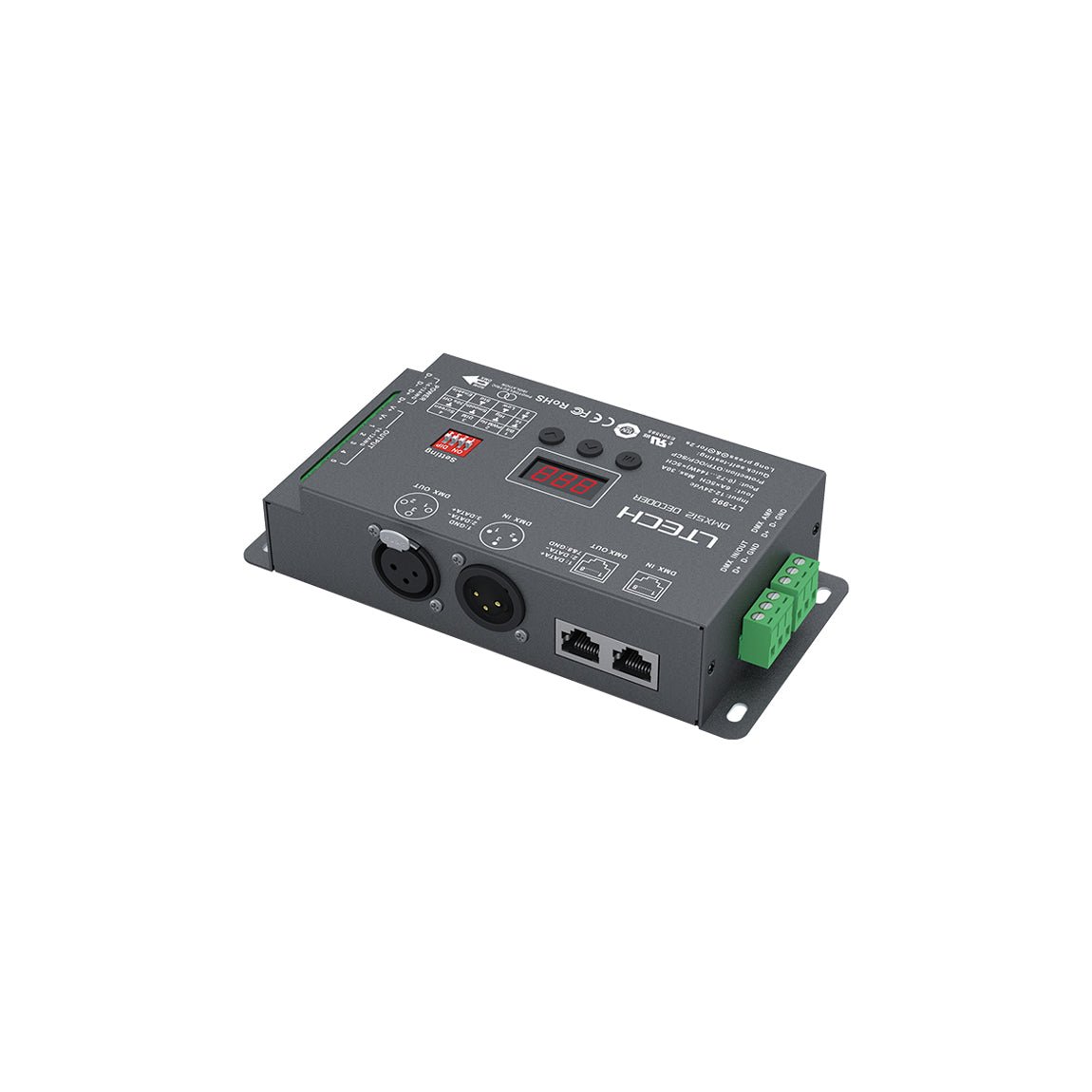

Ltech LT-995 Constant Voltage Decoder - DMX/RDM

$148.39 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

LTech LT-995 Product Introduction

1. Designed with 5 channels output, and Max. 6A current per channel, up to 720W output power.

2. Easy operation with digital display and the touch buttons.

3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45, green terminal.

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

5. With shortcut protection and over load protection, as well as warning function when fault.

6. With fast self-testing function.

7. High/low PWM frequency for optional

8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.

Specifications

  • Brand
    Ltech
  • Series
    Ltech DMX Series
  • Power Rating
    720 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    30 Ampere
  • Input Voltage
    12V~24V
  • No of Output
    5
  • Dimming Control
    DMX,RDM Signal
  • Standards Met
    CE,FCC,ROHS,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~65°C
  • Warranty
    5 Year
  • Length
    6.65 in
  • Width
    3.15 in
  • Height
    1.54 in
  • Weight
    1.21 lb

File Downloads

::specification::
