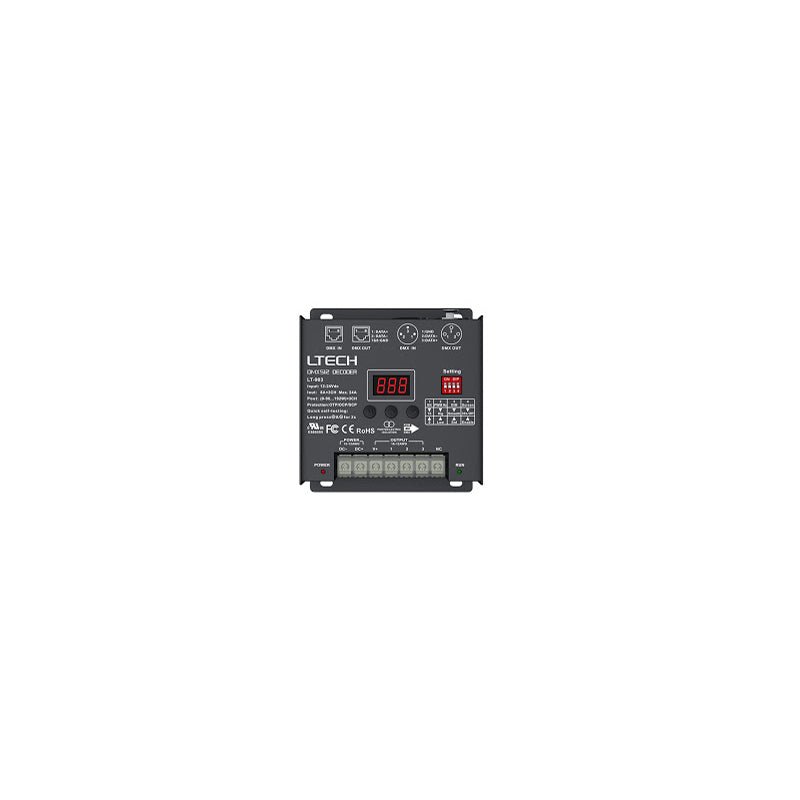

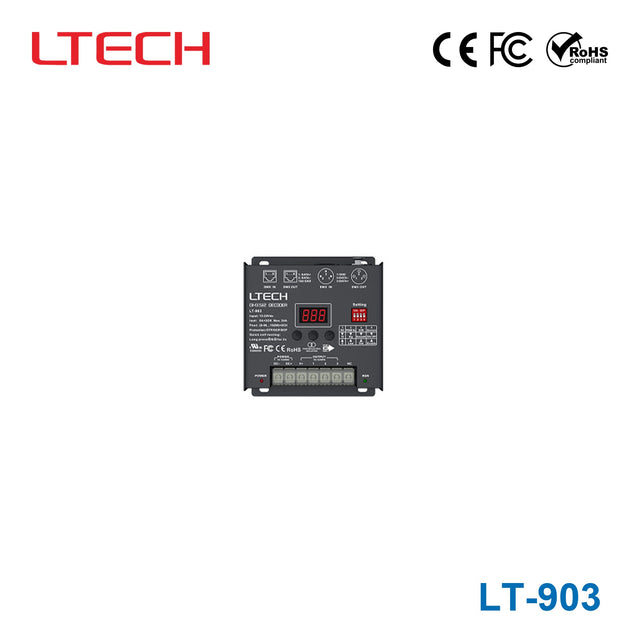

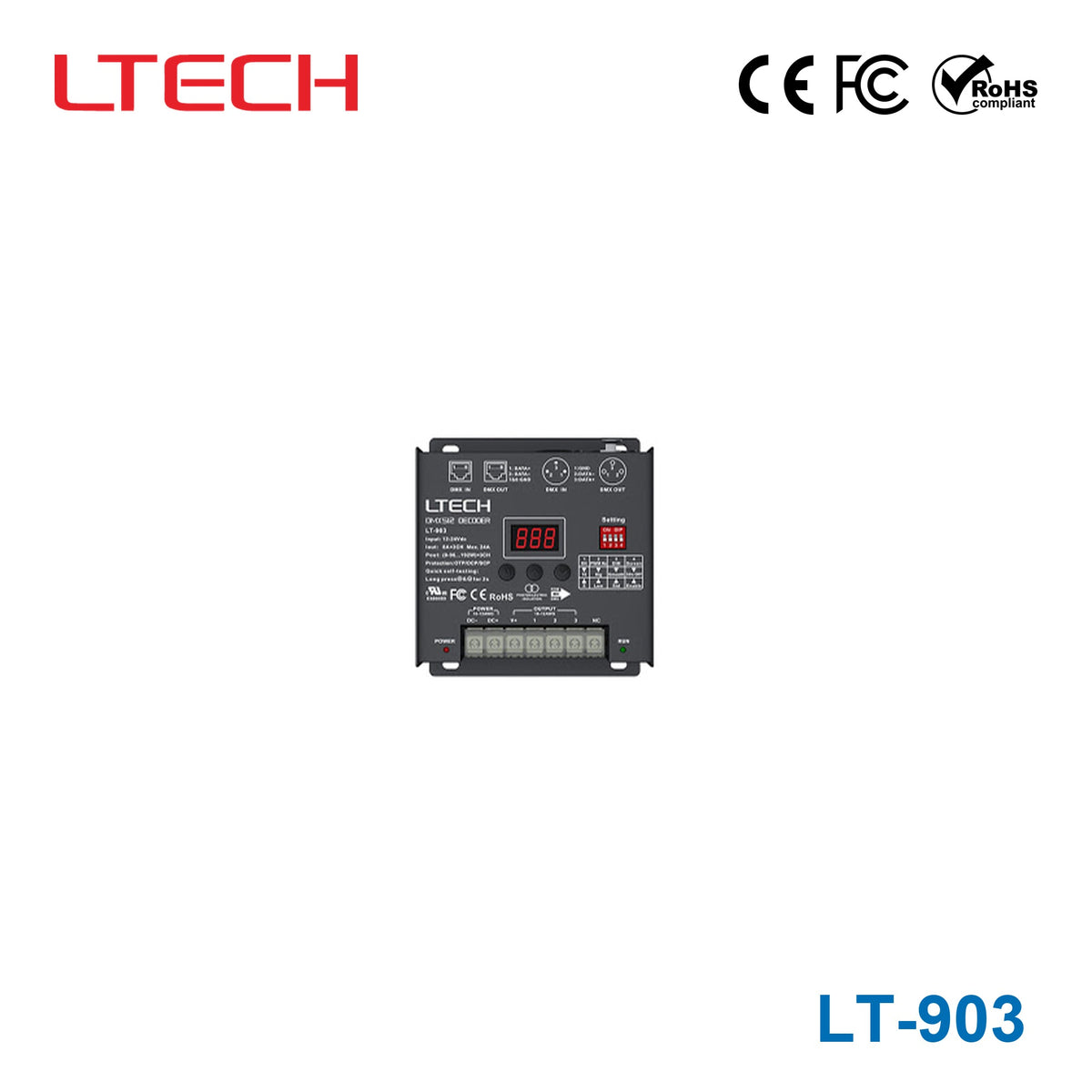

Ltech LT-903 Constant Voltage Decoder - DMX/RDM
Description
Description
Ltech 3CH CV DMX Decoder LT-903-DIP CV DMX512 Decoder
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Specifications
Specifications
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating576 Watt
-
Output Voltage24 Volt
-
Rated Current24 Ampere
-
Input Voltage12V~24V
-
No of Output3
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length4.8 in
-
Width4.33 in
-
Height1.46 in
-
Weight1.21 lb
