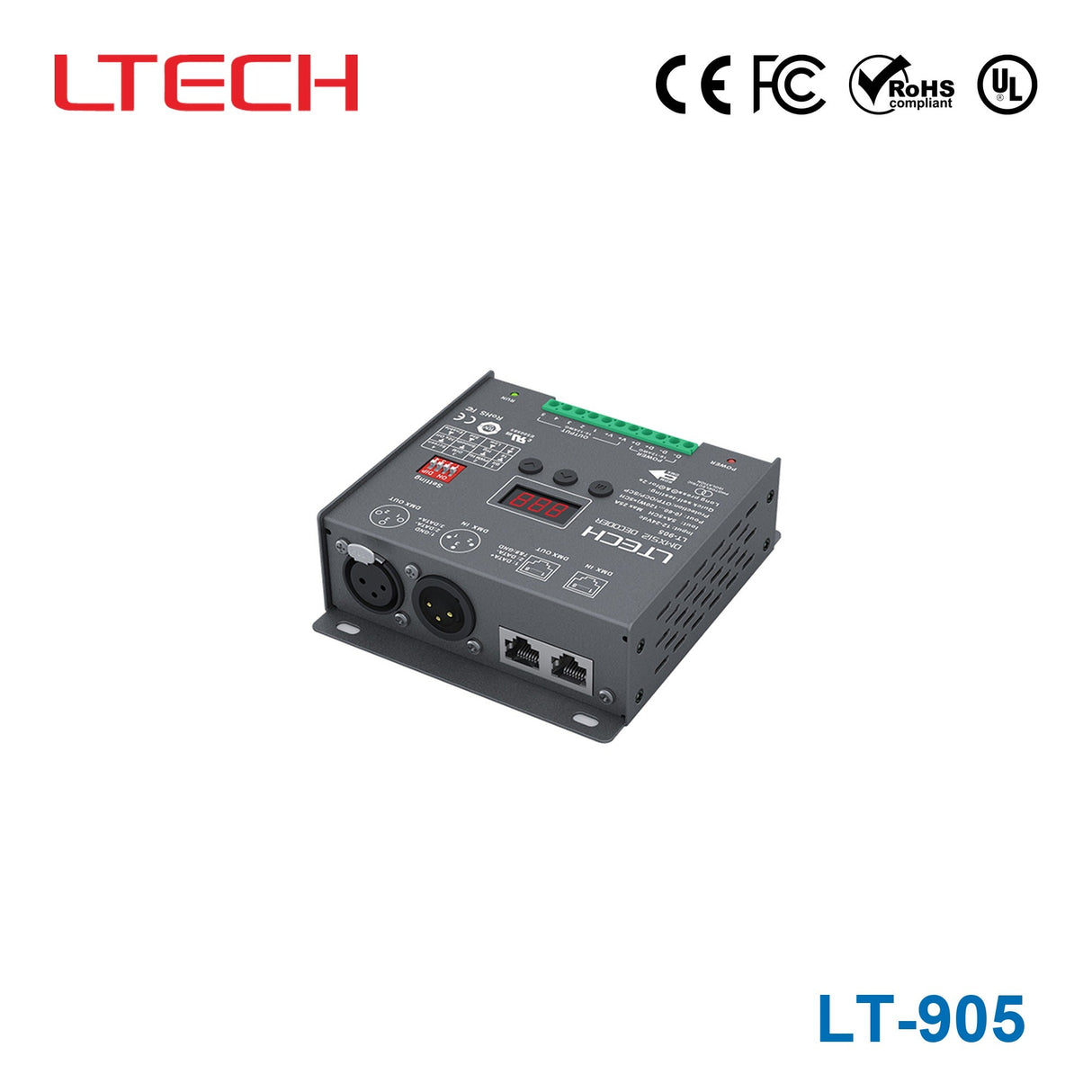

Ltech LT-905 Constant Voltage Decoder - DMX/RDM
LTech LT-905 Product Introduction
1. Designed with 5 channels output, and Max. 5A current per channel, up to 600W output power.
2. Easy operation with digital display and the touch buttons.
3. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition,etc.
5. With shortcut protection and over load protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
Input Voltage12V~24V
-
No of Output5
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length4.8 in
-
Width4.33 in
-
Height1.46 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
What type of product is the Ltech LT-905?
The Ltech LT-905 is a constant-voltage decoder designed for DMX and RDM lighting control systems. It provides 5 output channels with up to 5A per channel and a maximum output power of 600W.
Is the LT-905 suitable for commercial LED control applications?
Yes. The LT-905 is built for multi-channel constant-voltage LED control in DMX-based environments where centralized control and remote device management matter. Its 5-channel design, RDM support, and 600W power capacity make it relevant for more demanding professional and B2B lighting projects.
What control protocols does the LT-905 support?
This model supports both DMX and RDM. RDM adds remote management functions such as parameter browsing and setting, DMX address setting, and equipment identification through an RDM master console.
How is the LT-905 different from a basic DMX decoder?
Compared with a basic DMX-only decoder, the LT-905 adds RDM remote management capability for easier device administration. It also includes a digital display, touch-button operation, self-testing, selectable PWM frequency, and selectable 16-bit or 8-bit grey levels.
What are the main electrical ratings of the LT-905?
The LT-905 is rated for 24V output, 25A total current, and up to 600W output power. It uses a 5-channel output design, with a maximum of 5A available per channel.
Can the LT-905 be used in demanding temperature conditions?
The specified operating temperature range is -30°C to 65°C. That makes it suitable for a broad range of indoor and controlled-environment commercial applications where equipment may be exposed to low or elevated ambient temperatures.
Does the LT-905 include protection and fault indication features?
Yes. The LT-905 includes shortcut protection, overload protection, and a warning function when a fault occurs. These features help support safer operation in professional lighting control environments.
What kind of dimming performance options does the LT-905 offer?
The LT-905 offers selectable high or low PWM frequency and selectable 16-bit or 8-bit grey levels. That gives buyers flexibility when choosing between finer dimming resolution and standard control behavior for different project requirements.
