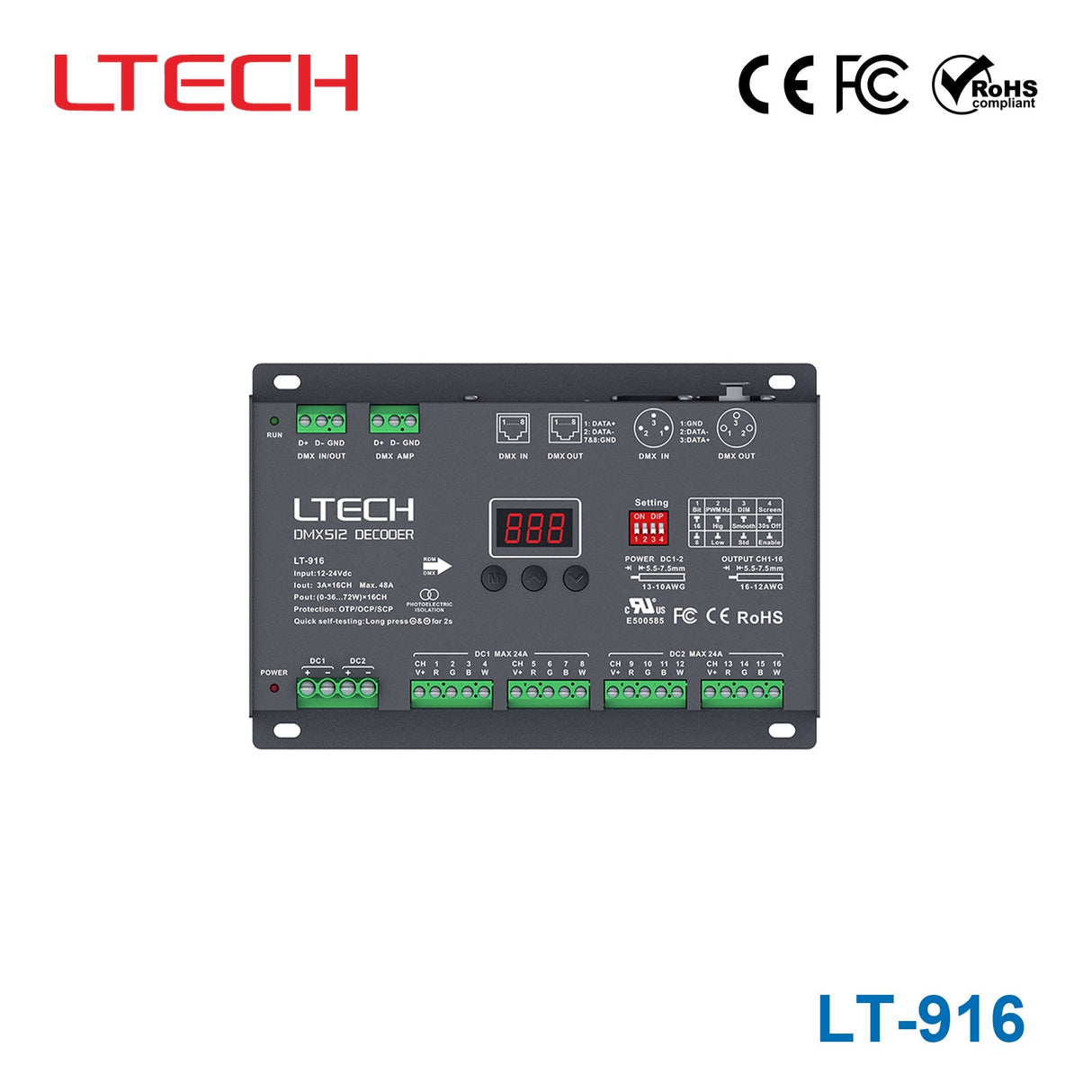

Ltech LT-916 Constant Voltage Decoder - DMX/RDM
Designed for Hi-power multiple channels application, 16 channels output, and
Max. 3A current per channel, up to 1152W output power.
- Easy operation with OLED screen and touch buttons.
- 4 kinds of mode optional: single color, color temperature, RGB, RGBW.
- Support 3 kinds of DMX ports with signal isolation function: 5-pin XLR, RJ45 and
green terminal (with signal amplifier function).
- With RDM remote management protocol, the operations can be completed via the
RDM master console, such as parameters browsing & setting, DMX address
setting, equipment recognition, etc.
- With photoelectric isolation function.
- With short circuit protection and over current protection, as well as warning
function when fault.
- With fast self-testing function.
- 16bit (65536 levels) / 8bit (256 levels) grey level optional.
- Multiple dimming curve (0.1~9.9) optional.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating1152 Watt
-
Output Voltage24 Volt
-
Rated Current48 Ampere
-
Input Voltage12V~24V
-
No of Output16
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length7.09 in
-
Width4.8 in
-
Height1.54 in
-
Weight1.61 lb
::specification::
Frequently Asked Questions
What is the LT-916 used for?
The Ltech LT-916 is a constant voltage DMX/RDM decoder designed for high-power, multi-channel LED control projects. It is built for applications that need up to 16 output channels and supports single color, color temperature, RGB, and RGBW control modes.
How much output capacity does the LT-916 provide?
This model supports up to 1152W total output power at 24V DC. It provides 16 channels with a maximum of 3A per channel, making it suitable for larger constant voltage lighting zones that need many independently controlled outputs.
Does the LT-916 support both DMX and RDM control?
Yes. The LT-916 supports DMX control and also includes RDM remote management protocol support. That allows compatible RDM master consoles to handle functions such as parameter viewing, setting adjustments, DMX address setting, and device identification.
What lighting control modes are available on this decoder?
The LT-916 offers four selectable modes: single color, color temperature, RGB, and RGBW. This gives it flexibility for commercial and architectural LED projects that use different constant voltage fixture types across the same general control platform.
Is the LT-916 a good fit for demanding commercial environments?
It is designed for demanding use cases with features such as photoelectric isolation, short circuit protection, over current protection, and fault warnings. The operating temperature range of -30°C to 65°C also makes it suitable for environments where wider temperature tolerance matters.
What makes the LT-916 different from simpler DMX decoders?
Compared with basic decoders, the LT-916 stands out with 16 output channels, support for both 8-bit and 16-bit dimming resolution, selectable dimming curves, and RDM remote management. It also includes an OLED screen with touch buttons for local operation and fast self-testing for easier device management.
